diameter of minimum 1,5 mm². Speak to
your local Service Centre. The connection
cable may only be replaced by a qualified
electrician.
WARNING!
All electrical connections must be made
by a qualified electrician.
CAUTION!
Connections via contact plugs are
forbidden.
CAUTION!
Do not drill or solder the wire ends. It is
forbidden.

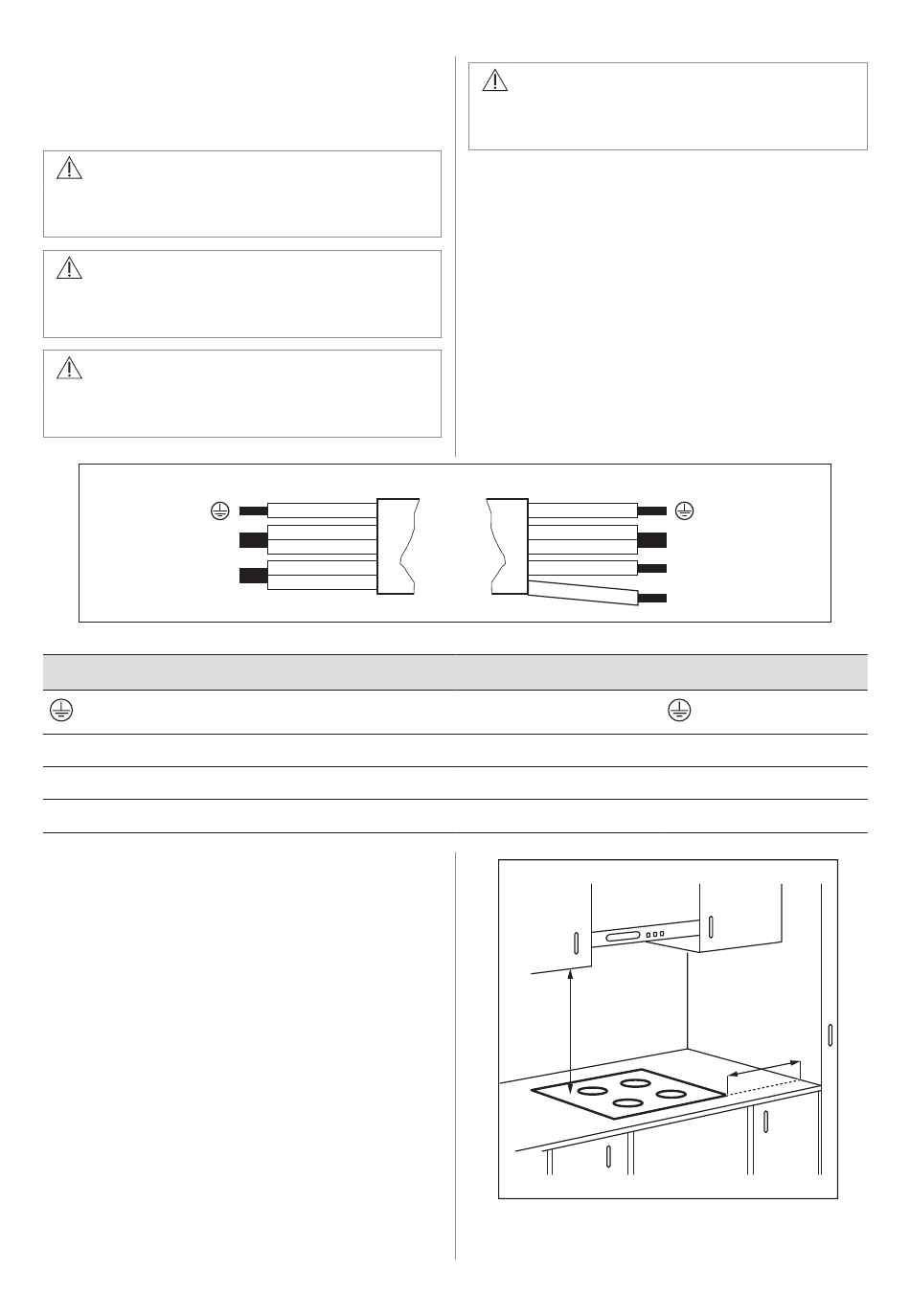

N
L
One-phase connection: 220 - 240 V~
N
L
3.4 Assembly
If you install the hob under a hood, please
see the installation instructions of the hood
for the minimum distance between the
appliances.
220-240 V~
Green - yellow
Blue and blue
Black and brown
CAUTION!
Do not connect the cable without cable
end sleeve.
One-phase connection
1. Remove the cable end sleeve from black
and brown wires.
2. Remove an insulation of the brown and
black cable ends.
3. Merge the black and brown cable ends.
4. Apply a new wire end sleeve on the
common cable end (special tool
required).
Cable cross section 2 x 1,5 mm²
400V 2~N
Two-phase connection: 400 V 2 ~ N
Green - yellow
Blue and blue
Black
Brown
min.
500mm
N
L1
L2
N
L1
L2
min.
50mm
