Function and features
The passive ClassicLine module serves as splitter box for the connec-
tion of intelligent sensors/actuators and need not be addressed.

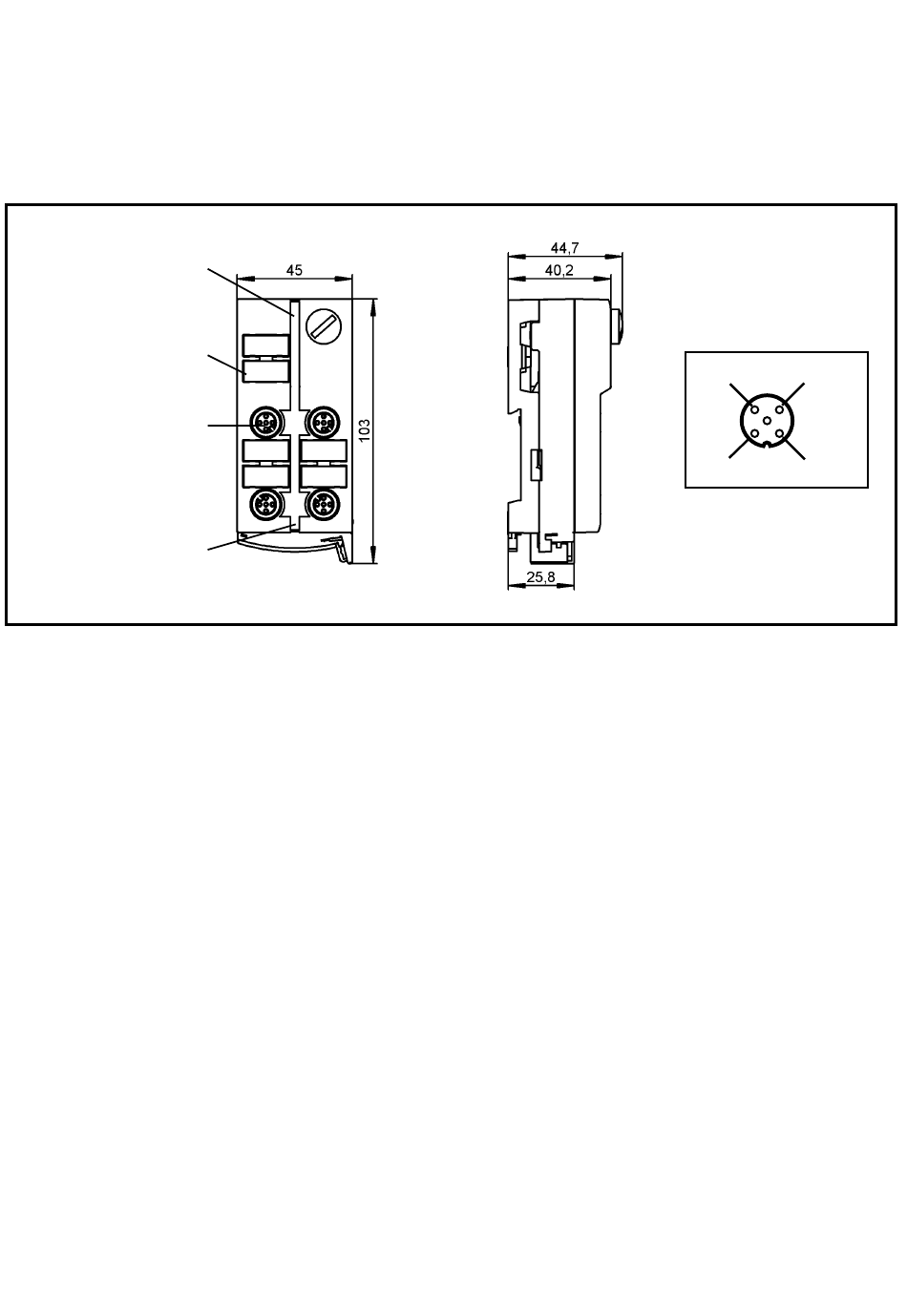

Operating and display elements
LED PWR
labels
4 M12 sockets
LED AUX
Montage
Notes on mounting from page 8.
Electrical connection
Connect the plugs of the sensors / actuators to the M12 sockets.
To ensure the protection rating IP 67 you must
• cover the unused sockets with protective caps (E73004)*, tightening
torque 0.6...0.8 Nm.
• use the flat cable end seal (E70413)* if the module is at the end of
the cable line.
• use the flat cable blank (E70299)* if the black flat cable is not used.
*) to be ordered separately
4
AS-i -
24 V
3
4
2
1
0 V
AS-i +
