Grading Procedure

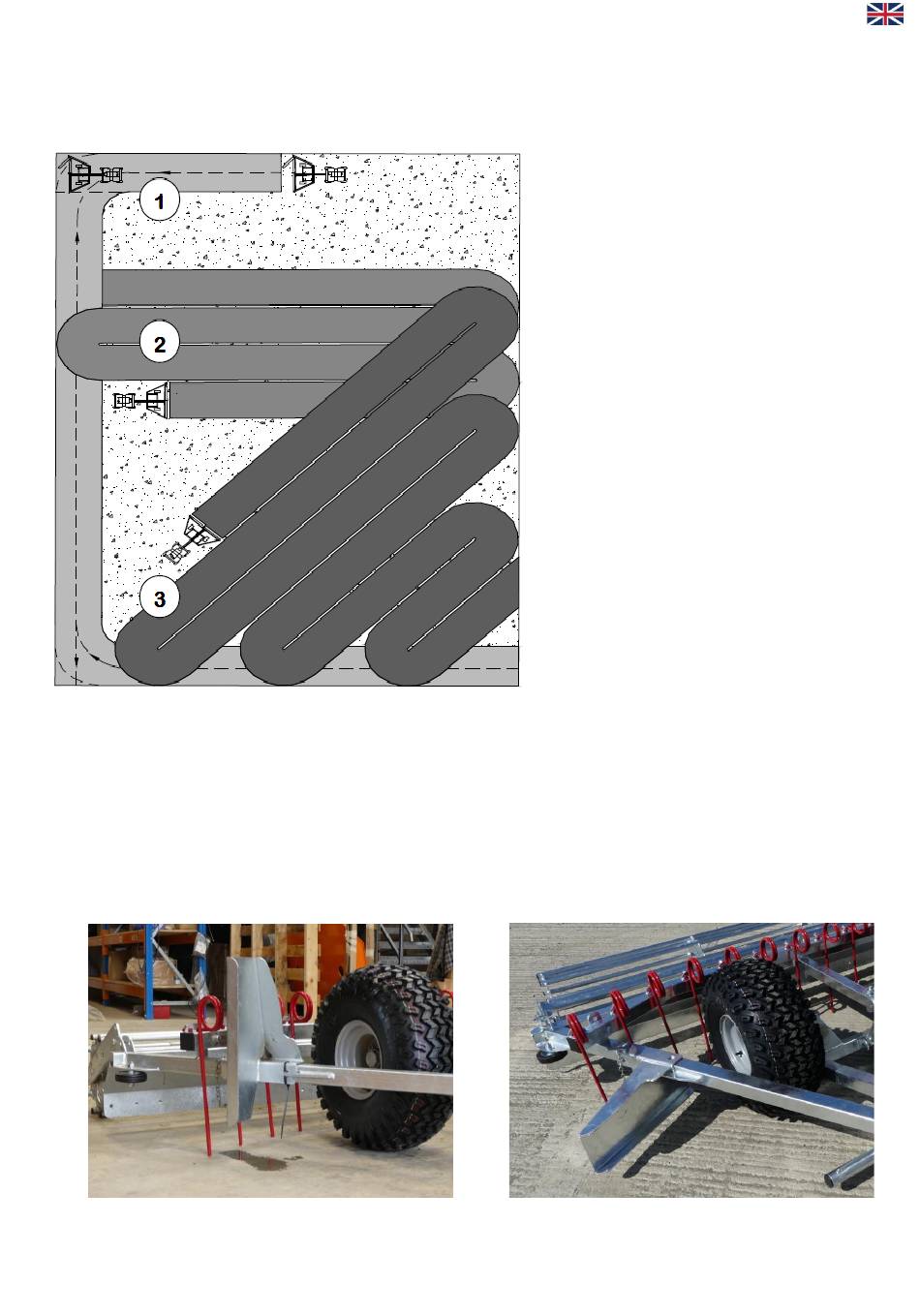

There are three main parts to the grading process as shown below:
1 Perimeter Grading
The edge material of the arena should always be levelled first upon entering the site, and is extremely important in preventing the material
becoming banked around the perimeter of the arena.
1.
Your machine will have the perimeter blade attached to
the main frame on the side as shown below.
3.
Slide the pin back into place, ensuring the blade is secure.
2.
With the machine in transport mode remove steel pin and turn the
blade to a 90-degree angle (see below) making sure the pin holes
are aligned. The perimeter blade can also be used on the left-hand
side of the machine.
6
