Danfoss TS710-V2 Installationsanleitung Seite 19

Installation Guide

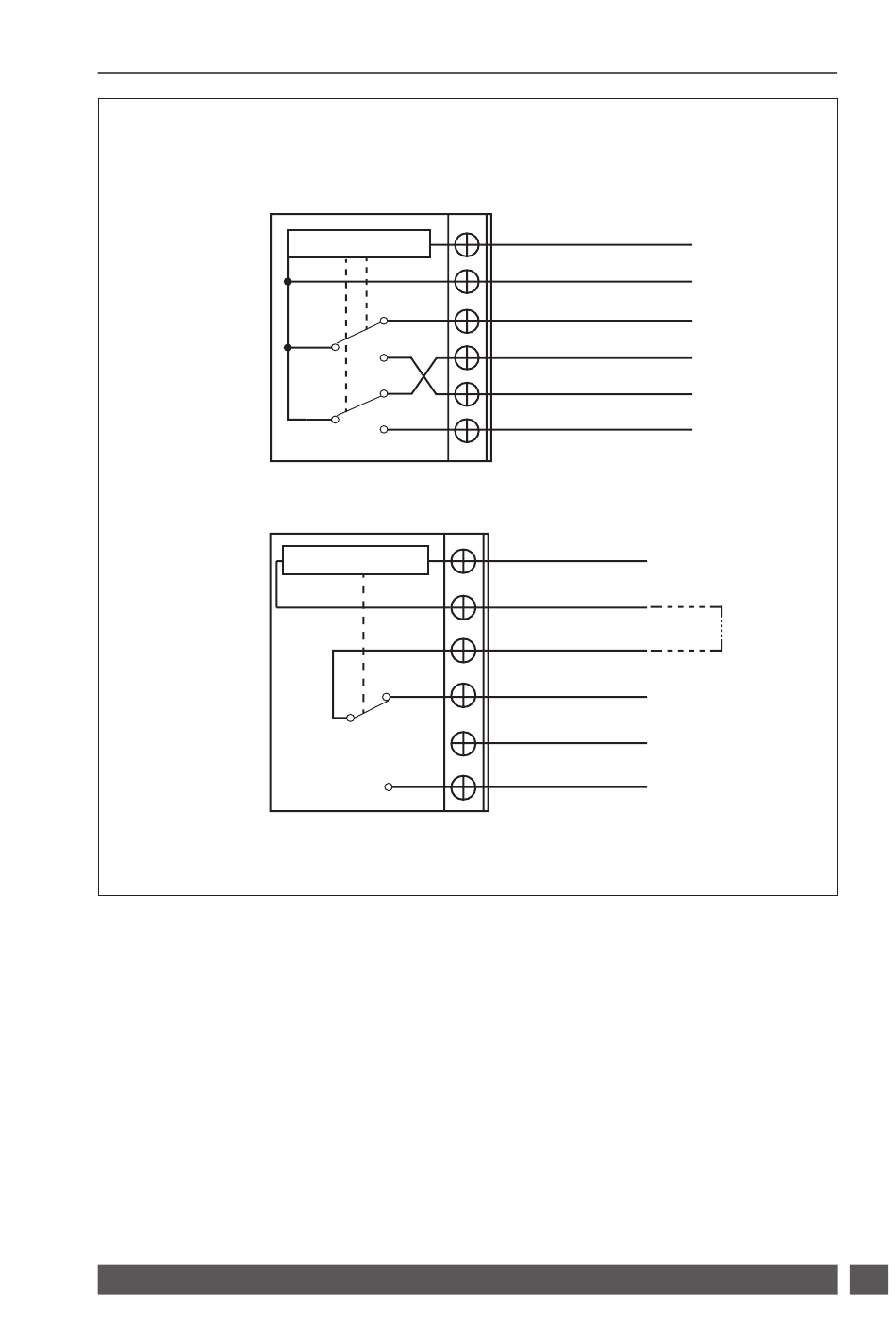

Fig. 5
FP720 - V2
TS710 - V2
Danfoss Climate Solutions
ELECTRONICS
N/C
N/O
N/C
N/O
ELECTRONICS
N/C
N/O
N
L- 230 V ~
1- OFF (DHW)
2- OFF (HTG)
3- ON (HTG/DHW)
4- ON (HTG)
N
L- 230 V ~
1- COM
2- OFF
3
4- ON
Link for
230v
switching
no link for
volt free
switching
19
