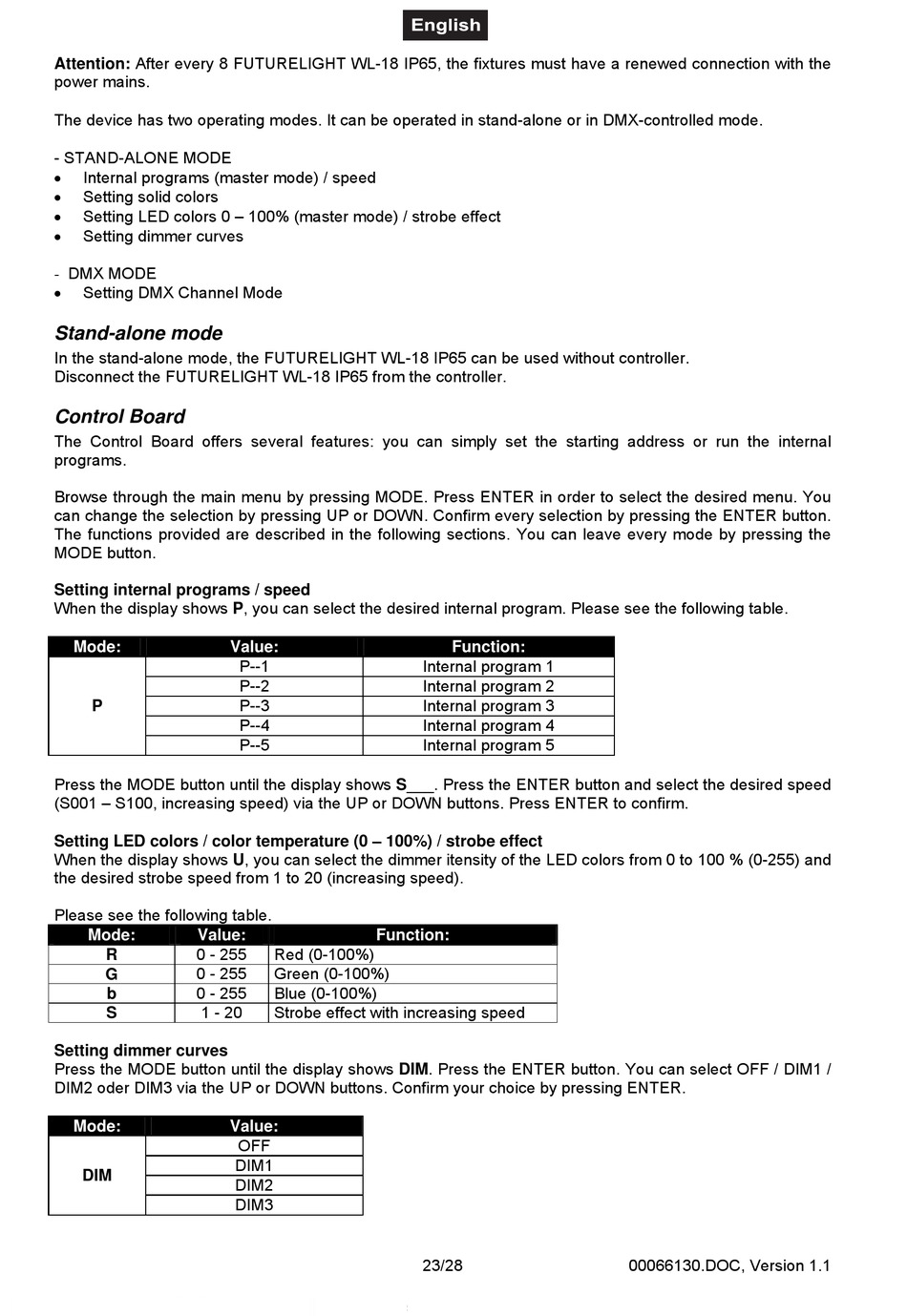

Attention: After every 8 FUTURELIGHT WL-18 IP65, the fixtures must have a renewed connection with the
power mains.
The device has two operating modes. It can be operated in stand-alone or in DMX-controlled mode.

- STAND-ALONE MODE


Internal programs (master mode) / speed

Setting solid colors

Setting LED colors 0 – 100% (master mode) / strobe effect

Setting dimmer curves
- DMX MODE

Setting DMX Channel Mode
Stand-alone mode
In the stand-alone mode, the FUTURELIGHT WL-18 IP65 can be used without controller.
Disconnect the FUTURELIGHT WL-18 IP65 from the controller.

Control Board

The Control Board offers several features: you can simply set the starting address or run the internal
programs.
Browse through the main menu by pressing MODE. Press ENTER in order to select the desired menu. You
can change the selection by pressing UP or DOWN. Confirm every selection by pressing the ENTER button.
The functions provided are described in the following sections. You can leave every mode by pressing the
MODE button.
Setting internal programs / speed
When the display shows P, you can select the desired internal program. Please see the following table.
Mode:
P
Press the MODE button until the display shows S___. Press the ENTER button and select the desired speed
(S001 – S100, increasing speed) via the UP or DOWN buttons. Press ENTER to confirm.
Setting LED colors / color temperature (0 – 100%) / strobe effect
When the display shows U, you can select the dimmer itensity of the LED colors from 0 to 100 % (0-255) and
the desired strobe speed from 1 to 20 (increasing speed).
Please see the following table.
Mode: Value:
0 - 255
R
0 - 255
G
0 - 255
b
1 - 20
S
Setting dimmer curves
Press the MODE button until the display shows DIM. Press the ENTER button. You can select OFF / DIM1 /
DIM2 oder DIM3 via the UP or DOWN buttons. Confirm your choice by pressing ENTER.
Mode:
DIM
Value:
P--1
P--2
P--3
P--4
P--5
Function:
Red (0-100%)
Green (0-100%)
Blue (0-100%)
Strobe effect with increasing speed
Value:
OFF
DIM1
DIM2
DIM3
Function:
Internal program 1
Internal program 2
Internal program 3
Internal program 4
Internal program 5
23/28 00066130.DOC, Version 1.1
