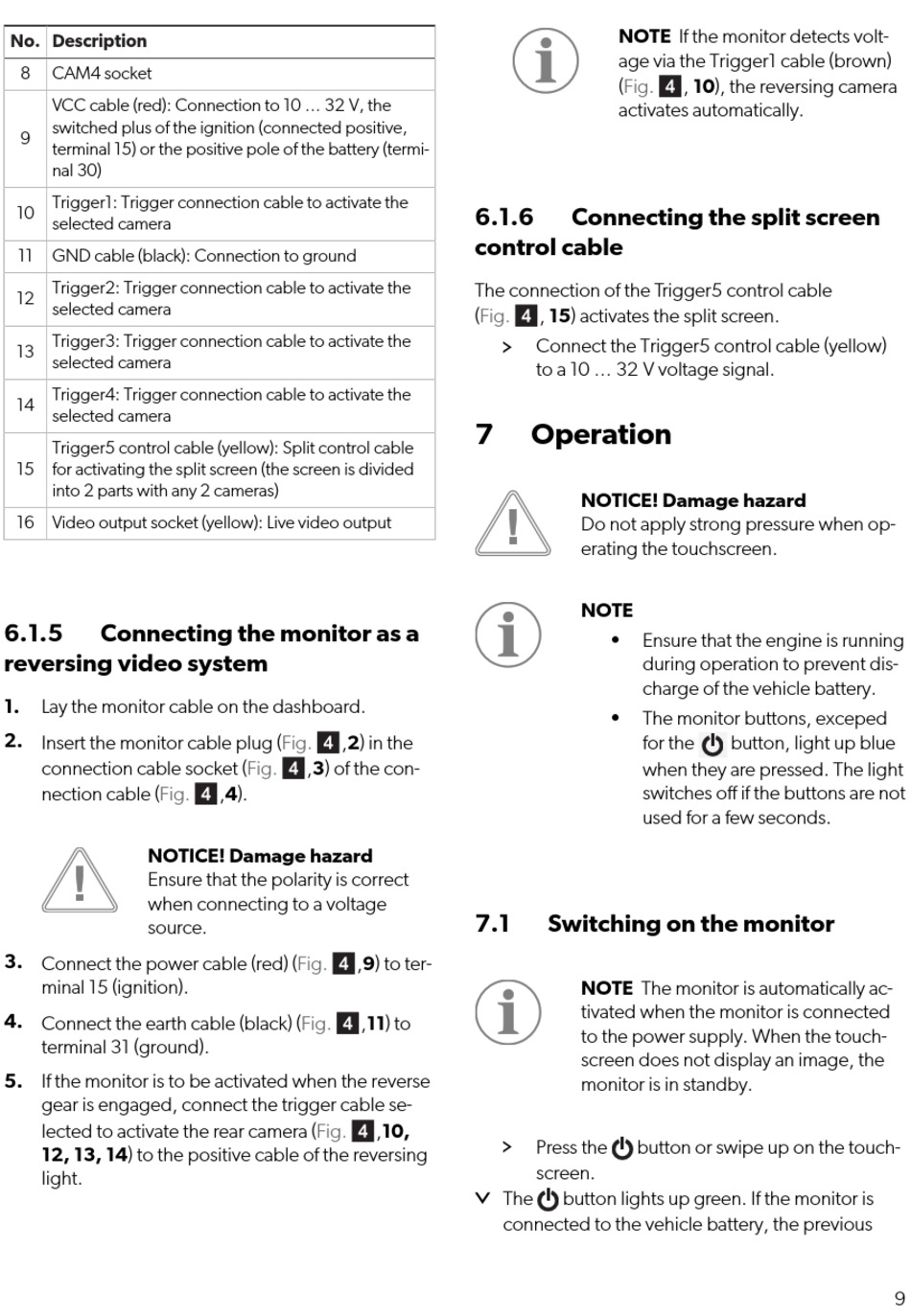

No. Description
8
CAM4 socket
VCC cable (red): Connection to 10 ... 32 V, the
switched plus of the ignition (connected positive,
9
terminal 15) or the positive pole of the battery (termi-
nal 30)
Trigger1: Trigger connection cable to activate the
10
selected camera
11
GND cable (black): Connection to ground
Trigger2: Trigger connection cable to activate the
12
selected camera
Trigger3: Trigger connection cable to activate the
13
selected camera
Trigger4: Trigger connection cable to activate the
14
selected camera
Trigger5 control cable (yellow): Split control cable
15
for activating the split screen (the screen is divided
into 2 parts with any 2 cameras)
16 Video output socket (yellow): Live video output
6.1.5
Connecting the monitor as a
reversing video system
1.
Lay the monitor cable on the dashboard.
2. Insert the monitor cable plug (Fig. ,2) in the
connection cable socket (Fig. ,3) of the con-
nection cable (Fig. ,4).
NOTICE! Damage hazard
Ensure that the polarity is correct
when connecting to a voltage
source.
3. Connect the power cable (red) (Fig. ,9) to ter-
minal 15 (ignition).
4. Connect the earth cable (black) (Fig. ,11) to
terminal 31 (ground).
5. If the monitor is to be activated when the reverse
gear is engaged, connect the trigger cable se-
lected to activate the rear camera (Fig. ,10,
12, 13, 14) to the positive cable of the reversing
light.
NOTE If the monitor detects volt-
age via the Trigger1 cable (brown)
(Fig. , 10), the reversing camera
activates automatically.
6.1.6
Connecting the split screen
control cable
The connection of the Trigger5 control cable
(Fig. , 15) activates the split screen.
Connect the Trigger5 control cable (yellow)
to a 10 ... 32 V voltage signal.
7
Operation
NOTICE! Damage hazard
Do not apply strong pressure when op-
erating the touchscreen.
NOTE
Ensure that the engine is running
during operation to prevent dis-
charge of the vehicle battery.
The monitor buttons, exceped
for the
when they are pressed. The light
switches off if the buttons are not
used for a few seconds.
7.1

Switching on the monitor

NOTE The monitor is automatically ac-
tivated when the monitor is connected
to the power supply. When the touch-
screen does not display an image, the
monitor is in standby.
Press the
button or swipe up on the touch-
screen.
The
button lights up green. If the monitor is
connected to the vehicle battery, the previous
button, light up blue
9
