Single slope function

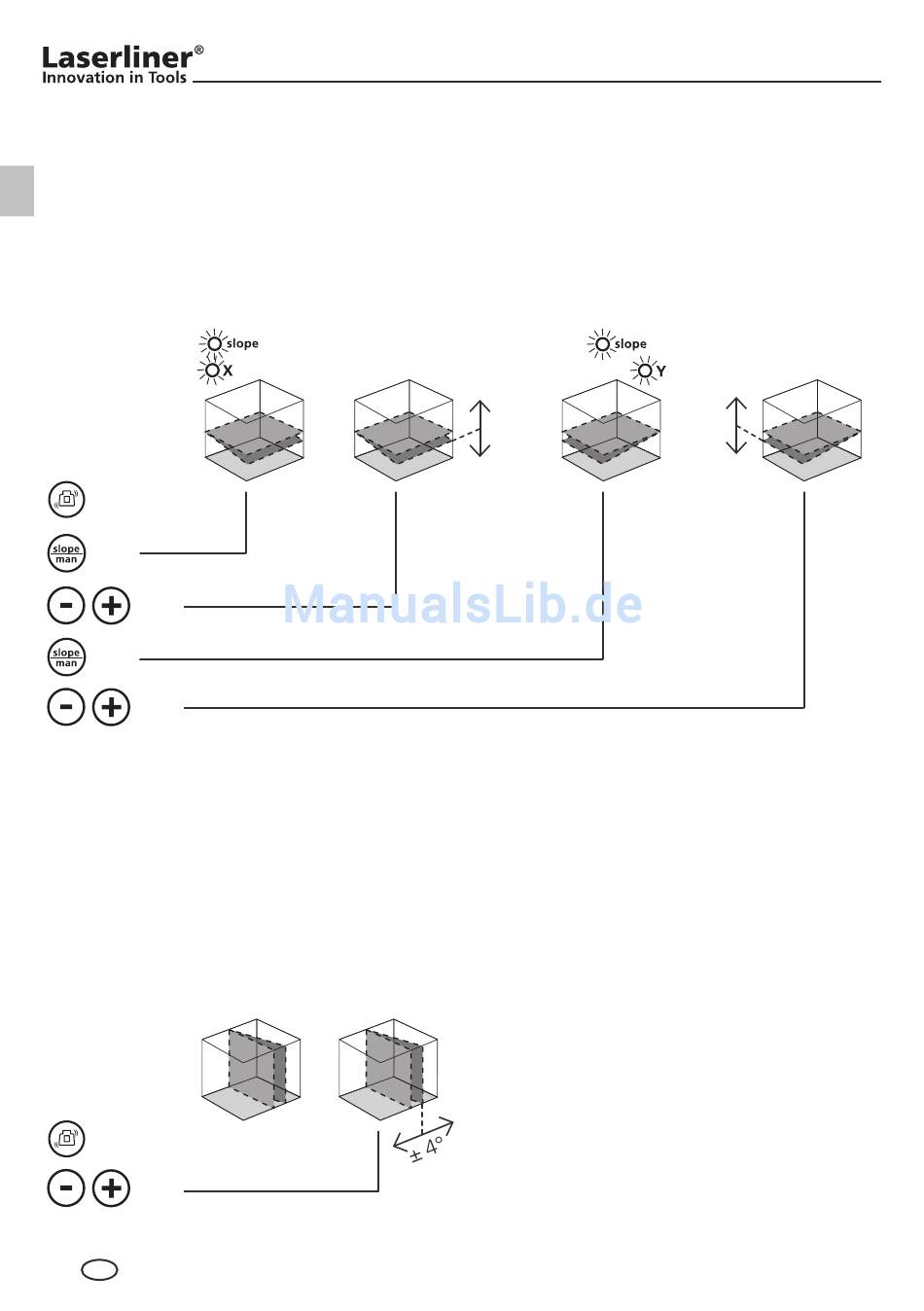

In automatic mode, an axis can be manually set to a certain slope using this function,
even if the ADS tilt function is also active. This means that one axis can be re-adjusted
whilst the other is aligned horizontally and/or vertically. Press the slope/man button to
activate the function and select the X or Y axis. The slope LED lights up, as does the LED
for the X or Y axis. The slope is re-adjusted using the plus/minus buttons. ATTENTION:
This function cannot be used to perform full horizontal levelling, just to adjust one axis.
( )
OPTIONAL
1
(13)
(22)
(13)
(22)
Application example: A gradient is to be laid out at the entrance to a garage. For this,
one axis must be re-adjusted and the other aligned horizontally with the garage floor.
IMPORTANT: If a horizontal line is to be moved simultaneously on one wall, the X or Y
axis of the rotary laser must be aligned at right angles to the wall. If this is not done, a
slope will be projected onto the wall. Use the reference beam to set the right angle.
Turn the vertical plane
(optional)
(22)
