LaserLiner CompactPalm-Laser PowerBright Plus Bedienungsanleitung Seite 10

1
7
13 12
10 GB
8
10
11

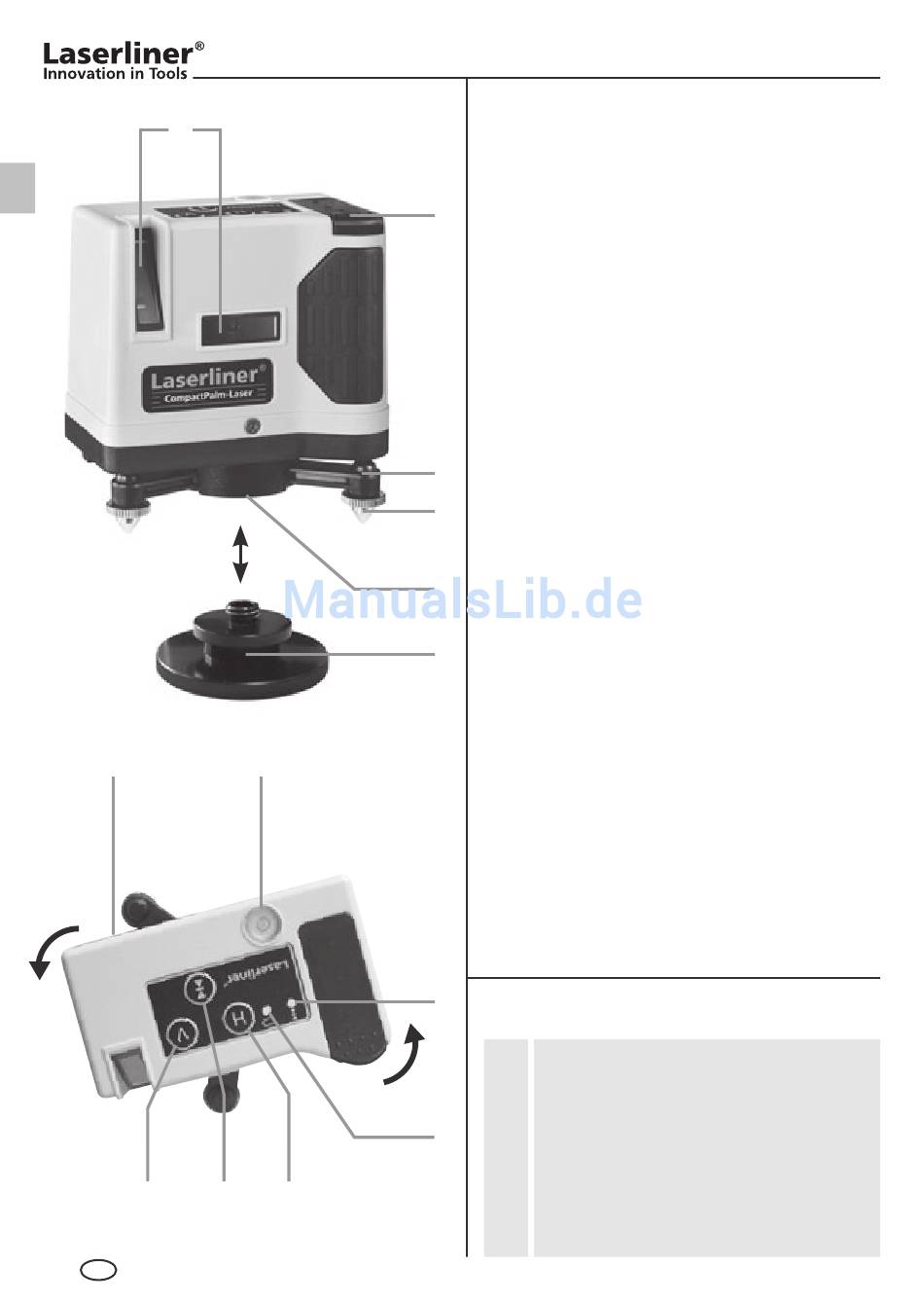

1 Windows for line lasers
2 Battery compartment
2
3 Rotatable device plinth with
adjustable feet
4 Adjustable feet
5 5/8" thread (underside)
6 Tripod adapter
3
7 ON, OFF switch / Transport
4 securing device (Backside)
8 Illuminated vial for coarse
5
alignment
9 LED Hand receiver mode
6
10 LED Status indicator/
low battery charge (LED
blinks)
11 Horizontal laser line
12 Hand receiver mode
13 Vertical laser line
9
For transport, the device must
always be switched off with
!
the transport securing device
(7) so as to protect device
from damage.
