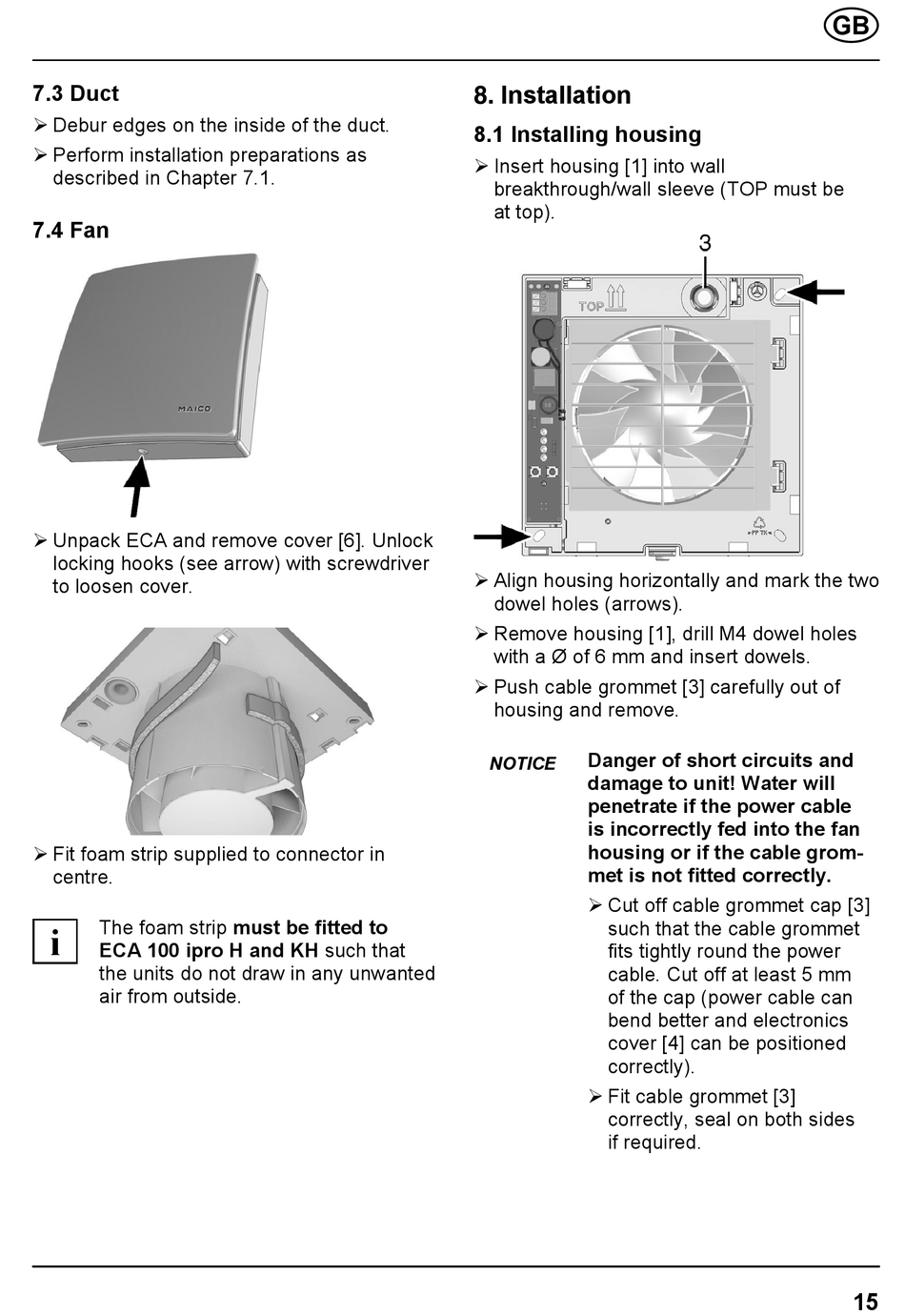

7.3 Duct

 Debur edges on the inside of the duct.
 Perform installation preparations as
described in Chapter 7.1.

7.4 Fan

 Unpack ECA and remove cover [6]. Unlock
locking hooks (see arrow) with screwdriver
to loosen cover.
 Fit foam strip supplied to connector in
centre.
The foam strip must be fitted to
i
ECA 100 ipro H and KH such that
the units do not draw in any unwanted
air from outside.

8. Installation

8.1 Installing housing

 Insert housing [1] into wall
breakthrough/wall sleeve (TOP must be
at top).
 Align housing horizontally and mark the two
dowel holes (arrows).
 Remove housing [1], drill M4 dowel holes
with a Ø of 6 mm and insert dowels.
 Push cable grommet [3] carefully out of
housing and remove.
Danger of short circuits and
NOTICE
damage to unit! Water will
penetrate if the power cable
is incorrectly fed into the fan
housing or if the cable grom-
met is not fitted correctly.
 Cut off cable grommet cap [3]
such that the cable grommet
fits tightly round the power
cable. Cut off at least 5 mm
of the cap (power cable can
bend better and electronics
cover [4] can be positioned
correctly).
 Fit cable grommet [3]
correctly, seal on both sides
if required.
GB
15
