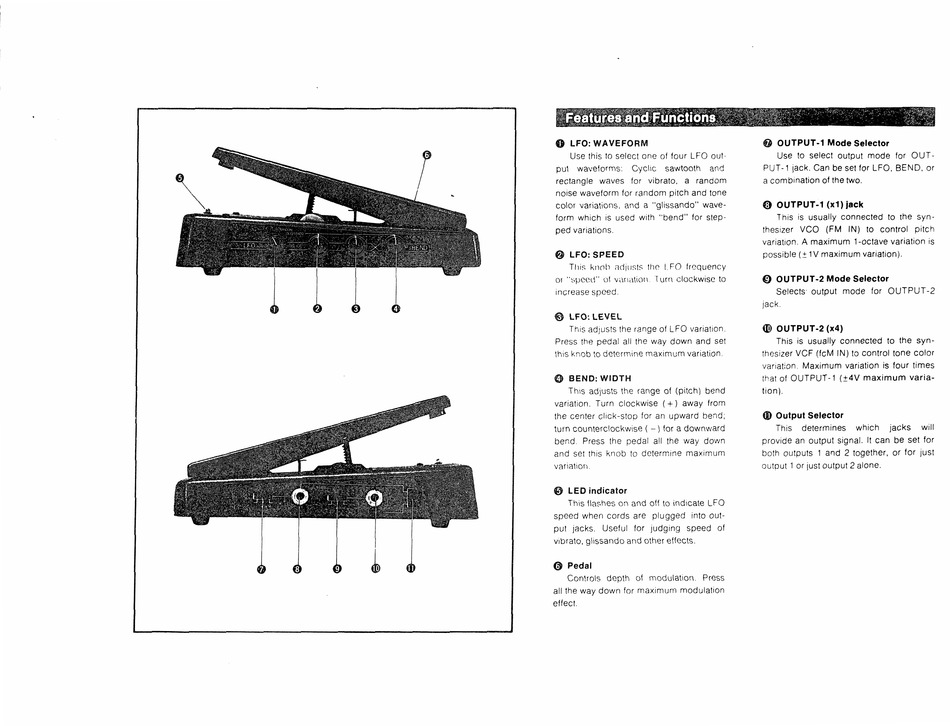

@ LFO: WAVEFORM
Use this to select one of four LFO out
put
waveforms:
Cyclic
sawtooth
and
rectangle
waves
for
vibrato,
a
random
noise waveform for random pitch and tone
color variations, and a "glissando" wave
form which is used with "bend" for step
ped variations.
© LFO:SPEED
This knob adjusts the LFO frequency
or "speed" of variation. Turn clockwise to
increase speed.
@ LFO: LEVEL
This adjusts the range of LFO variation.
Press the pedal all the way down and set
this knob to determine maximum variation.
O BEND: WIDTH
This adjusts the range of (pitch) bend
variation. Turn clockwise ( + ) away from
the center click-stop for an upward bend;
turn counterclockwise ( -) for a downward
bend. Press the pedal all the way down
and set this knob to determine maximum
variation.
© LED indicator
This flashes on and off to indicate LFO
speed when cords are
plugged
into out
put jacks.
Useful
for judging speed of
vibrato, glissando and other effects.
© Pedal
Controls depth of modulation.
Press
all the way down for maximum modulation
effect.
O OUTPUT-1 Mode Selector
Use to select output mode for OUT
PUT-1 jack. Can be set for LFO, BEND, or
a combination of the two.
© OUTPUT-1 (x1)jack
This is usually connected to the syn
thesizer VCO
(FM
IN) to control
pitch
variation. A maximum 1-octave variation is
possible (± 1V maximum variation).
© OUTPUT-2 Mode Selector
Selects- output mode for OUTPUT-2
jack.
® OUTPUT-2 (x4)
This is usually connected to the syn
thesizer VCF (fcM IN) to control tone color
variation. Maximum variation is four times
that of OUTPUT-1 (±4V maximum varia
tion).
® Output Selector
This
determines
which
jacks
will
provide an output signal. It can be set for
both outputs 1 and 2 together, or for just
output 1 or just output 2 alone.
