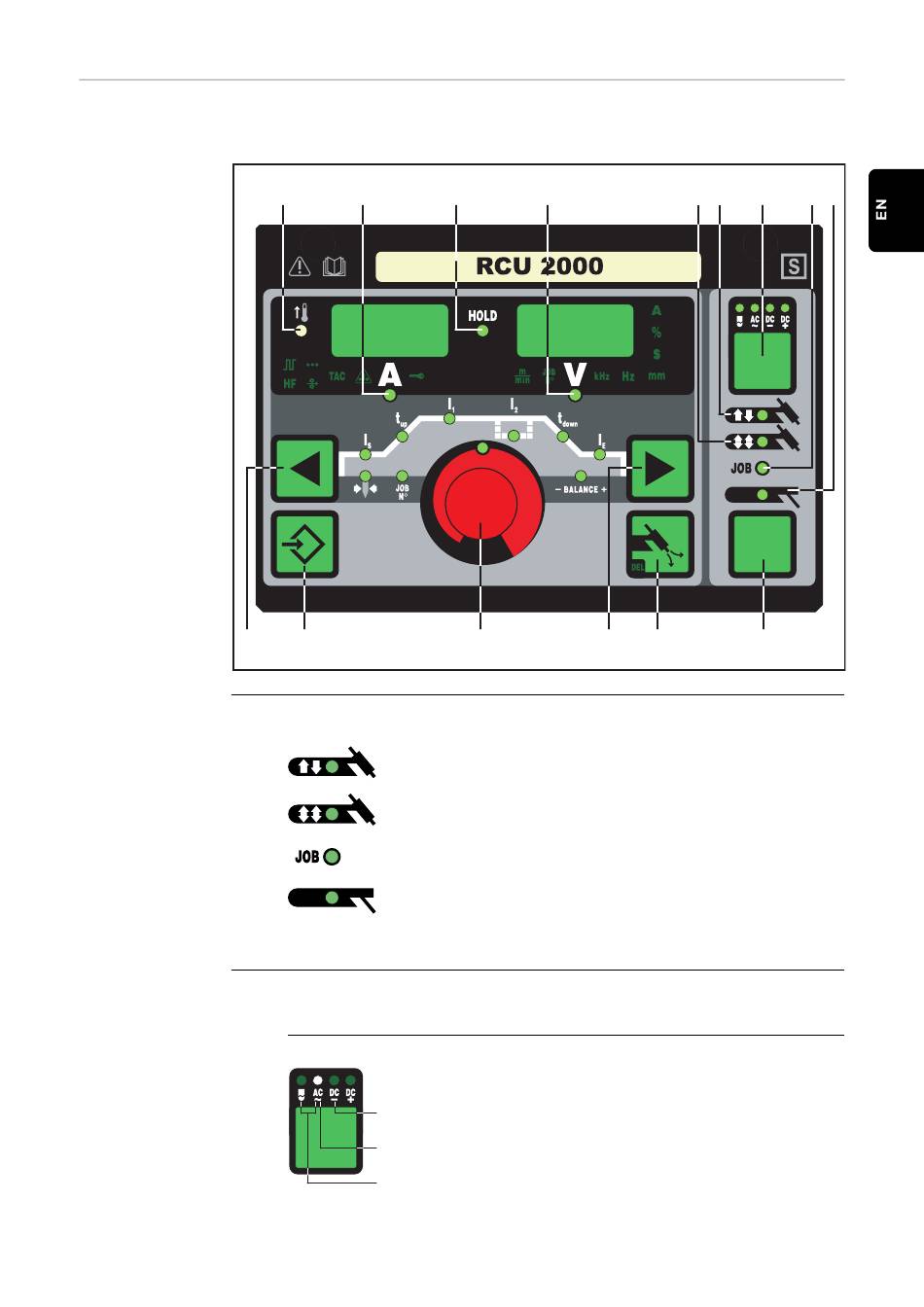

RCU 2000 con- The RCU 2000 control panel correspond to the control panel of the MagicWave
trol panel 1700/2200 power source.
(8)
(1)
(6)
(15) (10) (12)
(13)
Mode button
for selecting the operating mode
(2) 2-step mode
(3) 4-step mode
(4) Job mode
(5) Rod electrode (MMA) welding
IMPORTANT! If you select the "Rod electrode (MMA) welding" mode
(5), the welding voltage will only be available after a 3-second time-lag.
Process button
for selecting the process, depending upon which operating mode has
been selected
If 2-step / 4-step mode has been selected
Process:
TIG-DC- welding
WTIG-AC- welding
TIG-AC welding with activated cap-shaping function
(11)
(7) (9) (14)
(3) (2) (6) (4) (5)
(1)
