Control panel
Overview
The key feature of the control panel is the logical way in which the controls are
arranged. All the main parameters needed for day-to-day working can easily be
-
-
-
NOTE!
Owing to software updates, you may find that your machine has certain func-
tions that are not described in these Operating Instructions, or vice-versa. Also,
certain illustrations may be very slightly different from the actual controls on
your machine. However, these controls function in exactly the same way.

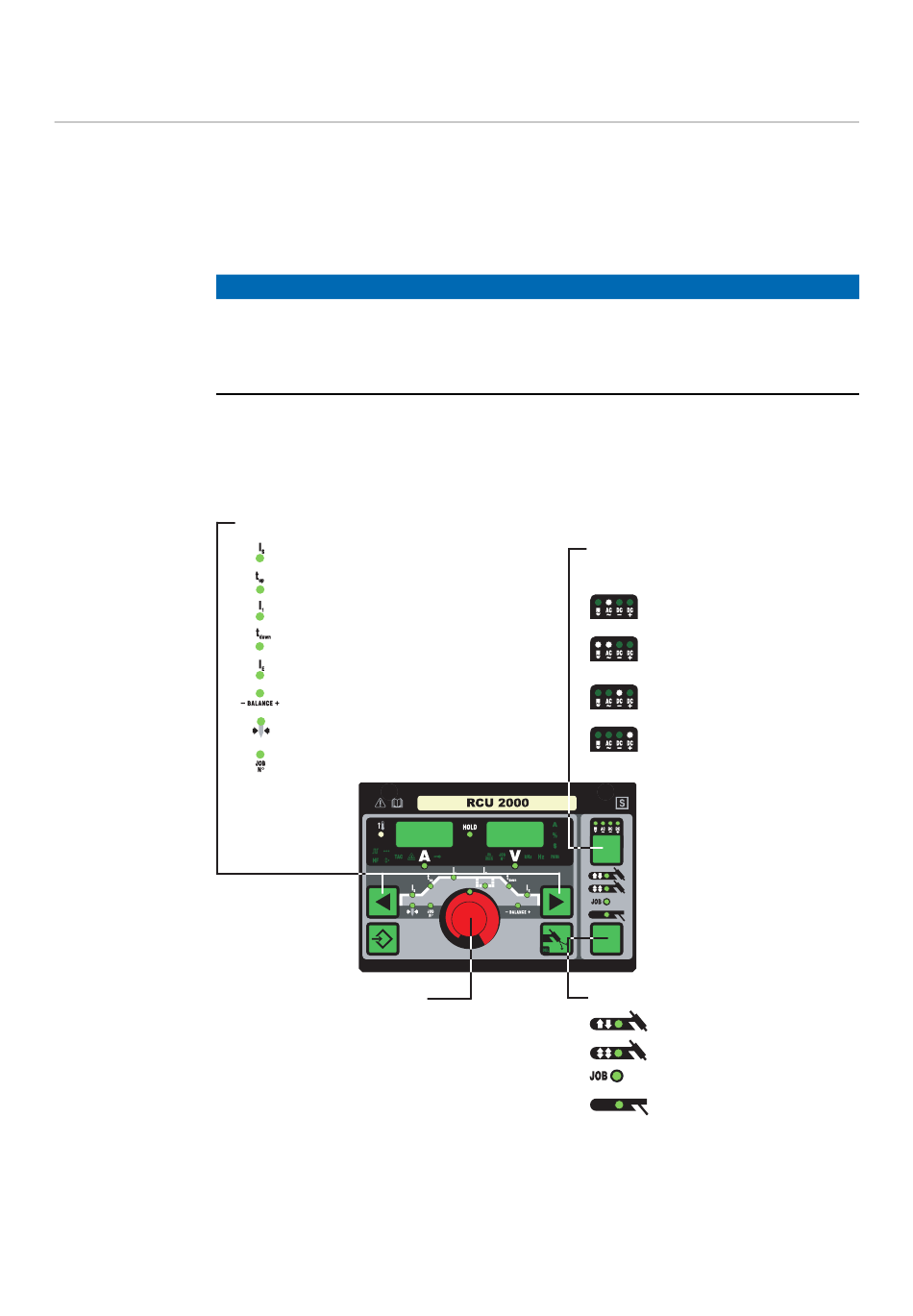

The illustration below shows an overview of the main settings needed for day-to-
day working, based on the example of the MagicWave 1700/2200 control panel.
You will find a detailed description of these settings in the following section
("Control panel").
14
selected with the buttons
altered with the adjusting dial
shown on the display during welding.
3. Select the parameter:
Starting current I
S
Upslope t
up
Main current I
1
Downslope t
down
Final current I
E
Balance (only with TIG-AC)
Electrode diameter
Job number (only in Job Mode)
4. Alter the parameter
2. Choose which process:
(only on MagicWave 1700/2200)
AC welding
AC + cap-shaping
(only with TIG)
DC- welding
DC+ welding
(only with rod electrode)
1. Select the operating mode:
2-step mode
4-step mode
Job mode
Rod electrode (MMA)
