JOBOBIKE SAM Bedienungsanleitung Seite 9

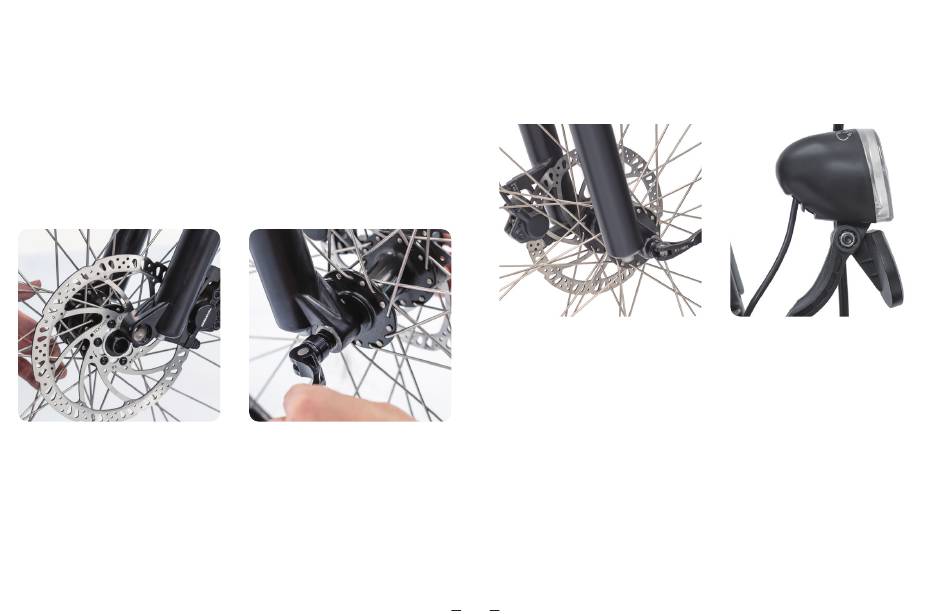

Step 4 Install the front wheel
4. 1 Place the front wheel in the correct position of the fork
groove and tighten it with matching wheel axel.(if there are
any hub protection parts attached to the wheel, remove
them)
4. 2 Make sure the front wheel will not rub the brake pads
when it is rotating under the condition of not pinching
brake handle.
Step 5 Install the front fender
and headlight
5.1 Install the front fender and headlight to the front fork
with matching screws and nuts by a 4# hexagon wrench.
Make sure the front fender and headlight support cannot
be moved.
5.2 Adjust the headlight to a proper angle by this way:
loosen the adjusting bolt with a cross-head screwdriver,
adjust the headlight tilt angle to the best position, and then
tighten the bolt.
5.3 Connect the cable plug to the headlight, please note to
align the inner pins and notches with the outer arrows.
9
