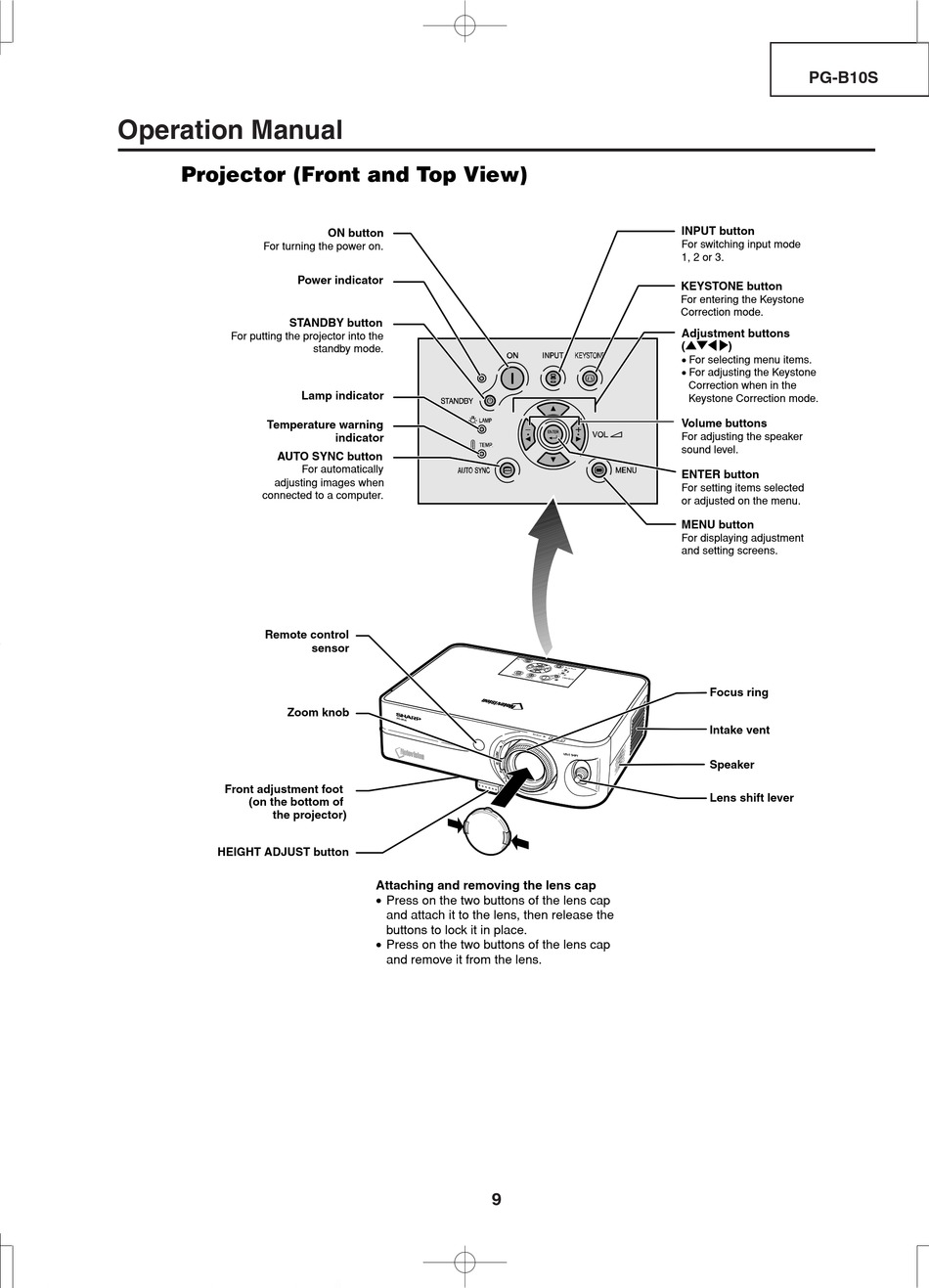

Projector (Front and Top View)
For turning the power on.
STANDBY button
For putting the projector into the
Temperature warning
AUTO SYNC button
adjusting images when
connected to a computer.
Remote control
Zoom knob
Front adjustment foot
(on the bottom of
the projector)
HEIGHT ADJUST button
ON button
Power indicator
standby mode.
Lamp indicator
indicator
For automatically
sensor
Attaching and removing the lens cap
• Press on the two buttons of the lens cap
and attach it to the lens, then release the
buttons to lock it in place.
• Press on the two buttons of the lens cap
and remove it from the lens.
9
PG-B10S
INPUT button
For switching input mode
1, 2 or 3.
KEYSTONE button
For entering the Keystone
Correction mode.
Adjustment buttons
('"\ |)
• For selecting menu items.
• For adjusting the Keystone
Correction when in the
Keystone Correction mode.
Volume buttons
For adjusting the speaker
sound level.
ENTER button
For setting items selected
or adjusted on the menu.
MENU button
For displaying adjustment
and setting screens.
Focus ring
Intake vent
Speaker
Lens shift lever
