No. Adjusting point
1 EEPROM
initialization
2-1 R/G/B Bright-
ness adjustment
2-2 R/G/B Contrast
adjustment
3 DTV Brightness/
Contrast adjust-
ment
4 DVD Brightness/
Contrast adjust-
ment

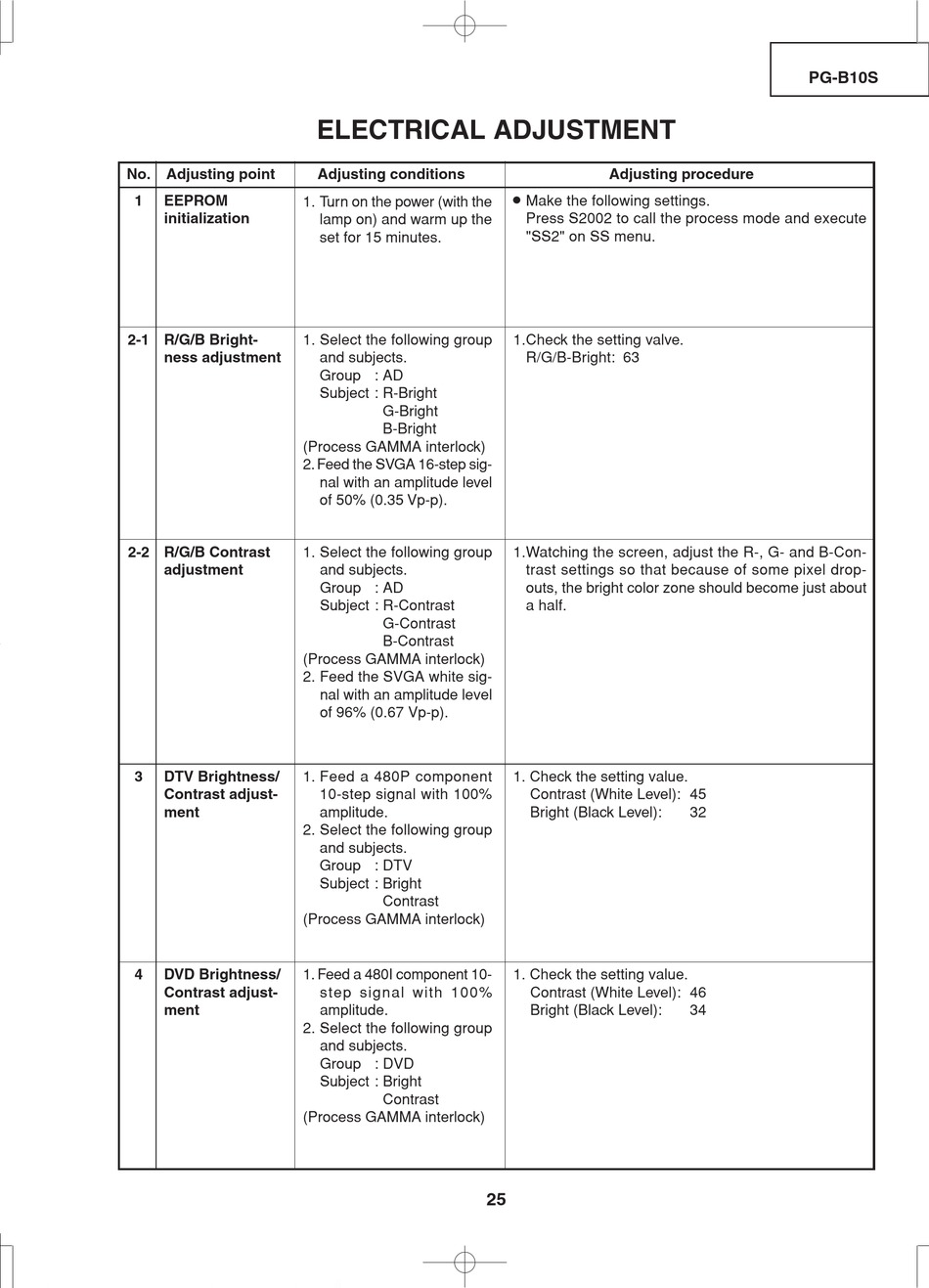

ELECTRICAL ADJUSTMENT

Adjusting conditions
1. Turn on the power (with the
lamp on) and warm up the
set for 15 minutes.
1. Select the following group
and subjects.
Group : AD
Subject : R-Bright
G-Bright
B-Bright
(Process GAMMA interlock)
2. Feed the SVGA 16-step sig-
nal with an amplitude level
of 50% (0.35 Vp-p).
1. Select the following group
and subjects.
Group : AD
Subject : R-Contrast
G-Contrast
B-Contrast
(Process GAMMA interlock)
2. Feed the SVGA white sig-
nal with an amplitude level
of 96% (0.67 Vp-p).
1. Feed a 480P component
10-step signal with 100%
amplitude.
2. Select the following group
and subjects.
Group : DTV
Subject : Bright
Contrast
(Process GAMMA interlock)
1. Feed a 480I component 10-
step signal with 100%
amplitude.
2. Select the following group
and subjects.
Group : DVD
Subject : Bright
Contrast
(Process GAMMA interlock)
Adjusting procedure
» Make the following settings.
Press S2002 to call the process mode and execute
"SS2" on SS menu.
1.Check the setting valve.
R/G/B-Bright: 63
1.Watching the screen, adjust the R-, G- and B-Con-
trast settings so that because of some pixel drop-
outs, the bright color zone should become just about
a half.
1. Check the setting value.
Contrast (White Level): 45
Bright (Black Level):
1. Check the setting value.
Contrast (White Level): 46
Bright (Black Level):
25
PG-B10S
32
34
