Programming the system
Programming the system
P2: Output channel (CH1..7) selection
P1: 433.42MHz transmitter memorization/deletion
Memorizing the output channels (CH1..7) into a Teleco receiver
•
Select the output channel to send (CH1..7), by pressing P2. The relative LED indicate the selected channel.
•
Refer to the instructions manual of the receiver for the appropriate memorization procedure.
•
Send the channel by means of P3.
Associating the output channels (CH1..7) to the 433.42MHz transmitter button
•
Select the output channel to send (CH1..7), by pressing P2. The relative LED indicate the selected channel.
•
Press Once P1 and keep it pressed. Press the transmitter button you want to associate to the channel.
•
Repeat for all the channels to be used.
Deleting the association between 433.42MHz transmitter button and output channel
Press Twice P1 and keep it pressed. Press the transmitter's button to delete from the memory
Deleting all the associations between 433.42MHz transmitter and BRIDGE
Press 3 times P1 and keep it pressed for 10 seconds. Release it when the receiver emits a continuous sound.
Warnings
Programming the system
The product at issue must be installed only by qualified technical personnel respecting the laws concerning the electrical installations.
All the connections must be rated for a single-phase 230Vac power supply. For the disconnection from the power line, use an all-pole
switch with contacts having a dimension of at least 3,5mm. Only suitable materials for the connections must be used to guarantee
insulation that complies with current standards on the subject of electrical safety. All the safety devices required by the system must
be arranged separately. The device's signal reception could be disturbed: if there are any interferences generated by other appliances
working on the same frequency in the same area; if the product is covered by metal parts.
SAFETY RULES
• Do not use the device in places or where systems are sensitive to radio emissions (e.g. airports, hospitals).
• The operator is in no way protected against interference from other telecommunication equipment or systems (e.g. authorised radio
systems working on the same frequency range). If you are having problems with its range of action, fix the device up high.
Hereby Teleco automation s.r.l. declares that the product complies with the essential requirements and other relevant provisions,
established by the Directive 1999/5/EC. The declaration of conformity can be consulted on the web site: www.telecoautomation.com/ce
Technical specifications
- Reception frequency
- Transmission frequency
- Power supply
BST7 BRIDGE
bridge sr3

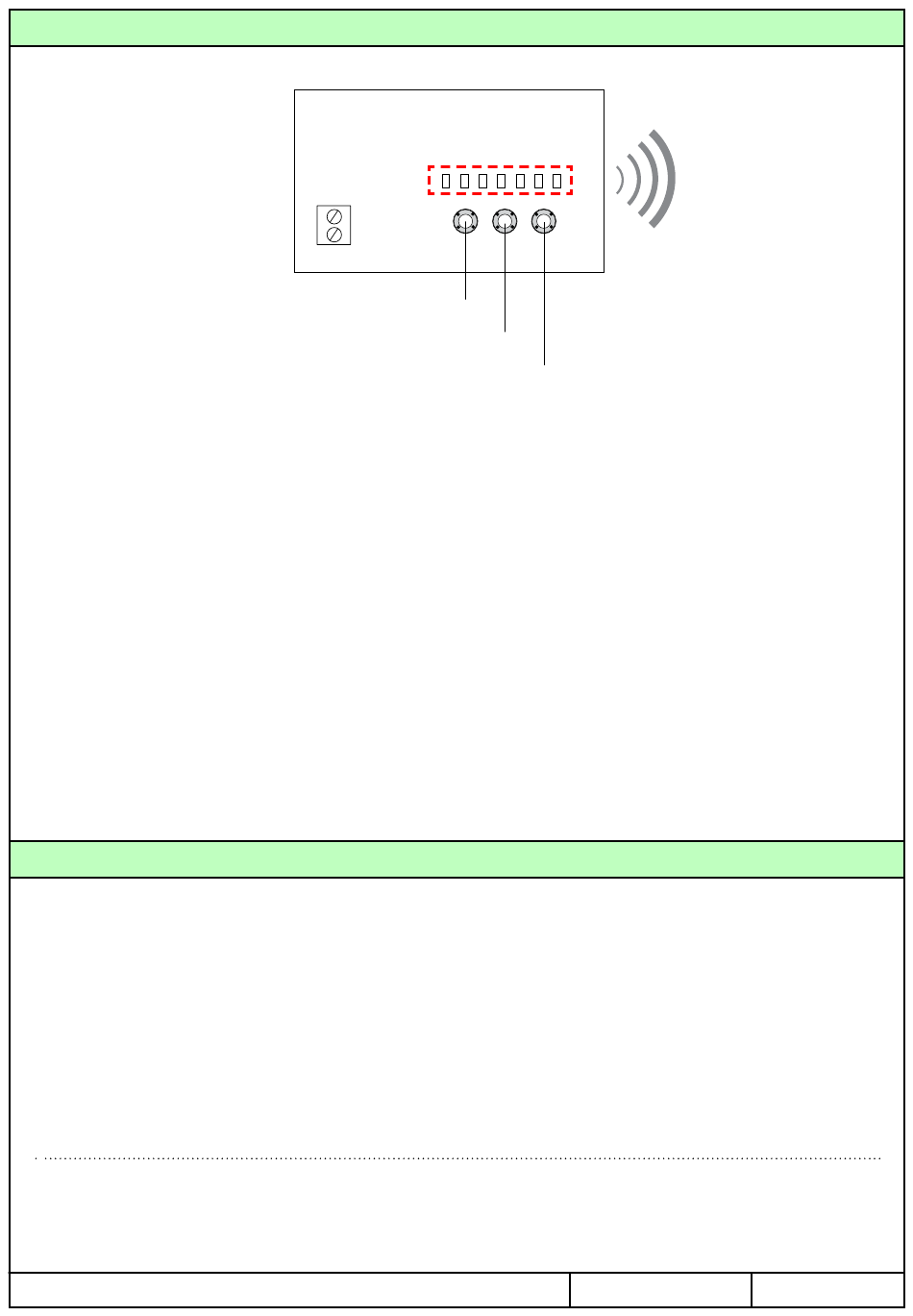

OUTPUT Channels LED
230Vac
P3: Teleco transmission test
bridge bst7
433.42 MHz
- Operating temperature range
868.3 MHz
- Max. memorized radio channels 48
230Vac
- Protection
CH1
CH2
CH3
CH4
CH5
CH6
CH7
868.3 Mhz Teleco
7 channel transmitter
-20° +50°C
IP54
T654.01
DOC.:
16/06/16
DATE:
