Extremis hopper Gebrauchsanweisung Seite 16

hopper

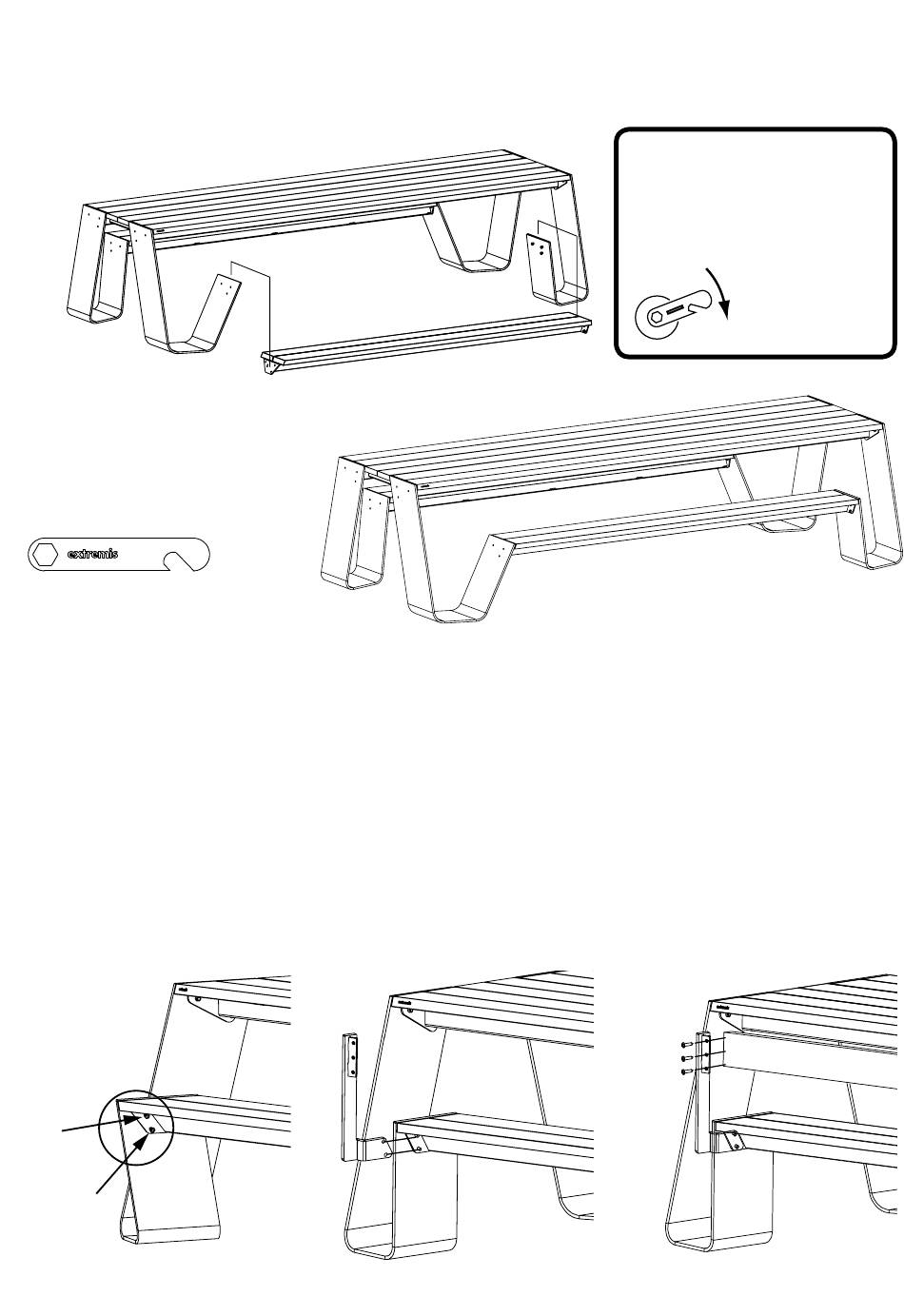

7. Fasten the bench frames to the table legs
in the way described above. Then tighten all
the nuts using the supplied spanner.
8. Put the optional felt mats under the
table legs.
backrest assembly
1. Unscrew the nuts at the outside of the
bench frames. The nut on the inside will
prevent the bench from falling.
2. Slide the backrest supports over the two
threaded rods. In case of steel legs, retighten
the nuts. In case of aluminium legs, use the
nuts supplied with the backrest.
CAUTION: Only use the supplied
spanner to tighten the nuts. Do not
fasten them too tightly:
MAX. 10Kg
3. Screw the wooden backrest to the
supports, each time using three screws. Use
the pre-drilled holes to correctly position
the backrest.
www.extremis.be
20lbs
