Electrical connection

Synchronization
cable
Tx Rx
Figure 11:

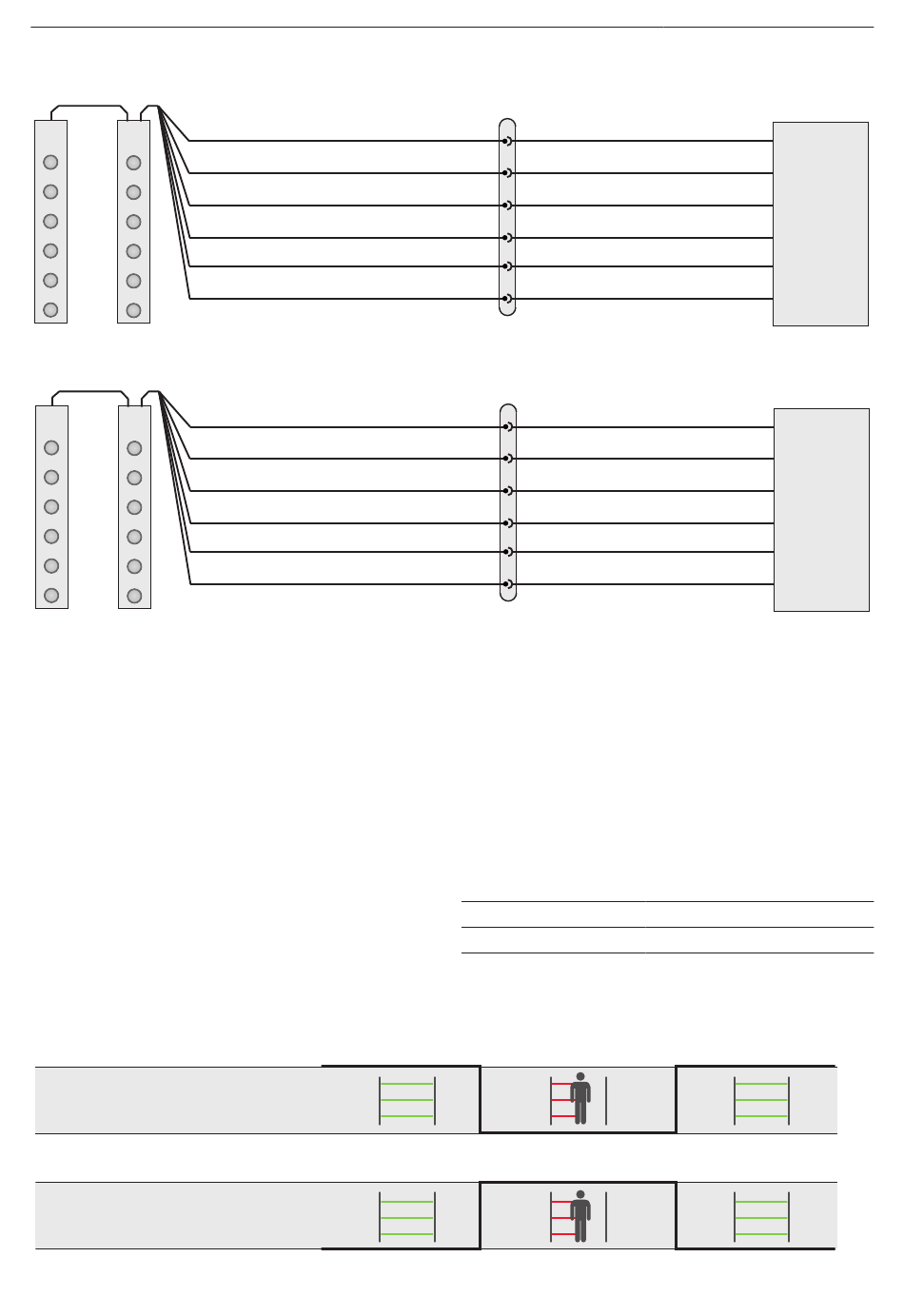

Connection diagram semiconductor output
Synchronization
cable
Tx Rx
Figure 12: Connection diagram FSS output
Important: Any unconnected (not used) wire must be separated and isolated.
8.1

Outputs

When an object enters the safeguarded area (OBJECT
DETECTED) the GridScan/Mini-SB2/-ST2 output changes
after response time t (Chapter 9). When the object leaves
2
the surveillance area (NO OBJECT) the GridScan/Mini-
SB2/-ST2 output switches back after release time t
8.1.1 Changing the Output 1 (PNP/NPN) logic
Output (PNP/NPN) logic is set using the gray wire.
The default logic is LO (light-on); Chapter 9. The
output logic is LO if the gray wire is connected
to GND (0 V). Connecting the gray wire to U
(10 ... 30 VDC) changes the output logic to DO
(dark-on); Figure 11 and Figure 13.
LO/DO selector connected to GND (0 V )
Output 1 (PNP/NPN)
LO/DO selector connected to U
Output 1 (PNP/NPN)
Figure 13:
Output 1 (PNP/NPN) logic selection table
8
Semiconductor output
U
SP
Selectable output logic
Test input
Output 1 (PNP/NPN)
GND (0 V)
Not used or Output 2 (PNP/NPN)
FSS output
U
SP
Not used
Test input
Output (FSS)
GND (0 V)
Not used
.
3
U
SP
0 V
SP
U
SP
0 V
M8, 6-pin
1
brown
2
gray
3
white
4
black
5
blue
6
green
M8, 6-pin
1
brown
2
gray
3
white
4
black
5
blue
6
green
Gray wire
Connected to GND (0 V)
Connected to U
SP
SP
Table 1: Output (PNP/NPN) logic selection table
