GridScan/Mini-SB2/-ST2

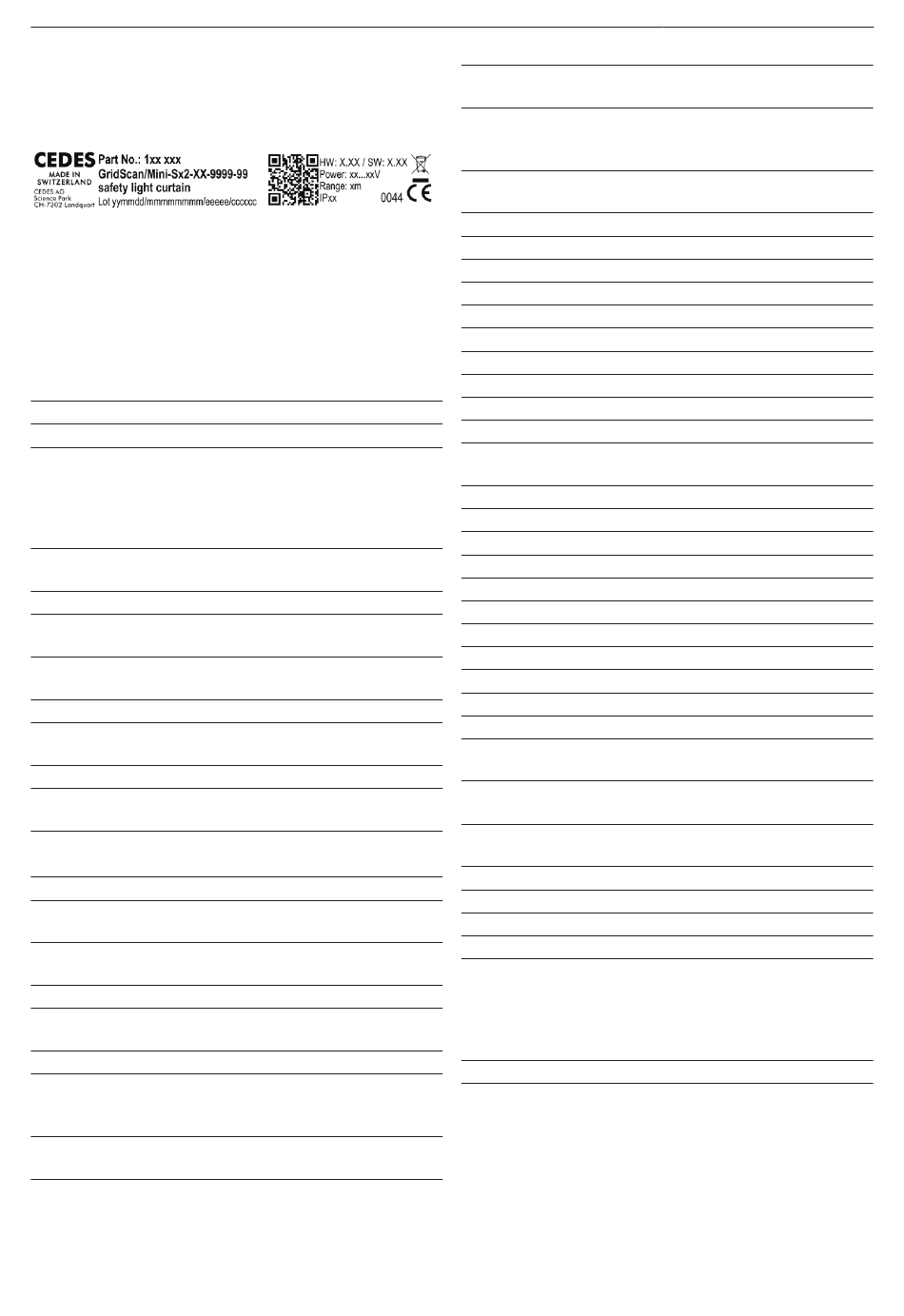

15. Product label

Each GridScan/Mini-SB2/-ST2 is labelled as below,and
attached to both the emitter as well as thereceiver edge of
the light curtain. It contains following information:
Lot No.:
yymmdd: year (2 digits), month, day
mmmmmmmm: manufacturing job number
eeeee: employee number responsible for final test
cccccc: incremental number

16. Technical data

Optical
Operating range
Number of elements
Min. resolution
- 0 ... 500 mm
- 0 ... 2,500 mm
Aperture angle at 3 m
(at 10 ft)
Max. ambient light
Mechanical
Cross section
Max. protection height
Housing material
Enclosure rating
Temperature range
Electrical
Supply voltage U
SP
Current consumption
at 24 VDC
Output
Output load
Typ. response time
with 32 elements
Max. door speed
Status LED Rx:
- Object detected
- No object detected
Power LED Tx:
- Power OK
12
1.2 ... 8 m (3 ... 26 ft)
4 ... 50
Test body B acc. to
EN 12453:2017
Test body acc. to
EN 12453:2017
Tx and Rx: ≤ ±5°
100,000 Lux
12 mm × 16 mm
(0.47 in × 0.63 in)
2,500 mm (98.5 in)
Natural anodized
aluminum
IP67
−40 °C ... +60 °C
(−40 °F ... +140 °F)
10 ... 30 VDC
100 mA
PNP/NPN (push-pull)
or FSS
100 mA, 100 nF
90 ms
1.6 m/s (5.25 ft/s)
Red
Green
Green
Types
GridScan/Mini-SB2
GridScan/Mini-ST2
Connection cable and electrical connection
Synchronization cable
Length 10 m (33 ft)
Diameter Ø 3.5 mm (Ø 0.14 in)
Material PVC, black
Plug color Black
Wires AWG26
brown U
•
blue GND (0 V)
•
black Communication
•
white Test signal
•
Connection cable
Length 5 m (16.5 ft)
Diameter Ø 4.2 mm (Ø 0.17 in)
Material PVC, black
Plug color Blue
Wires AWG26
brown U
•
blue GND (0 V)
•
black Output 1 (PNP/NPN or FSS)
•
white Test input
•
gray Selectable output logic
•
green Not used or Output 2 (PNP/NPN)
•
General
EMC emmision EN 61000-6-3:2007
EN 12015:2014
EMC immunity EN 61000-6-2:2005
EN 12016:2013
Vibration IEC 60068-2-6:2007
Shock IEC 60068-2-27:2008
RoHS 2011/65/EU
Certificates CE, TÜV
Safety categories EN ISO 13849-1:2015, Cat. 2, PL d
EN 61508:2015, SIL 2
EN 12978:2003, +A1:2009
EN 12453:2017, E device
ASR A1.7
Applicable standards UL 325:2012
With door blanking
feature
For static applications
without door blanking
function
SP
SP
