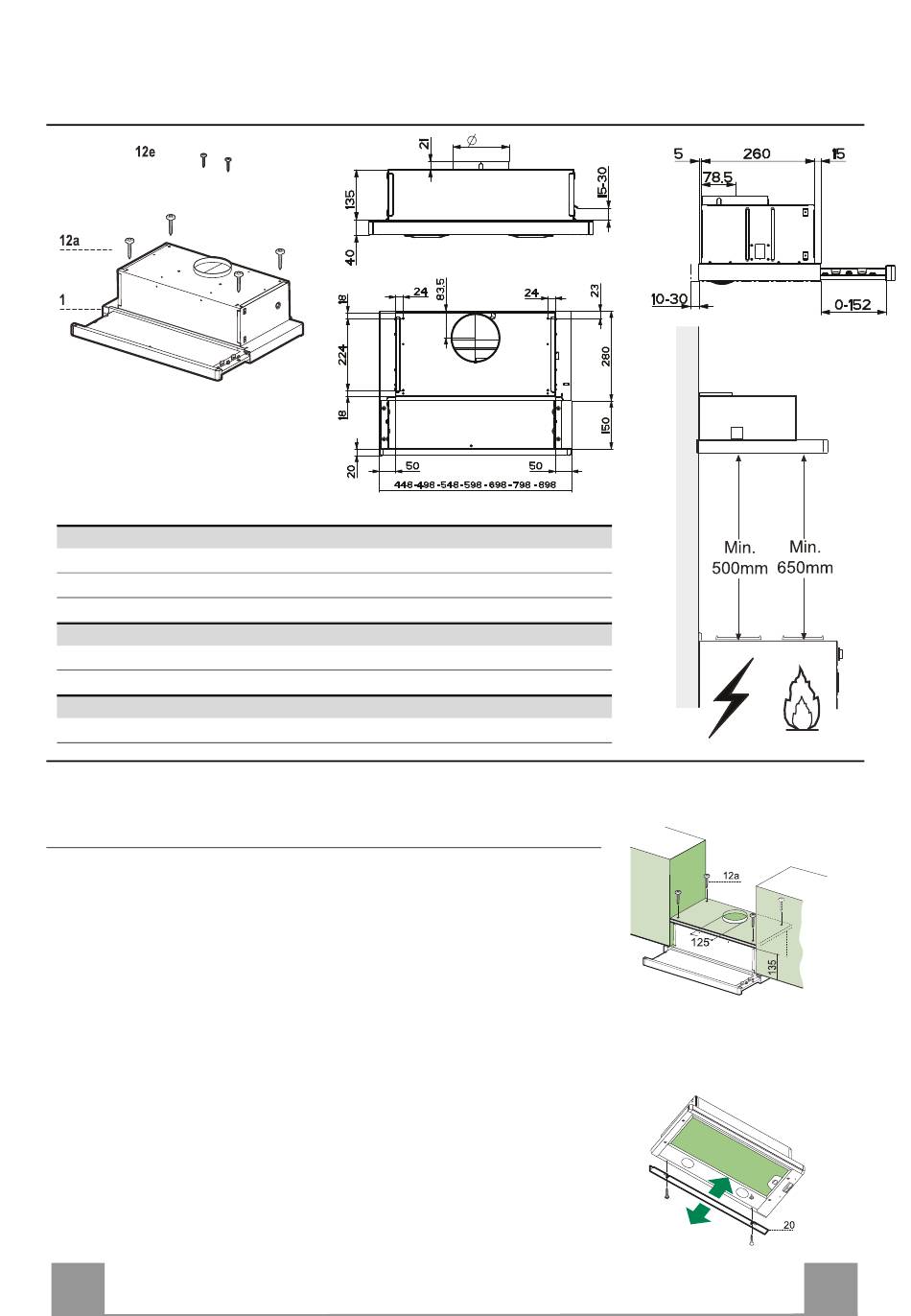

CHARACTERISTICS
Ref. Q.ty Product Components
1 1 Hood Body, complete with: Controls, Light, Blower, Filters
8 1 Directional Air Outlet grille
20
1 Closing element
Ref. Q.ty Installation Components
12a
4 Screws 4,2 x 44,4
12e
2 Screws 2,9 x 9,5
Q.ty Documentation
1 Instruction Manual
INSTALLATION
Drilling the Support surface and Fitting the Hood
• The hood support surface must be 135 mm above the bottom
surface of the wall units.
• Drill the support with a ø 4,5 mm drill bit, using the drilling
template provided.
• Cut a hole ø 125 mm in size on the support surface, using the
drilling template provided.
• Fix using the 4 screws 12a (4,2 x 44,4) provided.
• The space between the edge of the hood and the rear wall can
be closed by applying the element 20 provided, using the
screws supplied for this purpose.
EN
Components
SCREW FITTING
CLOSING ELEMENT
5 5
