ESH Basic-FUBO-GK/MBK - Single-line building package
for buildings without a basement
8

Description ESH Basic-FUBO-GK/MBK

1
4
6

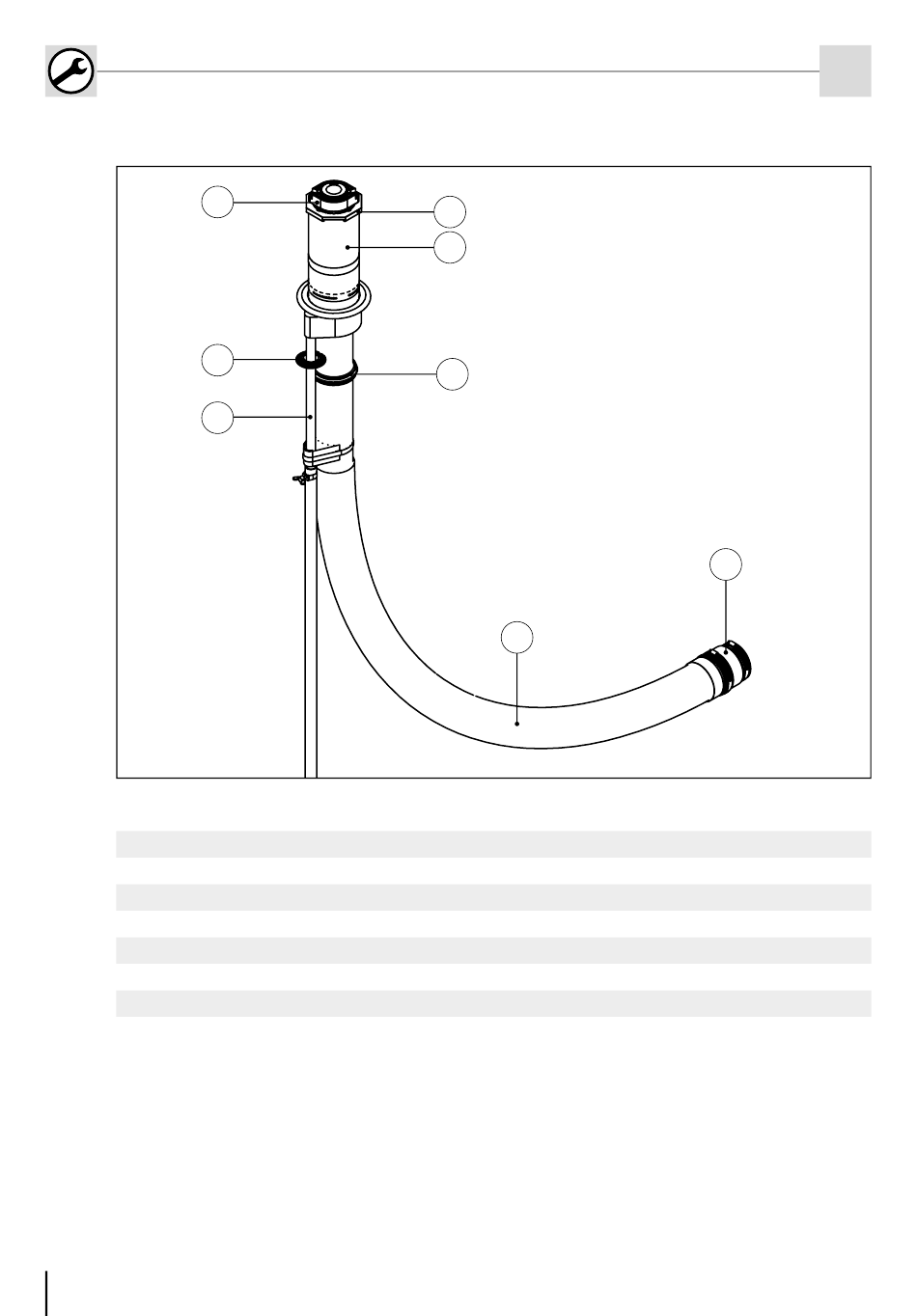

Legend for Fig: ESH Basic-FUBO-GK/MBK
1 Area seal element
2 ESH Basic-MBK seal insert for ESH Basic-FUBO-GK component
3 ESH Basic-FUBO-GK component
4 Water barrier flange
5 3-ribbed seal
6 Setup device, height-adjustable with ground spike
7 14078 KES spiral hose with casing pipe
8 MS78-U1/24-52 sleeve cap
