ESH Basic-FUBO-GK/MBK - Single-line building package
for buildings without a basement
Then sufficiently apply GMT lubricant to the seal ring on the
2
pipe end of the seal insert (see Fig.: 25).
Insert ESH Basic-MBK seal insert completely into the basic
3
body of the ESH Basic-FUBO-GK set in concrete with a slight
turning movement, until the flange of the seal insert touches
the finished floor or the upper edge of the basic body.
Then tighten the 4 internal hex screws until the yellow
control pin (see Fig.:27) close flush with the pressure plate
or a torque of 6 Nm has been achieved.
Legend for Fig.: 27
1 Yellow pressure pin/control pin
Then pull in the corresponding media line through the
4
protective pipe (see Fig.: 28).
The assembly of the area sealing elements takes place
according to the "PolySafe sealing elements and sleeve
caps" and "PolySafe twisting and interlocking pro-
tection MS-Schuck DN25/32/40 or MS-RMA DN25"
instructions included.
Insert individual sealing element into the ESH Basic-MBK
5
seal insert. Then tighten the flaps of the seal element with
the self-cutting internal hex screws as far as possible, until
they are flush with the inner plate of the ESH (see Fig.: 29).
36
All manuals and user guides at all-guides.com
Art. Nr.: 5090033074 Rev.: 01/2018-09-05
EN

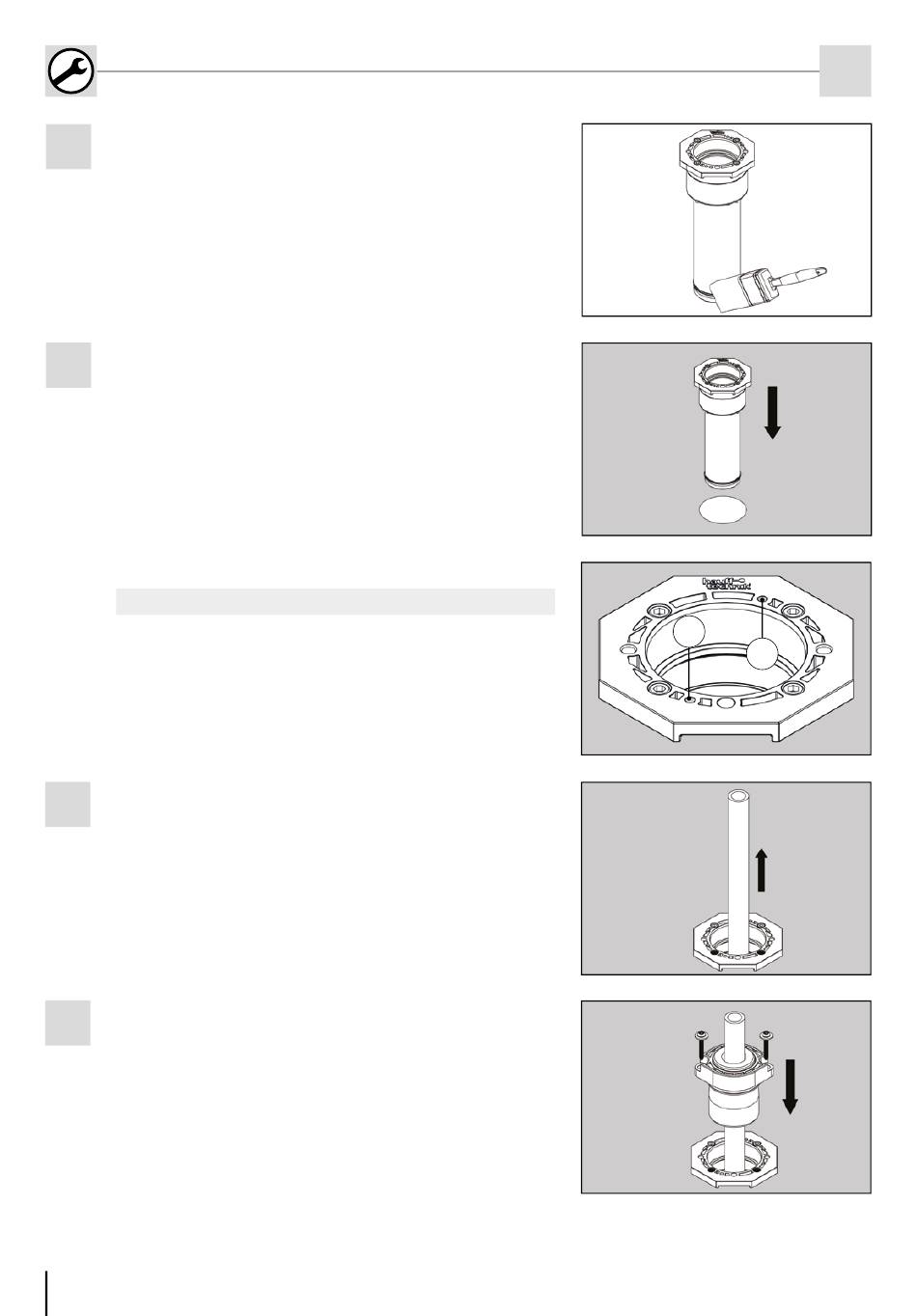

Fig.: 25
