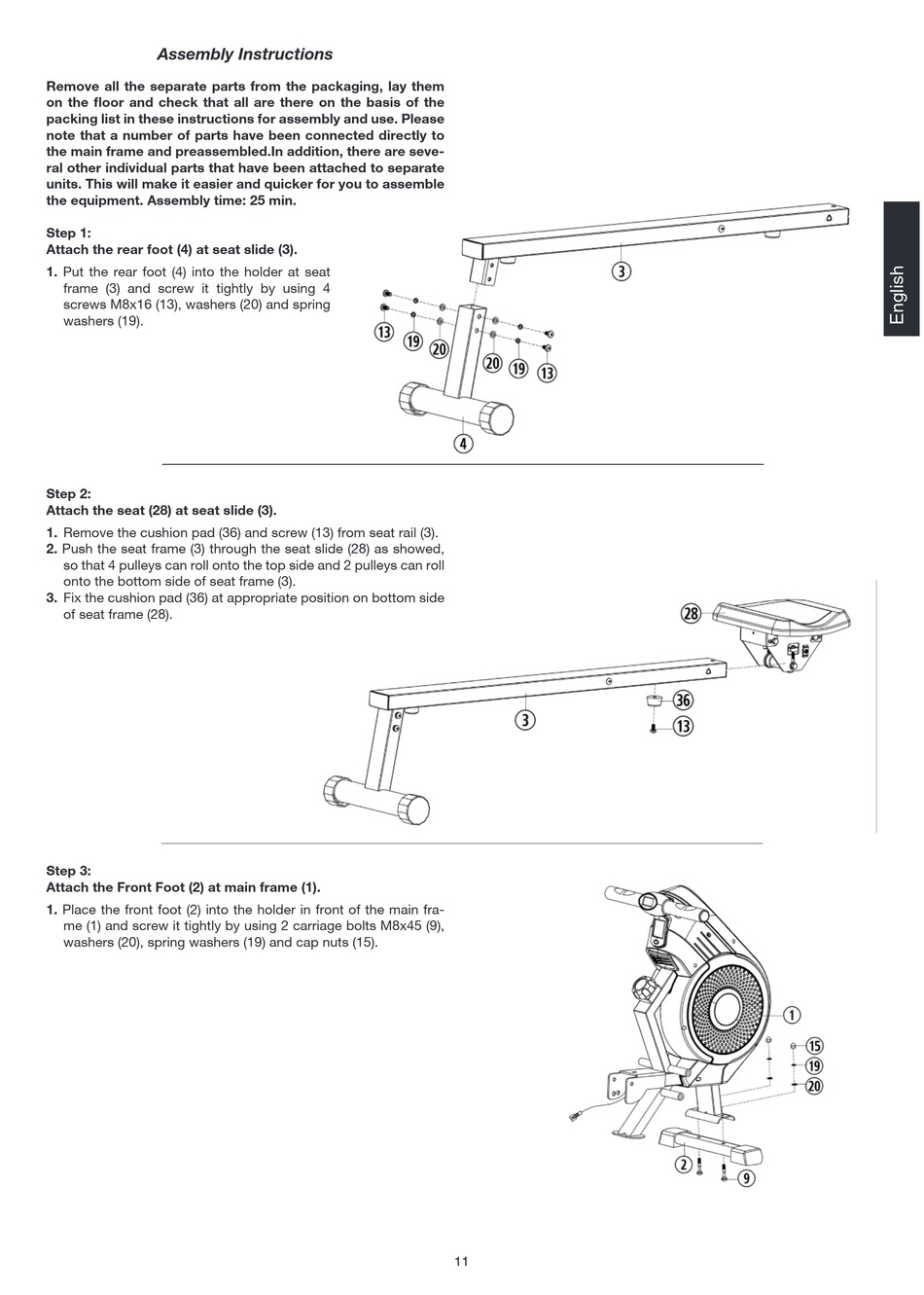

Assembly Instructions
Remove all the separate parts rom the packaging, lay them
on the oor and check that all are there on the basis o the
packing list in these instructions or assembly and use. Please
note that a number o parts have been connected directly to
the main rame and preassembled.In addition, there are seve-
ral other individual parts that have been attached to separate
units. This will make it easier and quicker or you to assemble
the equipment. Assembly time: 25 min.
Step 1:
Attach the rear oot (4) at seat slide (3).
1. Put the rear oot (4) into the holder at seat
rame (3) and screw it tightly by using 4
screws M8x16 (13), washers (20) and spring
washers (19).
Step 2:
Attach the seat (28) at seat slide (3).
1. Remove the cushion pad (36) and screw (13) rom seat rail (3).
2. Push the seat rame (3) through the seat slide (28) as showed,
so that 4 pulleys can roll onto the top side and 2 pulleys can roll
onto the bottom side o seat rame (3).
3. Fix the cushion pad (36) at appropriate position on bottom side
o seat rame (28).
Step 3:
Attach the Front Foot (2) at main rame (1).
1. Place the ront oot (2) into the holder in ront o the main ra-
me (1) and screw it tightly by using 2 carriage bolts M8x45 (9),
washers (20), spring washers (19) and cap nuts (15).
11
