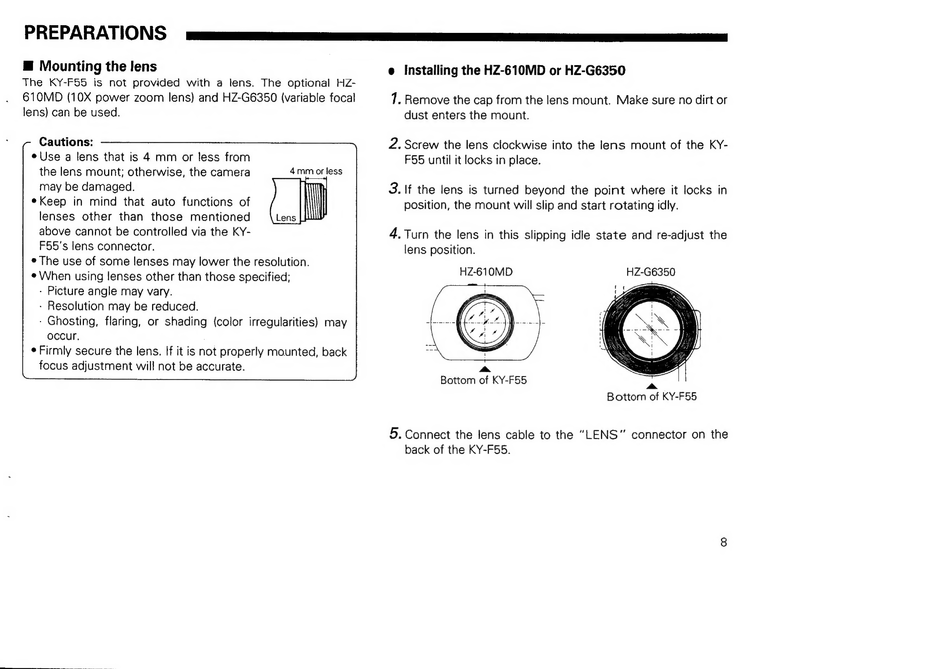

PREPARATIONS
H Mounting the lens
The
KY-F55
is not provided
with
a lens. The optional
HZ-
610MD (10X power zoom lens) and HZ-G6350 (variable focal
lens) can be used.
Cautions:
e Use a lens that is 4 mm
or less from
the lens mount; otherwise, the camera
may be damaged.
*Keep in mind that auto functions of
lenses
other than
those
mentioned
above cannot be controlled via the KY-
F55's lens connector.
e The use of some lenses may lower the resolution.
4mmor tess
¢ When using lenses other than those specified;
- Picture angle may vary.
- Resolution may be reduced.
- Ghosting, flaring, or shading (color irregularities) may
occur.
¢ Firmly secure the lens. If it is not properly mounted, back
focus adjustment will not be accurate.
e Installing the HZ-610MD or HZ-G6350
7. Remove the cap from the lens mount. Make sure no dirt or
dust enters the mount.
2. Screw the lens clockwise into the lens mount of the KY-
F55 until it locks in place.
3. If the lens is turned beyond the point where it locks in
position, the mount will slip and start rotating idly.
4, Turn the lens in this slipping idle state and re-adjust the
lens position.
HZ-610MD
HZ-G6350
a
Bottom of KY-F55
Pa
Bottom of KY-F55
5. Connect the lens cable to the "LENS"
connector on the
back of the KY-F55.
