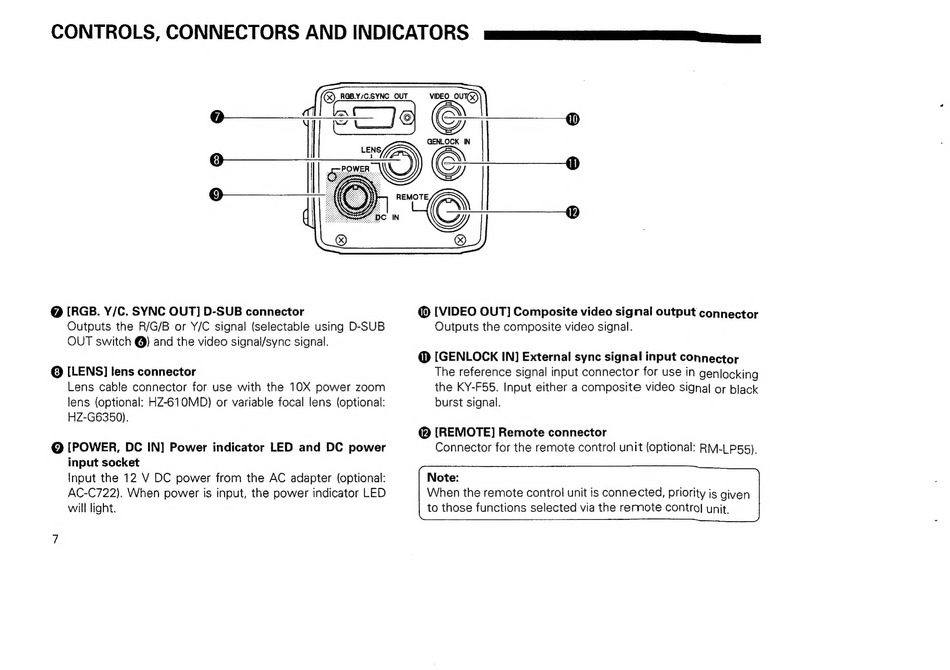

CONTROLS, CONNECTORS AND INDICATORS 9 mummmmees
(Camucane an 0)
@ [RGB. Y/C. SYNC OUT] D-SUB connector
Outputs the R/G/B or Y/C signal (selectable using D-SUB
OUT switch @) and the video signal/sync signal.
@ [LENS] lens connector
Lens cable connector for use with the 10X power zoom
lens (optional: HZ-610MD) or variable focal lens (optional:
HZ-G6350).
© [POWER, DC IN] Power indicator LED and DC power
input socket
Input the 12 V DC power from the AC adapter (optional:
AC-C722). When power is input, the power indicator LED
will light.
REMOTE
"©
IN
@
@ [VIDEO OUT] Composite video signal output connector
Outputs the composite video signal.
@ [GENLOCK IN] External sync signal input connector
The reference signal input connector for use in genlocking
the KY-F55. Input either a composite video signal or black
burst signal.
@ [REMOTE] Remote connector
Connector for the remote control unit (optional: RM-LP55).
Note:
When the remote control unit is connected, priority is given
to those functions selected via the remote contro! unit.
