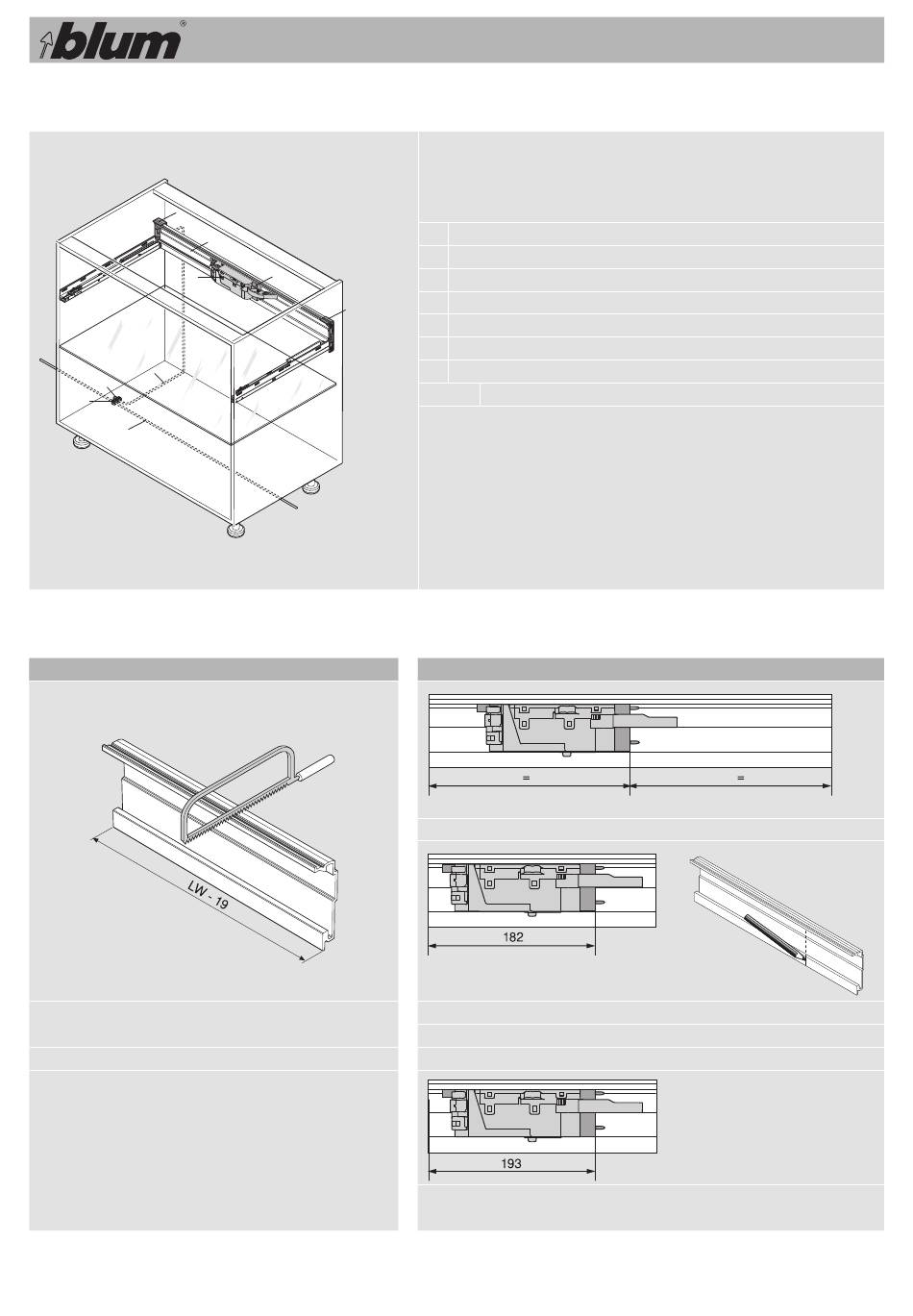

Korpus mit einzelnem Auszugselement – Trägerprofil horizontal
18
5
8a
7
6
8
Planungsinformation
Ablängen Trägerprofil
Zuschnittsmaße für das Trägerprofil horizontal
LW
Lichte Weite
14
19
20
18
18
Trägerprofilaufnahme links/rechts
19
Trägerprofil horizontal
20
Adapter für Antriebseinheit
5
Antriebseinheit
6
Verbindungsknoten
7
Kabelendenschutz
8
Verteilerkabel zum Ablängen
8a
Trägerprofilkabel (für Stromversorgung)
Position der Antriebseinheit auf dem Trägerprofil
Korpusbreite ≥ 420–1.200 mm
Korpusbreite 275–420 mm
Rückwandhöhe N
N-Zarge mit Stahlrückwand für Korpusbreite 275–420 mm
