Dimensional Drawings - mundoclima MUCSR-H11 Serie Benutzer- Oder Installationshandbuch

Installation cover's rope
Tap Screw
1.4

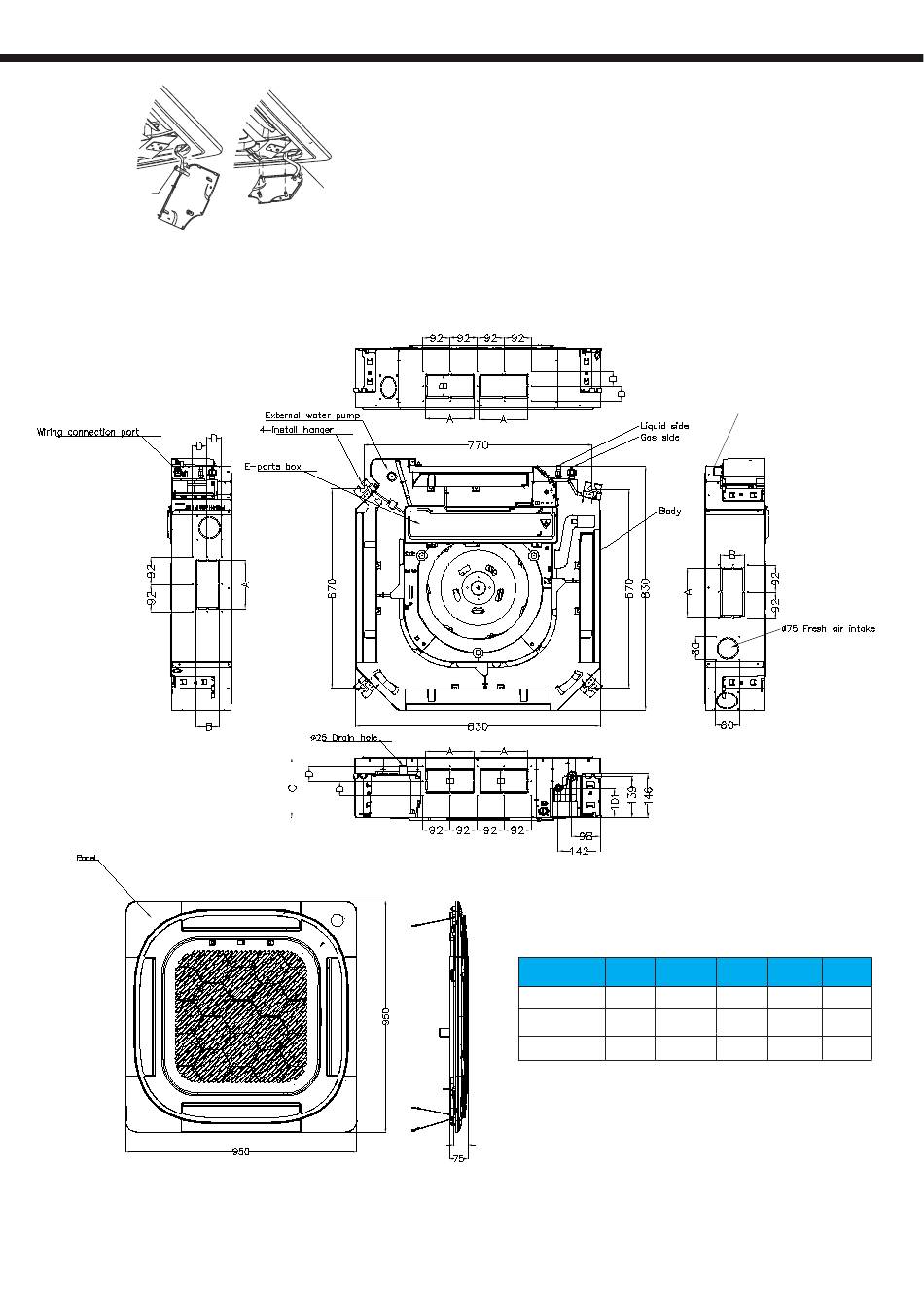

Dimensional drawings

Models 24 to 60:
Slide the four sliders
in the corresponding
channel when installing
the cover
Fig.1-14
54
Model
Unit A
(KBtu/h)
mm 165
24
30~36
mm 165
mm 165
42~60
Drain port (OD 25 mm)
B C D
80 204 50
100 245 60
100 287 60
