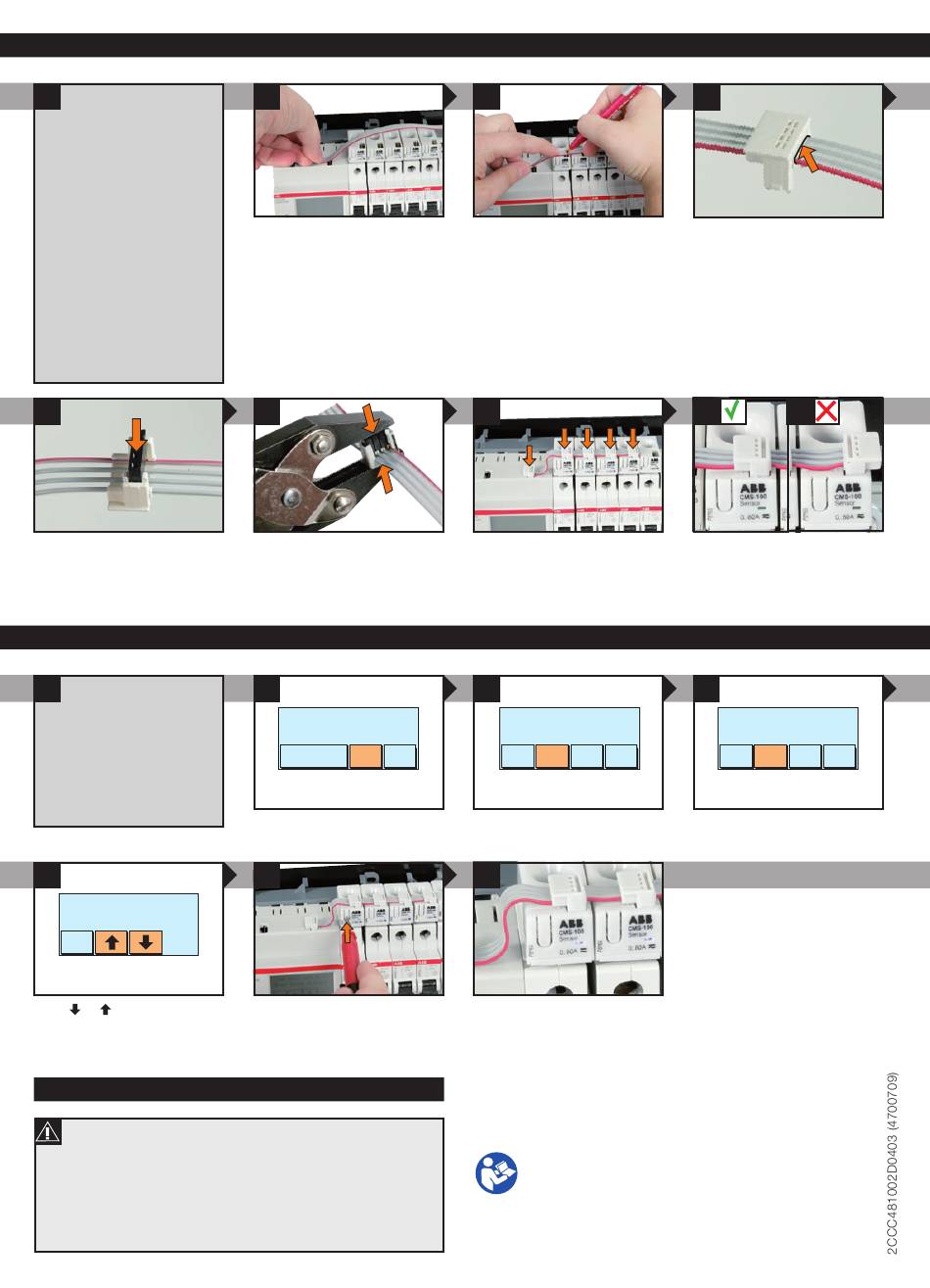

5. Cabling the sensors
i
• Use the connectors only once
• Connect a max. number of
32 sensors to each Control
Unit CMS-Bus interface
• Consider the maximum
flat cable length, see
User Manual CMS-700
(2CCC481011M0201)
• The flat cable should not
exert force to the sensor,
otherwise measuring
errors are possible
• Keep a distance of min.
5.5 mm from the flat cable
to uninsulated live parts
4
Put the connector at the position
of the marking into the connector
housing
6. Add sensors
i
• Connect the power supply
to the Control Unit
• The LEDs of not registered
sensors start to blink. If
LEDs do not blink, check
the cabling.
4
Add sensor with ID 1
Press button of sensor
Exit
Press
or
until the desired
sensor ID appears
WARNING
Failure to follow these instructions could result in death, personal
injury or property damage. The device should be installed by a
qualified person only.
If the components or devices do not appear to be in a proper
condition, they must be replaced.
1
Put the flat cable onto the CMS-
Bus interfaces
5
Press togehter the connector
and the connector housing with
a parallel pliers tool.
Repeat that process at the other
markings
1
CMS
Main
Measure
Edit
About
Press «Edit»
5
Press push button of the sensor
2
Mark the desired placement of
the connectors with a pen
6
Plug the connectors to the
Control Unit and the sensors
2
Edit configuration
Sen-
Mod-
Exit
More
sors
bus
Press «Sensors»
6
Initialized sensors light up
continuously
Mind the instructions in
the user manual
3
Press the flat cable into the cable
duct of the connector housing
7
7
Plug the connectors to the sensors
with the longer side to the left
3
Edit
sensors
-
Re
Set-
Exit
Add
move
tings
Press «Add»
