1.3 Install the body
1) Move the machine with installed heat pipe
and fittings before the window, and the
distance between the body and walls or
other objects shall be least 50 cm (as shown
in Fig.4).
2) Elongate the exhaust pipe and snap the
flat end of the exhaust pipe joints into the
hole of the window sealing plate assembly
(as shown in Fig.5 and Fig.6) .
Notes: 1. the flat end of the exhaust pipe
joints must be snapped into place.
2. The pipe cannot be distorted nor has
substantial turning (greater than 45 °). Keep
the ventilation of the exhaust pipe not
blocked.

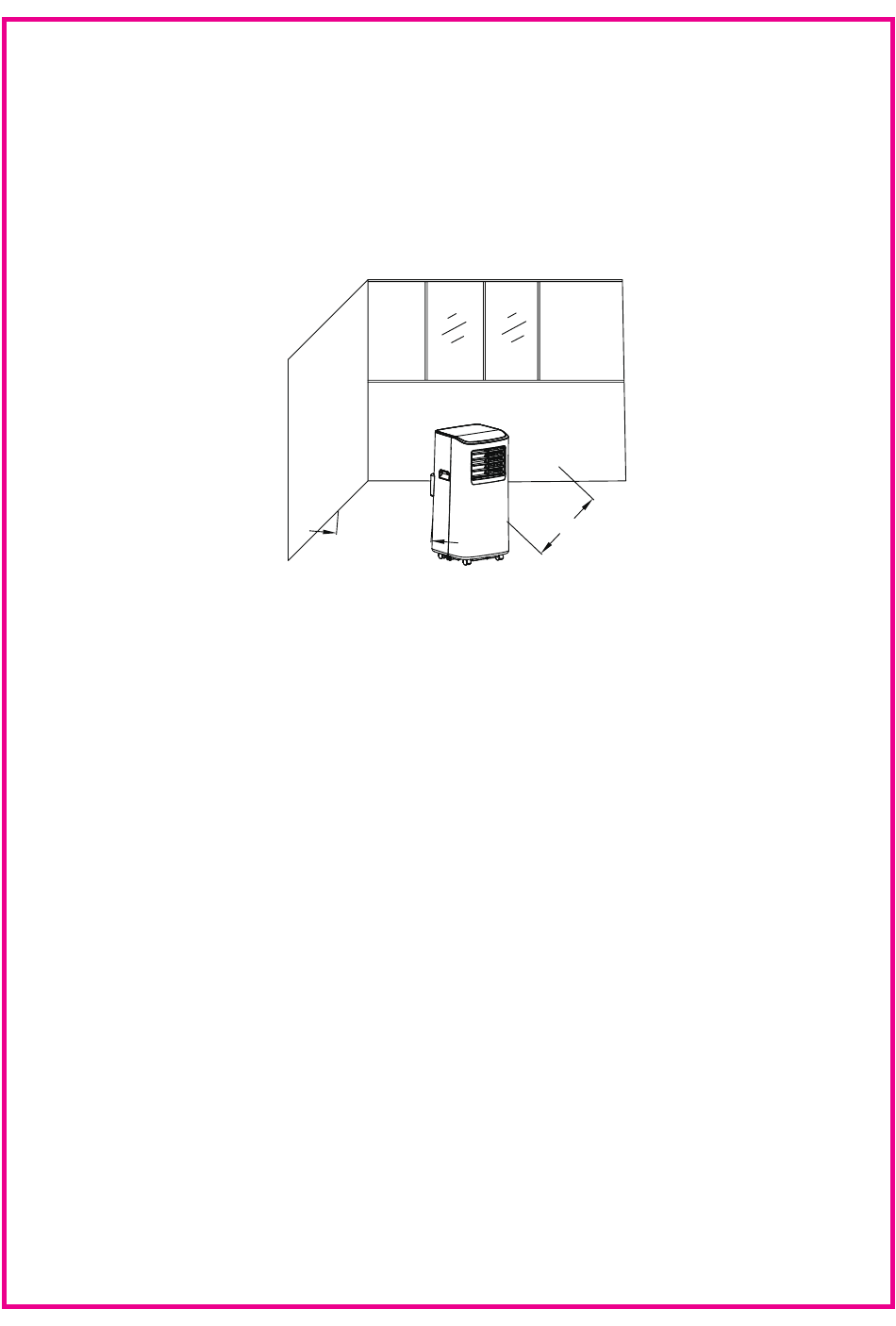

min:50cm
Figure 4
-58-
min:50cm
