1.2 Installation of window sealing plate
components
1) Half open the window, and mount the
window sealing plate assembly to the
window (as shown in Fig.2 and Fig.3).
Components can be placed in horizontal
and vertical direction.
2) Pull various components of the window
sealing plate assembly open, adjust their
opening distance to bring both ends of the
assembly into contact with the window
frame, and fix various components of the
assembly.1.2 Install the window sealing
plate assembly
Notes: 1) the flat end of the exhaust pipe
joints must be snapped into place.
2) The pipe cannot be distorted nor has
substantial turning (greater than 45 °). Keep
the ventilation of the exhaust pipe not
blocked.

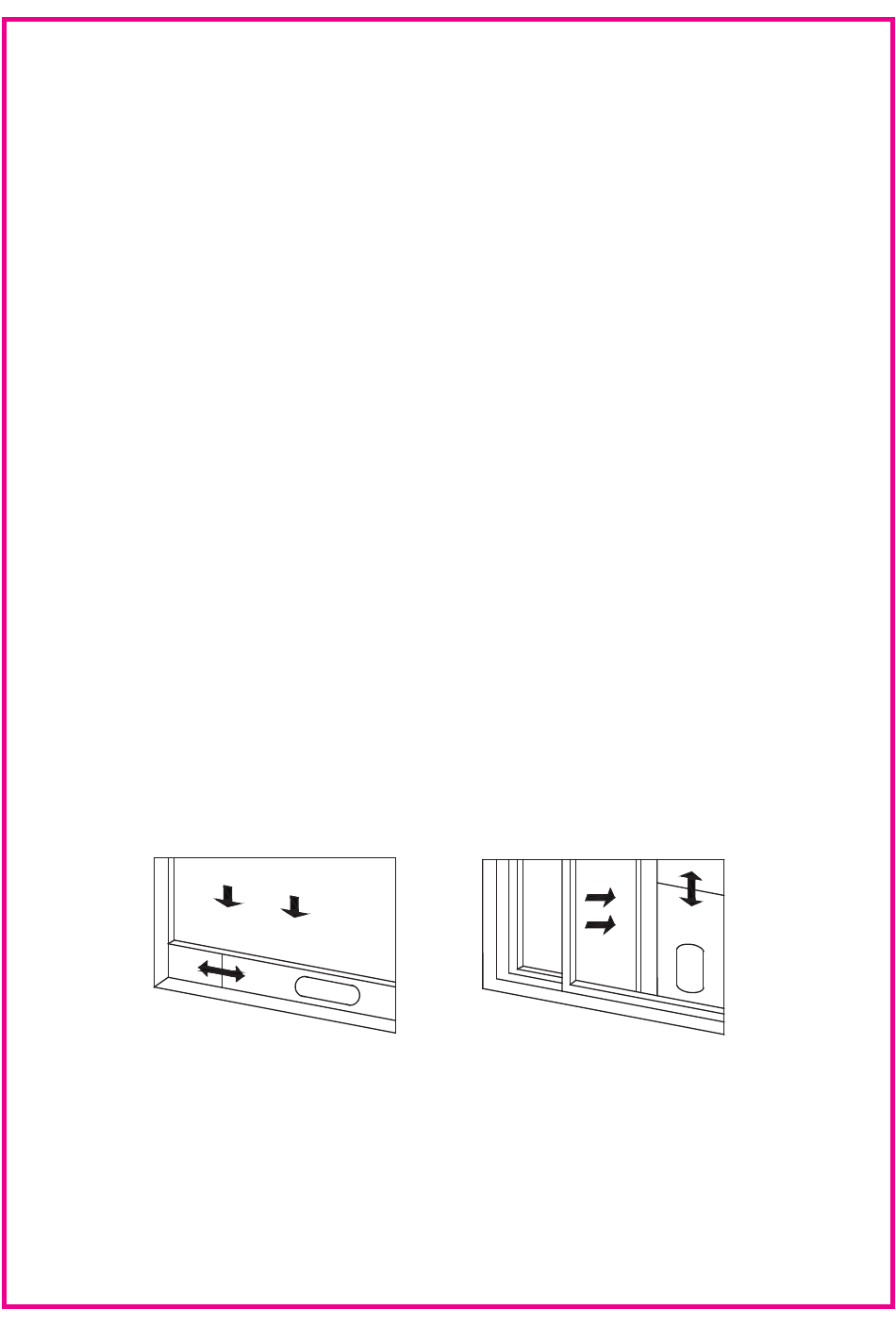

Figure 2 Figure 3
