Helios IsoPipe IP-DH 125 Montage- Und Betriebsvorschrift Seite 4

IsoPipe Roof Outlet IP-DH.. 125/160/180

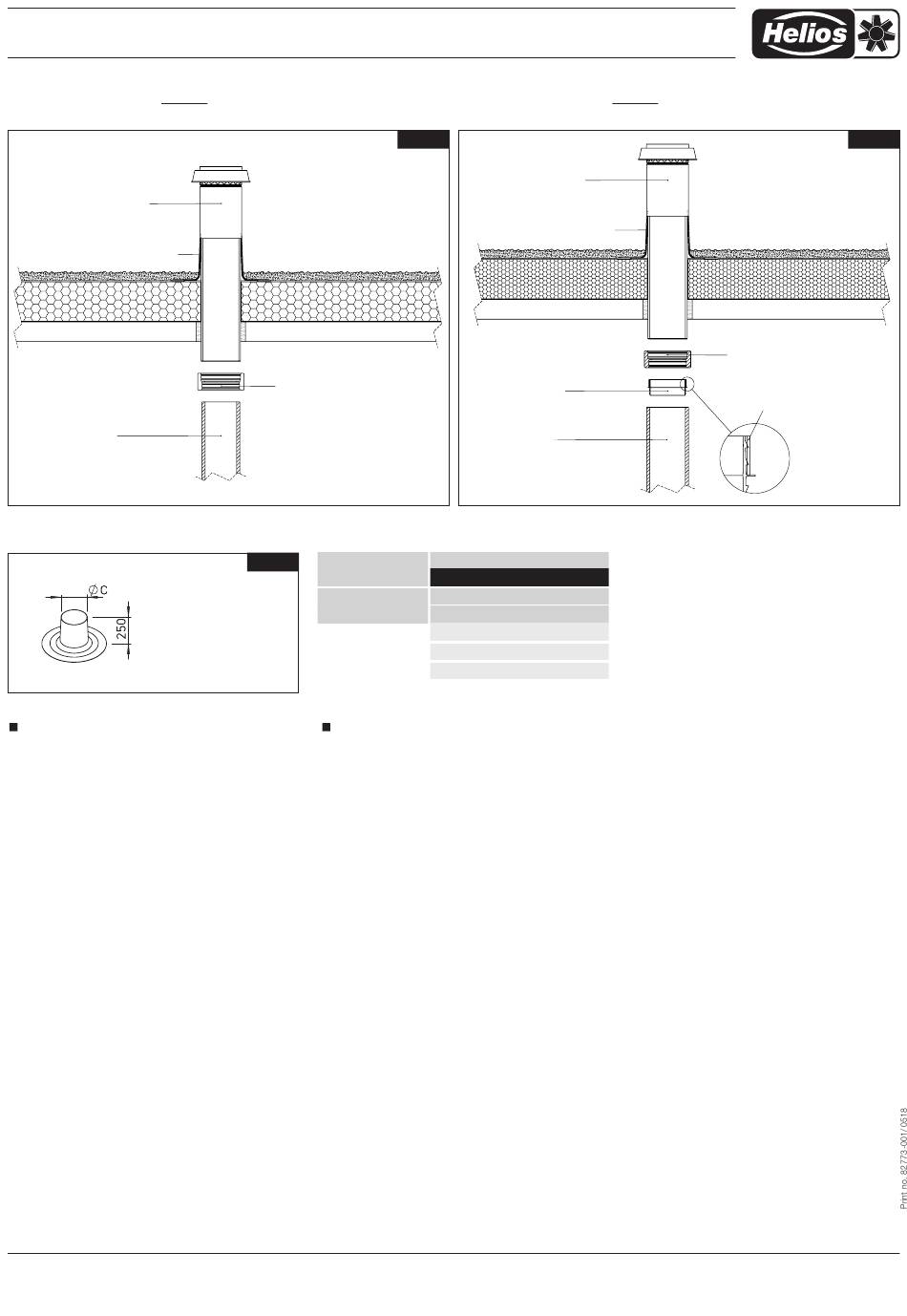

Fig. 6: Installation roof duct Flat roof DN 125 /160
Roof outlet IP-DH.. with roof tile for flat roof
Insulated roof outlet
Isolierte Dachhaube
IP-DH.. 125, 160
Roof tile for flat roof
Dachpfanne für Flachdach
IP-FDP 125, 160
IsoPipe pipe
IsoPipe Rohr
IP 125, 160
Dimensions (see table)
– Roof tile for flat roof IP-FDP..
Outside
WARRANTY CLAIMS –
EXCLUSION OF LIABILITY
If the preceding instructions are not observed all war-
ranty claims and accommodation treatments are exclu-
ded. This also applies to any liability claims extended to
the manufacturer.
Errors and technical changes reserved!
Service and Information
D HELIOS Ventilatoren GmbH & Co · Lupfenstraße 8 · 78056 VS-Schwenningen
CH HELIOS Ventilatoren AG · Tannstraße 4 · 8112 Otelfingen
A HELIOS Ventilatoren · Postfach 854 · Siemensstraße 15 · 6023 Innsbruck
EPP sleeve
EPP-Muffe
(im Lieferumfang IP-DH.. enthalten)
(included in IP-DH.. delivery)
Fig.8
IsoPipe ®
IP-FDP..
– Roof tile
for flat roof
All dim. in mm
REGULATIONS – GUIDELINES
If the product is installed correctly and used to its in-
tended purpose, it conforms to all applicable regulati-
ons and guidelines at its date of manufacture.
Fig. 7: Installation roof duct Flat roof DN 180
Roof outlet IP-DH.. with roof tile for flat roof
Fig.6
Insulated roof outlet
Isolierte Dachhaube
IP-DH.. 180
Roof tile for flat roof
Dachpfanne für Flachdach
IP-FDP 180
Internal connector
Innenverbinder
IP-IV 180
IsoPipe pipe
IsoPipe Rohr
IP 180
ø 125 / 160 / 180 mm
Ref. Dim. in mm
Type
no. ø C
IP-FDP 125
3544 158
IP-FDP 160 3545 203
IP-FDP 180 3545 203
F HELIOS Ventilateurs · Le Carré des Aviateurs · 157 av. Charles Floquet · 93155 Le Blanc Mesnil Cedex
GB HELIOS Ventilation Systems Ltd. · 5 Crown Gate · Wyncolls Road · Severalls Industrial Park ·
Colchester · Essex · CO4 9HZ
Fig.7
EPP sleeve
EPP-Muffe
(included in IP-DH.. delivery)
(im Lieferumfang IP-DH.. enthalten)
IP-KLB (thickness 3mm)
Klebeband isoliert
IP-KLB (Dicke 3mm)
attach to internal connec-
auf Innenverbinder kleben
tor and cut to size
und zuschneiden
