dirna Bergstrom bycool green line COMPACT 1.4 Montageanweisungen Seite 20

COMPACT 1.4
EN

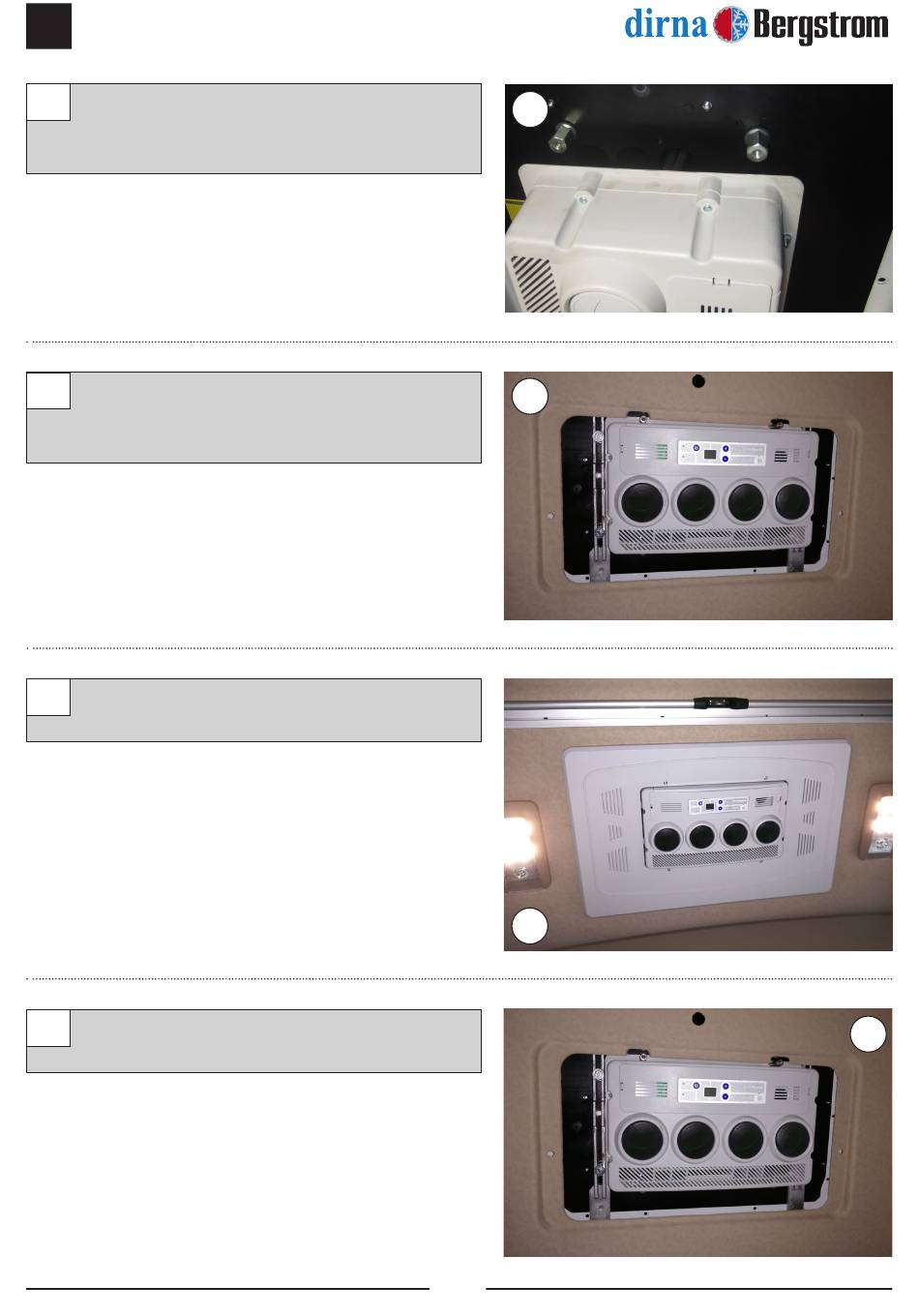

9
Screw (4) L=26 hexagons in the inserts in the base
of the unit with a rubber washer and a flat washer,
and tighten with a torque of 12.7±10% Nm.
10
Position fastening brackets with (4) 8/125x45
screws with flat washer and grower washer,
without tightening.
11
Position the console and align the unit. Once
aligned, remove the console.
12 Secure the fastening brackets by tightening the
M8/125x45 screws.
9
10
11
20
®
12
