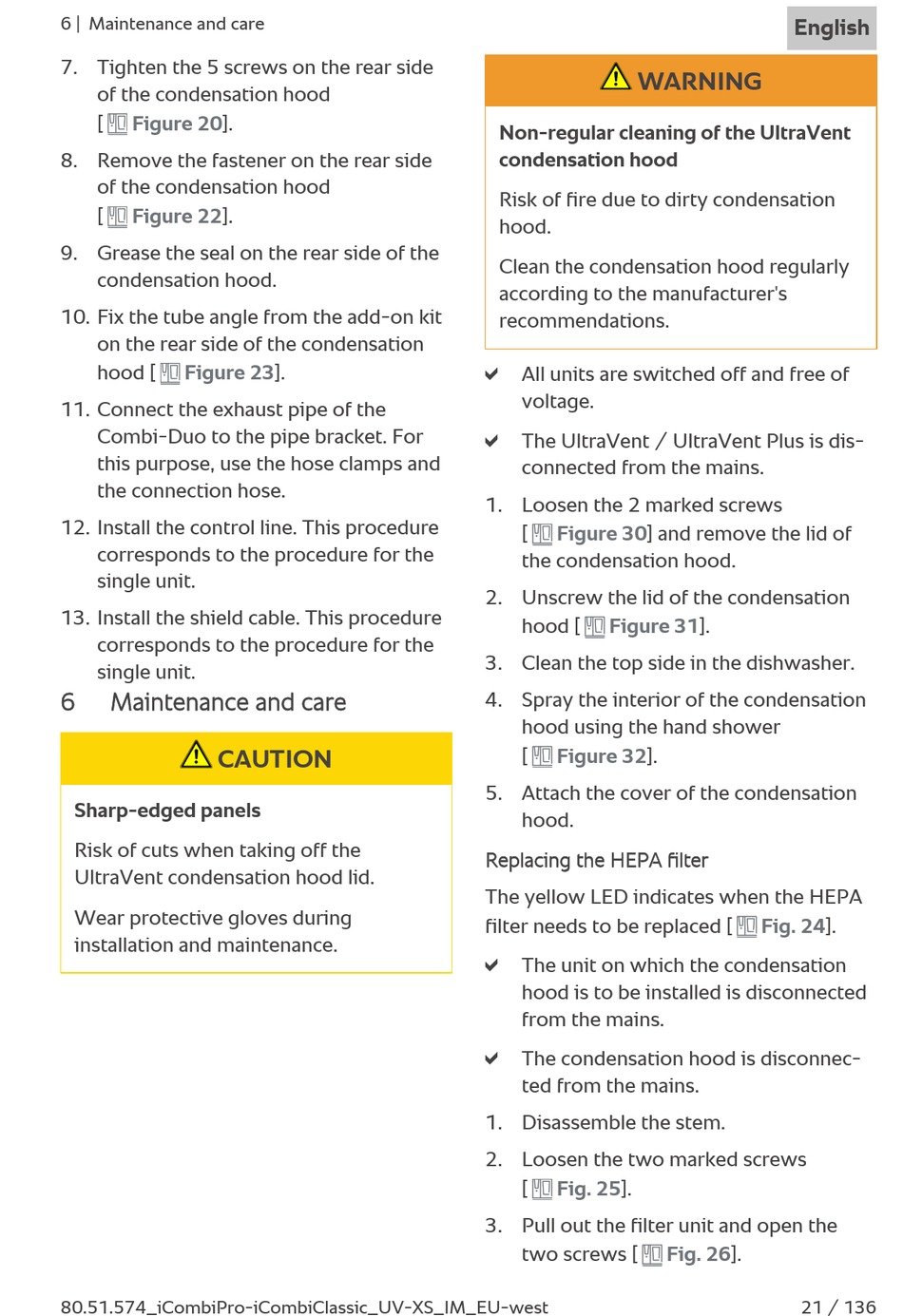

6 | Maintenance and care

7. Tighten the 5 screws on the rear side
of the condensation hood
[
Figure
20].
8. Remove the fastener on the rear side
of the condensation hood
[
Figure
22].
9. Grease the seal on the rear side of the
condensation hood.
10. Fix the tube angle from the add-on kit
on the rear side of the condensation
hood [
Figure
11. Connect the exhaust pipe of the
Combi-Duo to the pipe bracket. For
this purpose, use the hose clamps and
the connection hose.
12. Install the control line. This procedure
corresponds to the procedure for the
single unit.
13. Install the shield cable. This procedure
corresponds to the procedure for the
single unit.
6
Maintenance and care
CAUTION
Sharp-edged panels
Risk of cuts when taking off the
UltraVent condensation hood lid.
Wear protective gloves during
installation and maintenance.
80.51.574_iCombiPro-iCombiClassic_UV-XS_IM_EU-west
23].
WARNING
Non-regular cleaning of the UltraVent
condensation hood
Risk of fire due to dirty condensation
hood.
Clean the condensation hood regularly
according to the manufacturer's
recommendations.
a
All units are switched off and free of
voltage.
a
The UltraVent / UltraVent Plus is dis-
connected from the mains.
1. Loosen the 2 marked screws
[
Figure
30] and remove the lid of
the condensation hood.
2. Unscrew the lid of the condensation
hood [
Figure
3. Clean the top side in the dishwasher.
4. Spray the interior of the condensation
hood using the hand shower
[
Figure
32].
5. Attach the cover of the condensation
hood.
Replacing the HEPA filter
The yellow LED indicates when the HEPA
filter needs to be replaced [
a
The unit on which the condensation
hood is to be installed is disconnected
from the mains.
a
The condensation hood is disconnec-
ted from the mains.
1. Disassemble the stem.
2. Loosen the two marked screws
[
Fig.
25].
3. Pull out the filter unit and open the
two screws [
English
31].
Fig.
24].
Fig.
26].
21 / 136
