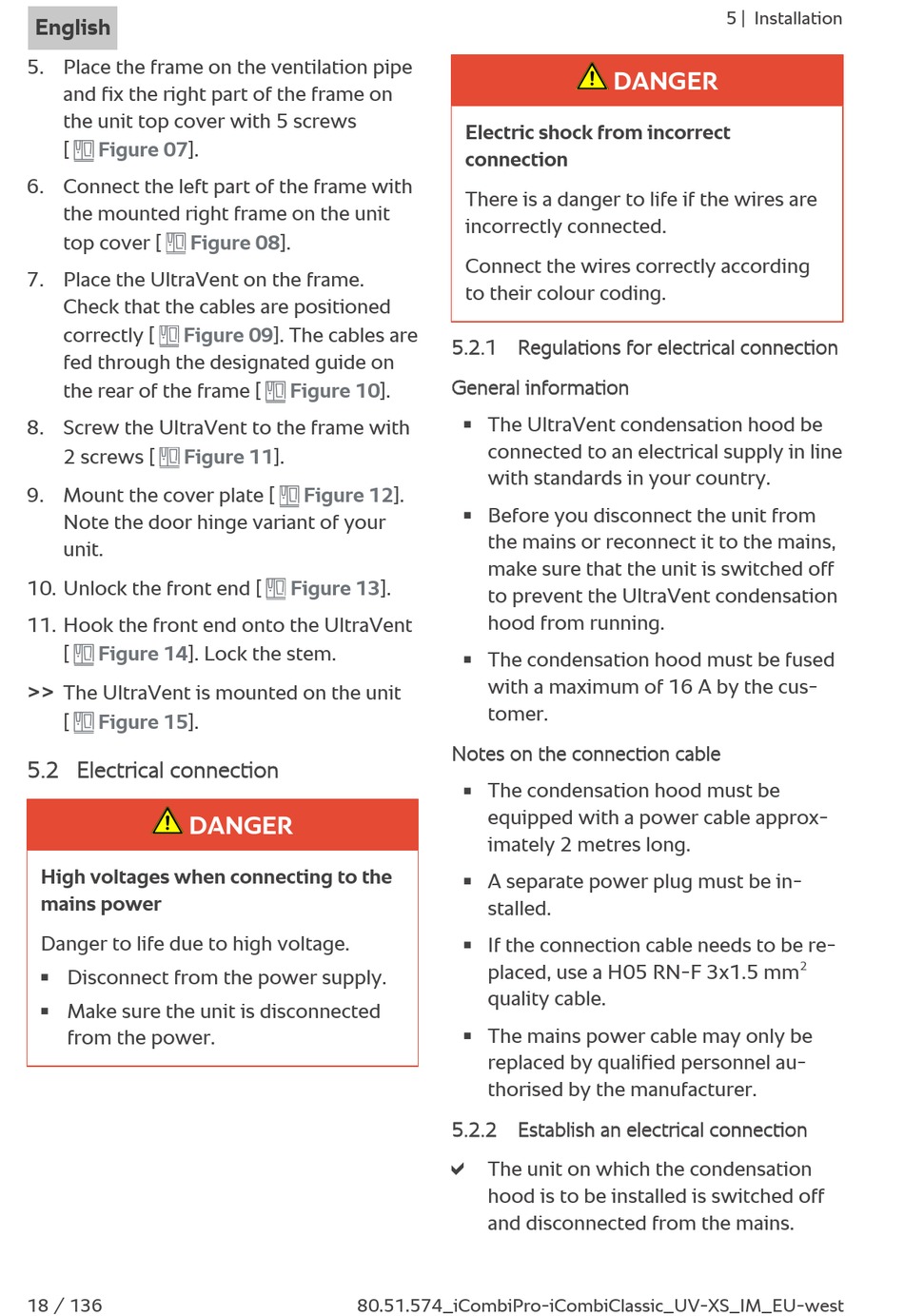

5. Place the frame on the ventilation pipe
and fix the right part of the frame on
the unit top cover with 5 screws
[ Figure 07].
6. Connect the left part of the frame with
the mounted right frame on the unit
top cover [ Figure
7. Place the UltraVent on the frame.
Check that the cables are positioned
correctly [ Figure
fed through the designated guide on
the rear of the frame [
8. Screw the UltraVent to the frame with
2 screws [ Figure
9. Mount the cover plate [
Note the door hinge variant of your
unit.
10. Unlock the front end [
11. Hook the front end onto the UltraVent
[ Figure 14]. Lock the stem.
>>
The UltraVent is mounted on the unit
[ Figure 15].

5.2 Electrical connection

DANGER
High voltages when connecting to the
mains power
Danger to life due to high voltage.
Disconnect from the power supply.
n
Make sure the unit is disconnected
n
from the power.
18 / 136
08].
09]. The cables are
Figure 10].
11].
Figure 12].
Figure 13].
80.51.574_iCombiPro-iCombiClassic_UV-XS_IM_EU-west
DANGER
Electric shock from incorrect
connection
There is a danger to life if the wires are
incorrectly connected.
Connect the wires correctly according
to their colour coding.

5.2.1 Regulations for electrical connection

General information
The UltraVent condensation hood be
n
connected to an electrical supply in line
with standards in your country.
Before you disconnect the unit from
n
the mains or reconnect it to the mains,
make sure that the unit is switched off
to prevent the UltraVent condensation
hood from running.
The condensation hood must be fused
n
with a maximum of 16 A by the cus-
tomer.
Notes on the connection cable
The condensation hood must be
n
equipped with a power cable approx-
imately 2 metres long.
A separate power plug must be in-
n
stalled.
If the connection cable needs to be re-
n
placed, use a H05 RN-F 3x1.5 mm
quality cable.
The mains power cable may only be
n
replaced by qualified personnel au-
thorised by the manufacturer.

5.2.2 Establish an electrical connection

a
The unit on which the condensation
hood is to be installed is switched off
and disconnected from the mains.
5 | Installation
2
