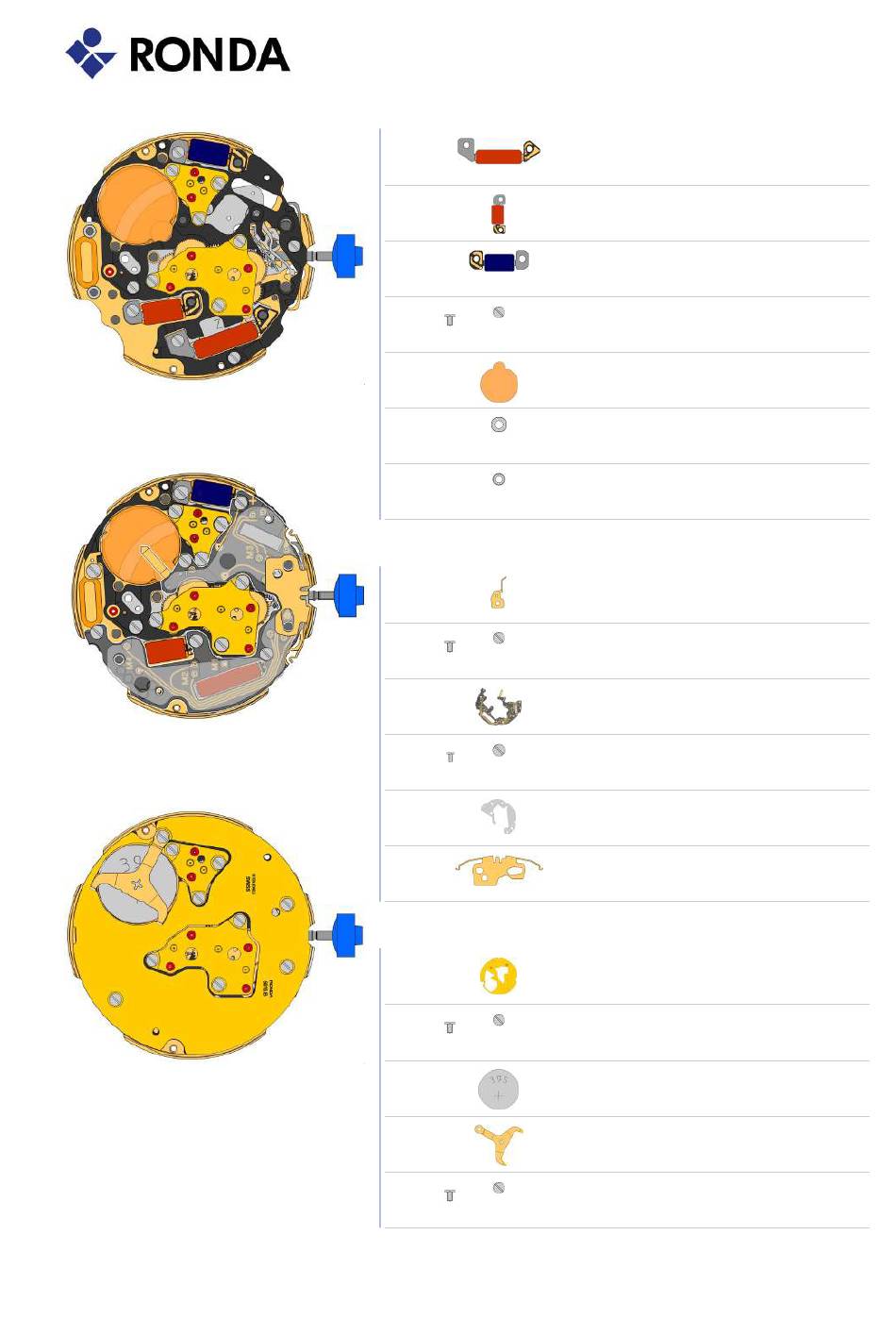

Technical Instructions 5010.B
3621.053.RK Coil
Attention: Please hold the coil only on the grey coil core. Coil held by 1
35.
screw 4000.250.
3621.079.RK Coil (centre)
Attention: Please hold the coil only on the grey coil core. Coil held by 1
36.
screw 4000.250.
3621.055.RK Coil (counter 6h)
37. Attention: Please hold the coil only on the grey coil core. Coil held by 1
screw 4000.250.
4000.250 Screw
38.
3603.034 Battery insulator
39.
3503.071 Tube
40.
3503.054 Tube
41.
3601.118 Contact strip
42. Contact strip held by 1 screw 4000.250.
4000.250 Screw
43.
3612.144.5010 Electronic module
Electronic
44.
measurements may be realised now.
4000.248 Screw
45.
3603.069 Circuit insulator
46.
3601.107.G Pusher contact spring
47.
2130.139.G.M01.5010B Electronic module cover
48. Electronic module cover held by 3 screws 4000.250.
4000.250 Screw
49.
3600.010.HGF Battery 395
50.
3601.109.G Bridle +
Bridle held by 1 screw 4000.250.
51.
4000.250 Screw
52.
module held by 5 screws 4000.248. Electronic
3
