2.4 Duty cycle

The rated duty cycle of a Welding Power Source is a statement of the time it may be operated
at its rated welding current output without exceeding the temperature limits of the insulation
of the component parts. To explain the 10 minute duty cycle period the following example
is used. Suppose a Welding Power Source is designed to operate at a 40% duty cycle,
185 amperes at 23 volts. This means that it has been designed and built to provide the
rated amperage (185A) for 4 minutes, i.e. arc welding time, out of every 10 minute period
(40% of 10 minutes is 4 minutes). During the other 6 minutes of the 10 minute period the
Welding Power Source must idle and be allowed to cool.
Safe
Operating
Region

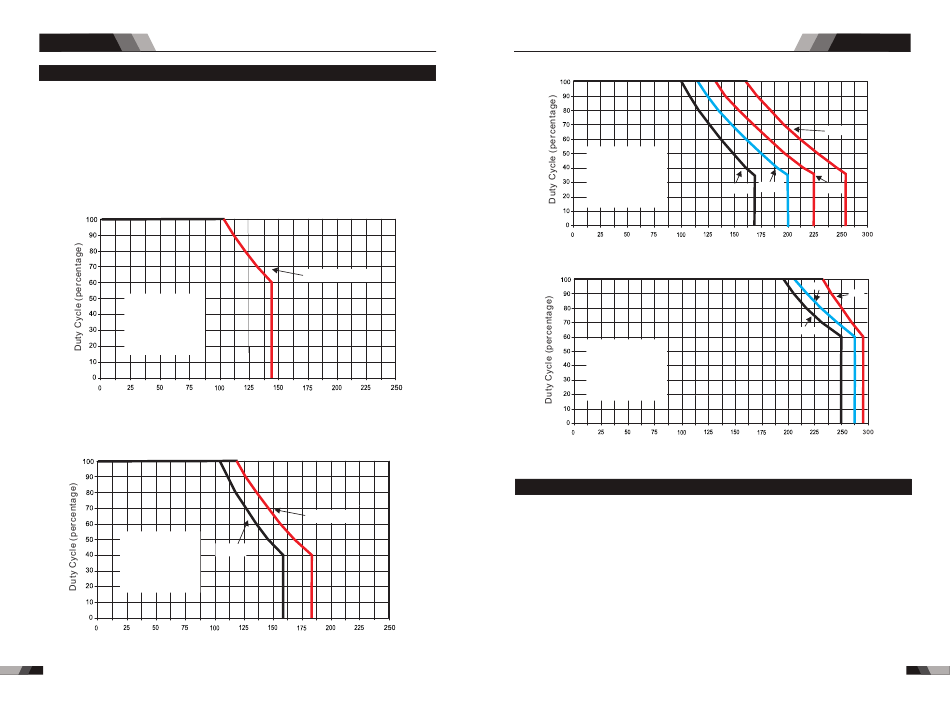

Welding Current (amps)
Safe
Operating
Region
Welding Current (amps)
55
MIG145
MIG/WIG/STICK
MIG185
MIG/TIG
MMA
MIG SERIES EQUIPMENT
MIG225 / MIG255
Safe
Operating
Region
Welding Current (amps)
Safe
Operating
Region
Welding Current (amps)

2.5 Packaged Items

MIG145
◆200 A electrode holder with 3m
◆300 A earth clamp with 3m
◆1.8m Gasverbindungsschlauch 8x13.5
◆Operating Manual
MIG185/MIG225/ MIG255
◆3m MB-15AK MIG Gun
◆200 A electrode holder with 3m
◆300 A earth clamp with 3m
◆1.8m Gasverbindungsschlauch 8x13.5
◆Operating Manual
Summary
MIG255
WIG
STICK MIG225
MIG295
WIG
MIG
STICK
MIG295
◆3m MB-24AK MIG Gun
◆200 A electrode holder with 3m
◆300 A earth clamp with 3m
◆1.8m Gasverbindungsschlauch 8x13.5
◆Operating Manual
