12 RS 232 interface

12.1 Technical data

RS 232 connection to output of weighing data
ASCII code
Baud rate 1200, 2400, 4800, 9600, 19200, 38400, 115200
8 data bits
No parity

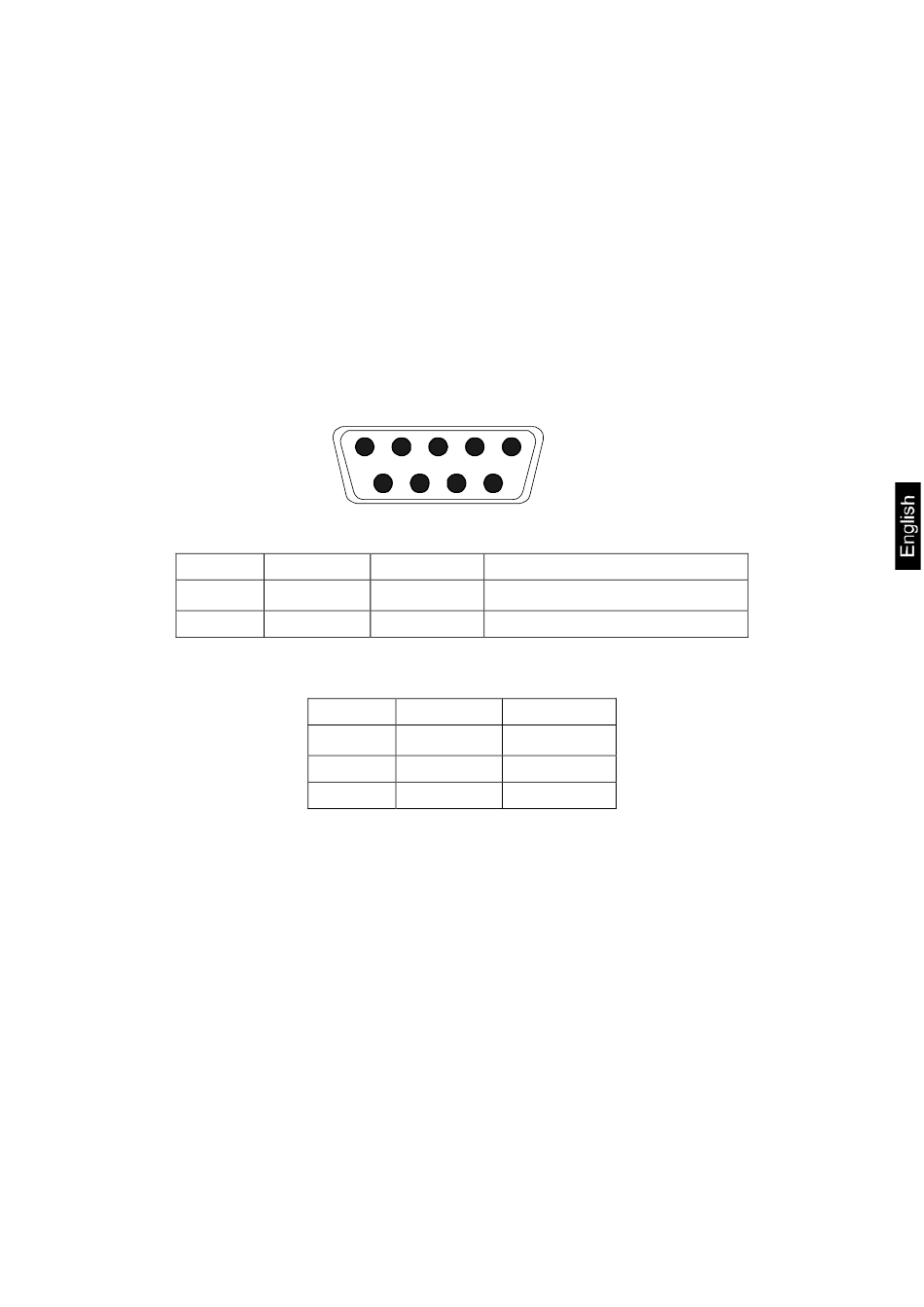

12.2 Pin allocation of balance output bushing:

Pin 2
Pin 3
Pin 5
9pin D Connector:
RFE-BA-e-2012
２ ３ ４ ５
１
６ ７ ８ ９
RXD Input
TXD Output
―
GND
Balance
―
Pin 2
―
Pin 3
―
Pin 5
Receiving data
Transmission data
Signal ground
computer
Pin 3
Pin 2
Pin 5
