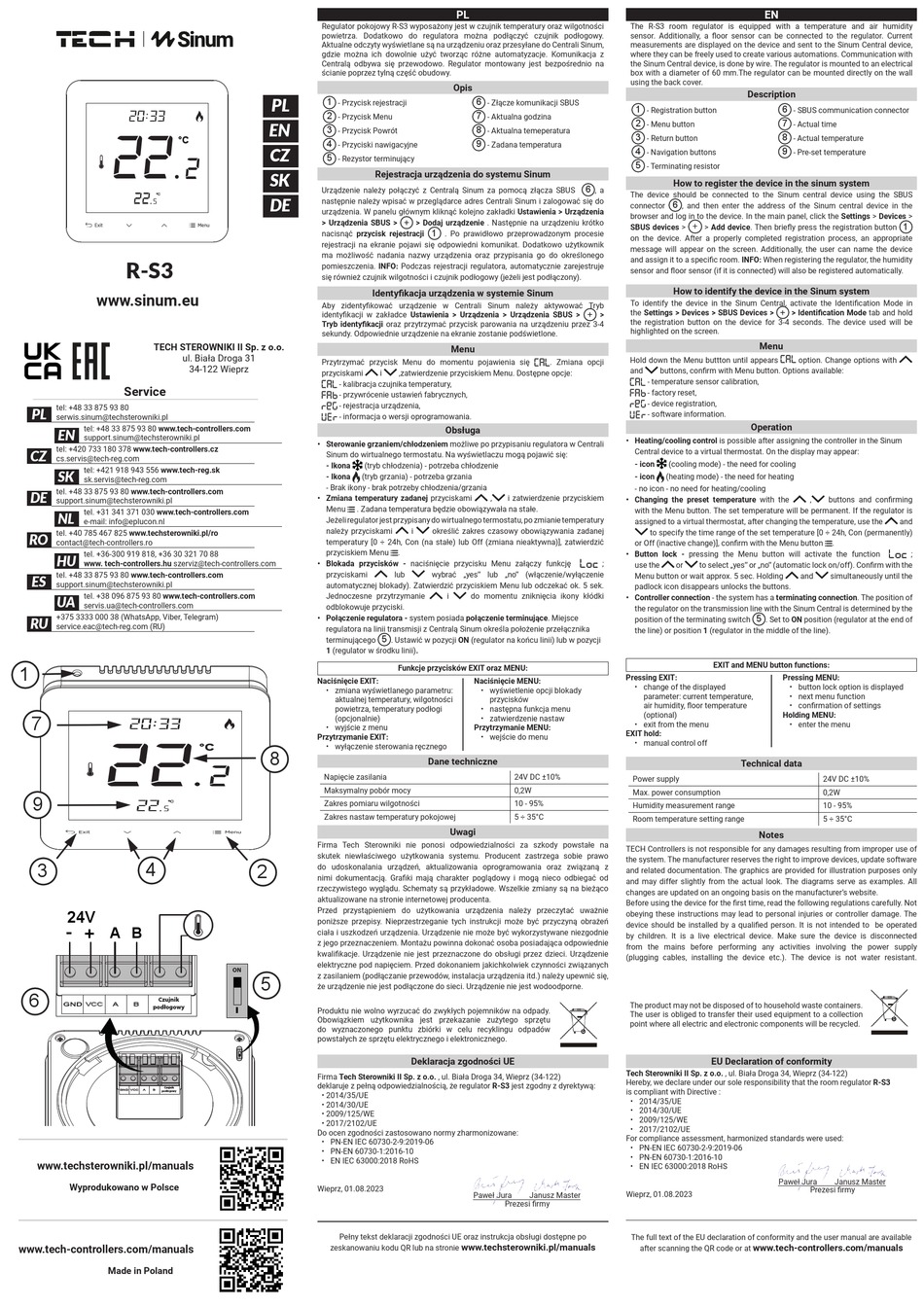

20 33
22
°C
2
22
°C
5
R-S3
www.sinum.eu
TECH STEROWNIKI II Sp. z o.o.
ul. Biała Droga 31
34-122 Wieprz
Service
tel: +48 33 875 93 80
PL
serwis.sinum@techsterowniki.pl
tel: +48 33 875 93 80 www.tech-controllers.com
EN
support.sinum@techsterowniki.pl
tel: +420 733 180 378 www.tech-controllers.cz
CZ
cs.servis@tech-reg.com
tel: +421 918 943 556 www.tech-reg.sk
SK
sk.servis@tech-reg.com
tel. +48 33 875 93 80 www.tech-controllers.com
DE
support.sinum@techsterowniki.pl
tel. +31 341 371 030 www.tech-controllers.com
NL
e-mail: info@eplucon.nl
tel. +40 785 467 825 www.techsterowniki.pl/ro
RO
contact@tech-controllers.ro
tel. +36-300 919 818, +36 30 321 70 88
HU
www. tech-controllers.hu szerviz@tech-controllers.com
tel. +48 33 875 93 80 www.tech-controllers.com
ES
support.sinum@techsterowniki.pl
tel. +38 096 875 93 80 www.tech-controllers.com
UA
servis.ua@tech-controllers.com
+375 3333 000 38 (WhatsАpp, Viber, Telegram)
RU
service.eac@tech-reg.com (RU)
1
7
20 33
22
9
22
°C
5
4
3
24V
-
+
A
B
6
Czujnik
VCC
A
B
podłogowy
Czujnik
VCC
A
B
podłogowy
www.techsterowniki.pl/manuals
Wyprodukowano w Polsce
www.tech-controllers.com/manuals
Made in Poland
Regulator pokojowy R-S3 wyposażony jest w czujnik temperatury oraz wilgotności
powietrza. Dodatkowo do regulatora można podłączyć czujnik podłogowy.
Aktualne odczyty wyświetlane są na urządzeniu oraz przesyłane do Centrali Sinum,
gdzie można ich dowolnie użyć tworząc różne automatyzacje. Komunikacja z
Centralą odbywa się przewodowo. Regulator montowany jest bezpośrednio na
ścianie poprzez tylną część obudowy.
PL
1
- Przycisk rejestracji
EN
2
- Przycisk Menu
EN
3
- Przycisk Powrót
4
- Przyciski nawigacyjne
CZ
5
- Rezystor terminujący
SK
Urządzenie należy połączyć z Centralą Sinum za pomocą złącza SBUS
DE
następnie należy wpisać w przeglądarce adres Centrali Sinum i zalogować się do
urządzenia. W panelu głównym kliknąć kolejno zakładki Ustawienia > Urządzenia
> Urządzenia SBUS >
nacisnąć przycisk rejestracji
rejestracji na ekranie pojawi się odpowiedni komunikat. Dodatkowo użytkownik
ma możliwość nadania nazwy urządzenia oraz przypisania go do określonego
pomieszczenia. INFO: Podczas rejestracji regulatora, automatycznie zarejestruje
się również czujnik wilgotności i czujnik podłogowy (jeżeli jest podłączony).
Identyfikacja urządzenia w systemie Sinum
Aby zidentyfikować urządzenie w Centrali Sinum należy aktywować Tryb
identyfikacji w zakładce Ustawienia > Urządzenia > Urządzenia SBUS >
Tryb identyfikacji oraz przytrzymać przycisk parowania na urządzeniu przez 3-4
sekundy. Odpowiednie urządzenie na ekranie zostanie podświetlone.
Przytrzymać przycisk Menu do momentu pojawienia się
przyciskami
- kalibracja czujnika temperatury,
- przywrócenie ustawień fabrycznych,
- rejestracja urządzenia,
- informacja o wersji oprogramowania.
• Sterowanie grzaniem/chłodzeniem możliwe po przypisaniu regulatora w Centrali
Sinum do wirtualnego termostatu. Na wyświetlaczu mogą pojawić się:
- Ikona
(tryb chłodzenia) - potrzeba chłodzenie
- Ikona
(tryb grzania) - potrzeba grzania
- Brak ikony - brak potrzeby chłodzenia/grzania
• Zmiana temperatury zadanej przyciskami
Menu
. Zadana temperatura będzie obowiązywała na stałe.
Jeżeli regulator jest przypisany do wirtualnego termostatu, po zmianie temperatury
należy przyciskami
temperatury [0 ÷ 24h, Con (na stałe) lub Off (zmiana nieaktywna)], zatwierdzić
przyciskiem Menu
• Blokada przycisków - naciśnięcie przycisku Menu załączy funkcję
przyciskami
automatycznej blokady). Zatwierdzić przyciskiem Menu lub odczekać ok. 5 sek.
Jednoczesne przytrzymanie
odblokowuje przyciski.
• Połączenie regulatora - system posiada połączenie terminujące. Miejsce
regulatora na linii transmisji z Centralą Sinum określa położenie przełącznika
terminującego
1 (regulator w środku linii).
Naciśnięcie EXIT:
• zmiana wyświetlanego parametru:
aktualnej temperatury, wilgotności
powietrza, temperatury podłogi
(opcjonalnie)
• wyjście z menu
Przytrzymanie EXIT:
°C
• wyłączenie sterowania ręcznego
8
2
Napięcie zasilania
Maksymalny pobór mocy
Zakres pomiaru wilgotności
Zakres nastaw temperatury pokojowej
Firma Tech Sterowniki nie ponosi odpowiedzialności za szkody powstałe na
skutek niewłaściwego użytkowania systemu. Producent zastrzega sobie prawo
2
do udoskonalania urządzeń, aktualizowania oprogramowania oraz związaną z
nimi dokumentacją. Grafiki mają charakter poglądowy i mogą nieco odbiegać od
rzeczywistego wyglądu. Schematy są przykładowe. Wszelkie zmiany są na bieżąco
aktualizowane na stronie internetowej producenta.
Przed przystąpieniem do użytkowania urządzenia należy przeczytać uważnie
poniższe przepisy. Nieprzestrzeganie tych instrukcji może być przyczyną obrażeń
ciała i uszkodzeń urządzenia. Urządzenie nie może być wykorzystywane niezgodnie
z jego przeznaczeniem. Montażu powinna dokonać osoba posiadająca odpowiednie
kwalifikacje. Urządzenie nie jest przeznaczone do obsługi przez dzieci. Urządzenie
elektryczne pod napięciem. Przed dokonaniem jakichkolwiek czynności związanych
ON
z zasilaniem (podłączanie przewodów, instalacja urządzenia itd.) należy upewnić się,
5
że urządzenie nie jest podłączone do sieci. Urządzenie nie jest wodoodporne.
Produktu nie wolno wyrzucać do zwykłych pojemników na odpady.
Obowiązkiem użytkownika jest przekazanie zużytego sprzętu
do wyznaczonego punktu zbiórki w celu recyklingu odpadów
powstałych ze sprzętu elektrycznego i elektronicznego.
ON
Firma Tech Sterowniki II Sp. z o.o. , ul. Biała Droga 34, Wieprz (34-122)
deklaruje z pełną odpowiedzialnością, że regulator R-S3 jest zgodny z dyrektywą:
• 2014/35/UE
• 2014/30/UE
• 2009/125/WE
• 2017/2102/UE
Do ocen zgodności zastosowano normy zharmonizowane:
• PN-EN IEC 60730-2-9:2019-06
• PN-EN 60730-1:2016-10
• EN IEC 63000:2018 RoHS
Wieprz, 01.08.2023
Pełny tekst deklaracji zgodności UE oraz instrukcja obsługi dostępne po
zeskanowaniu kodu QR lub na stronie
PL
Opis
6
- Złącze komunikacji SBUS
7
- Aktualna godzina
8
- Aktualna temeperatura
9
- Zadana temperatura
Rejestracja urządzenia do systemu Sinum
+
> Dodaj urządzenie . Następnie na urządzeniu krótko
1
. Po prawidłowo przeprowadzonym procesie
Menu
i
,zatwierdzenie przyciskiem Menu. Dostępne opcje:
Obsługa
,
i zatwierdzenie przyciskiem
i
określić zakres czasowy obowiązywania zadanej
.
lub
wybrać „yes" lub „no" (włączenie/wyłączenie
i
do momentu zniknięcia ikony kłódki
5
. Ustawić w pozycji ON (regulator na końcu linii) lub w pozycji
Funkcje przycisków EXIT oraz MENU:
Naciśnięcie MENU:
• wyświetlenie opcji blokady
przycisków
• następna funkcja menu
• zatwierdzenie nastaw
Przytrzymanie MENU:
• wejście do menu
Dane techniczne
24V DC ±10%
0,2W
10 - 95%
5 ÷ 35°C
Uwagi
Deklaracja zgodności UE
Paweł Jura
Janusz Master
Prezesi firmy
www.techsterowniki.pl/manuals
The R-S3 room regulator is equipped with a temperature and air humidity
sensor. Additionally, a floor sensor can be connected to the regulator. Current
measurements are displayed on the device and sent to the Sinum Central device,
where they can be freely used to create various automations. Communication with
the Sinum Central device, is done by wire. The regulator is mounted to an electrical
box with a diameter of 60 mm.The regulator can be mounted directly on the wall
using the back cover.
1
- Registration button
2
- Menu button
3
- Return button
4
- Navigation buttons
5
- Terminating resistor
How to register the device in the sinum system
6
, a
The device should be connected to the Sinum central device using the SBUS
6
connector
, and then enter the address of the Sinum central device in the
browser and log in to the device. In the main panel, click the Settings > Devices >
+
SBUS devices >
> Add device. Then briefly press the registration button
on the device. After a properly completed registration process, an appropriate
message will appear on the screen. Additionally, the user can name the device
and assign it to a specific room. INFO: When registering the regulator, the humidity
sensor and floor sensor (if it is connected) will also be registered automatically.
How to identify the device in the Sinum system
To identify the device in the Sinum Central, activate the Identification Mode in
+
the Settings > Devices > SBUS Devices >
>
the registration button on the device for 3-4 seconds. The device used will be
highlighted on the screen.
Hold down the Menu buttton until appears
. Zmiana opcji
and
buttons, confirm with Menu button. Options available:
- temperature sensor calibration,
- factory reset,
- device registration,
- software information.
• Heating/cooling control is possible after assigning the controller in the Sinum
Central device to a virtual thermostat. On the display may appear:
- icon
(cooling mode) - the need for cooling
- icon
(heating mode) - the need for heating
- no icon - no need for heating/cooling
• Changing the preset temperature with the
with the Menu button. The set temperature will be permanent. If the regulator is
assigned to a virtual thermostat, after changing the temperature, use the
to specify the time range of the set temperature [0 ÷ 24h, Con (permanently)
or Off (inactive change)], confirm with the Menu button
• Button lock - pressing the Menu button will activate the function
;
use the
or
to select „yes" or „no" (automatic lock on/off). Confirm with the
Menu button or wait approx. 5 sec. Holding
padlock icon disappears unlocks the buttons.
• Controller connection - the system has a terminating connection. The position of
the regulator on the transmission line with the Sinum Central is determined by the
position of the terminating switch
the line) or position 1 (regulator in the middle of the line).
EXIT and MENU button functions:
Pressing EXIT:
• change of the displayed
parameter: current temperature,
air humidity, floor temperature
(optional)
• exit from the menu
EXIT hold:
• manual control off
Power supply
Max. power consumption
Humidity measurement range
Room temperature setting range
TECH Controllers is not responsible for any damages resulting from improper use of
the system. The manufacturer reserves the right to improve devices, update software
and related documentation. The graphics are provided for illustration purposes only
and may differ slightly from the actual look. The diagrams serve as examples. All
changes are updated on an ongoing basis on the manufacturer's website.
Before using the device for the first time, read the following regulations carefully. Not
obeying these instructions may lead to personal injuries or controller damage. The
device should be installed by a qualified person. It is not intended to be operated
by children. It is a live electrical device. Make sure the device is disconnected
from the mains before performing any activities involving the power supply
(plugging cables, installing the device etc.). The device is not water resistant.
The product may not be disposed of to household waste containers.
The user is obliged to transfer their used equipment to a collection
point where all electric and electronic components will be recycled.
EU Declaration of conformity
Tech Sterowniki II Sp. z o.o. , ul. Biała Droga 34, Wieprz (34-122)
Hereby, we declare under our sole responsibility that the room regulator R-S3
is compliant with Directive :
• 2014/35/UE
• 2014/30/UE
• 2009/125/WE
• 2017/2102/UE
For compliance assessment, harmonized standards were used:
• PN-EN IEC 60730-2-9:2019-06
• PN-EN 60730-1:2016-10
• EN IEC 63000:2018 RoHS
Wieprz, 01.08.2023
The full text of the EU declaration of conformity and the user manual are available
after scanning the QR code or at
EN
Description
6
- SBUS communication connector
7
- Actual time
8
- Actual temperature
9
- Pre-set temperature
1
+
> Identification Mode tab and hold
Menu
option. Change options with
Operation
,
buttons and confirming
and
.
;
and
simultaneously until the
5
. Set to ON position (regulator at the end of
Pressing MENU:
• button lock option is displayed
• next menu function
• confirmation of settings
Holding MENU:
• enter the menu
Technical data
24V DC ±10%
0,2W
10 - 95%
5 ÷ 35°C
Notes
Paweł Jura
Janusz Master
Prezesi firmy
www.tech-controllers.com/manuals

Werbung

loading

Inhaltszusammenfassung für TECH Sinum R-S3

  • Seite 1 EU Declaration of conformity Tech Sterowniki II Sp. z o.o. , ul. Biała Droga 34, Wieprz (34-122) Firma Tech Sterowniki II Sp. z o.o. , ul. Biała Droga 34, Wieprz (34-122) Hereby, we declare under our sole responsibility that the room regulator R-S3 deklaruje z pełną...
  • Seite 2 Prehlásenie o zhode EÚ Elektro- und Elektronikgeräten abzugeben. EU-Konformitätserklärung Výrobce Tech Sterowniki II Sp. z o.o. ul. Biała Droga 31, 34-122 Wieprz, Polsko, Výrobca Tech Sterowniki II Sp. z o.o. ,ul. Biała Droga 31, 34-122 Wieprz, Polsko, tímto prohlašuje, že pokojový termostat R-S3 týmto vyhlasuje, že izbový...
