4. Instructions for measuring with a mobile device

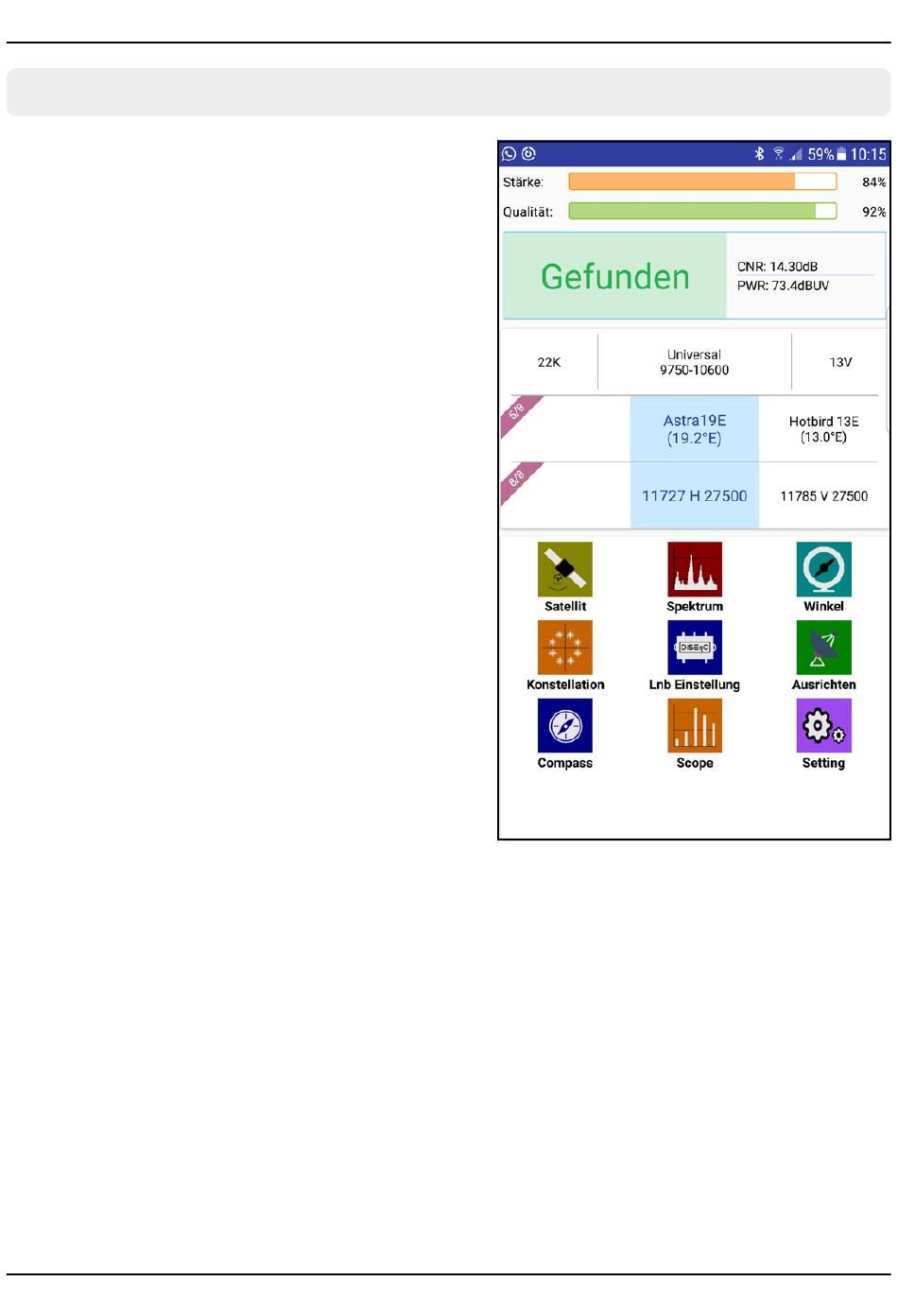

4.2 Main menu

Quality: Shows the signal quality in percent.
Strength: Shows the signal Strength in percent.
Lock: Indicates whether the selected satelli-
te was found or not.
CNR: Shows the CNR value of the signal.
PWR: Shows the level of the signal in dBμV.
22K: Shows the current 22k status.
Universal 9750-10600: Shows the LNB
type of the current satellite.
18V: Shows the current supply voltage. The
values are 13V, 18V and off.
Astra 19 E: Shows the currently selected sa-
tellite. Swipe left or right to switch between
satellites.
11953 H 27500: Shows the currently selec-
ted transponder. Swipe left or right to switch
between the transponders.
Satellit: Submenu to customize the satelli-
tes and transponders.
Spectrum: Opens the live spectrum for er-
ror analysis.
Angel: Calculation and display of azimuth and elevation of the antenna, according to
your local position.
Constellation: Opens the live constellation diagram.
LNB setting: Submenu for editing the LNB parameters for satellite and antenna.
Alignment: View of azimuth / elevation of the antenna by turning the mobile device.
Compass: Opens the compass function for coarse alignment.
Scope: Simultaneously displays signal information from 4 transponders on one screen.
Setting: Submenu for further system settings.
