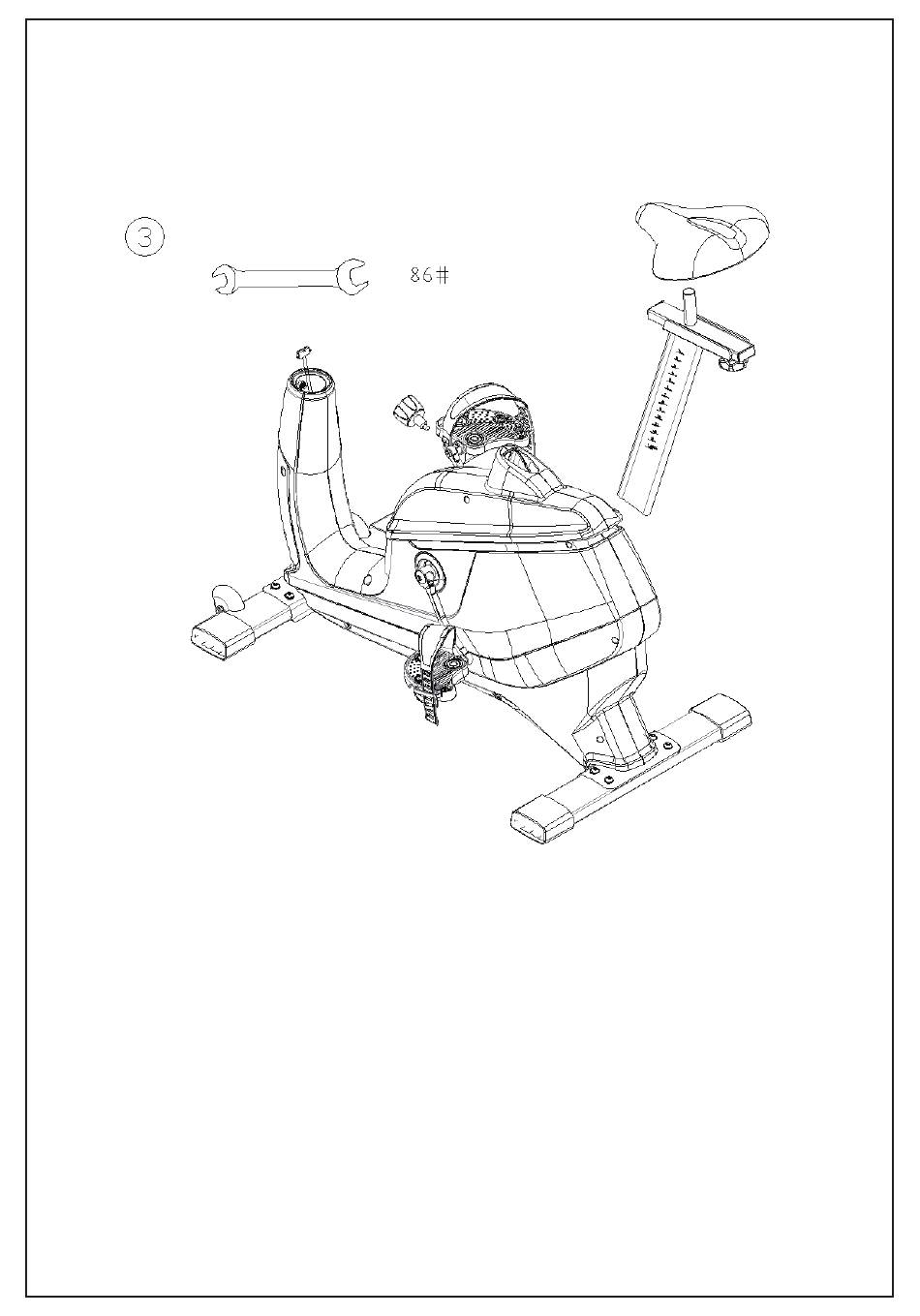

Step 3: Parts needed: Seat (No.71), Seat Post (No. 65), Spanner (No.86)
Place the seat support tube into the seat post tube on the main frame. Slacken the knob
(No.63) and pull the knob out to the desired height. Release and retighten the knob. Use the
knob (No.66) to adjust the seat front and rear.
Fix the seat (No.71) on the seat support tube, as shown in the diagram above, and lock the
nuts under the seat use spanner (No.86).
