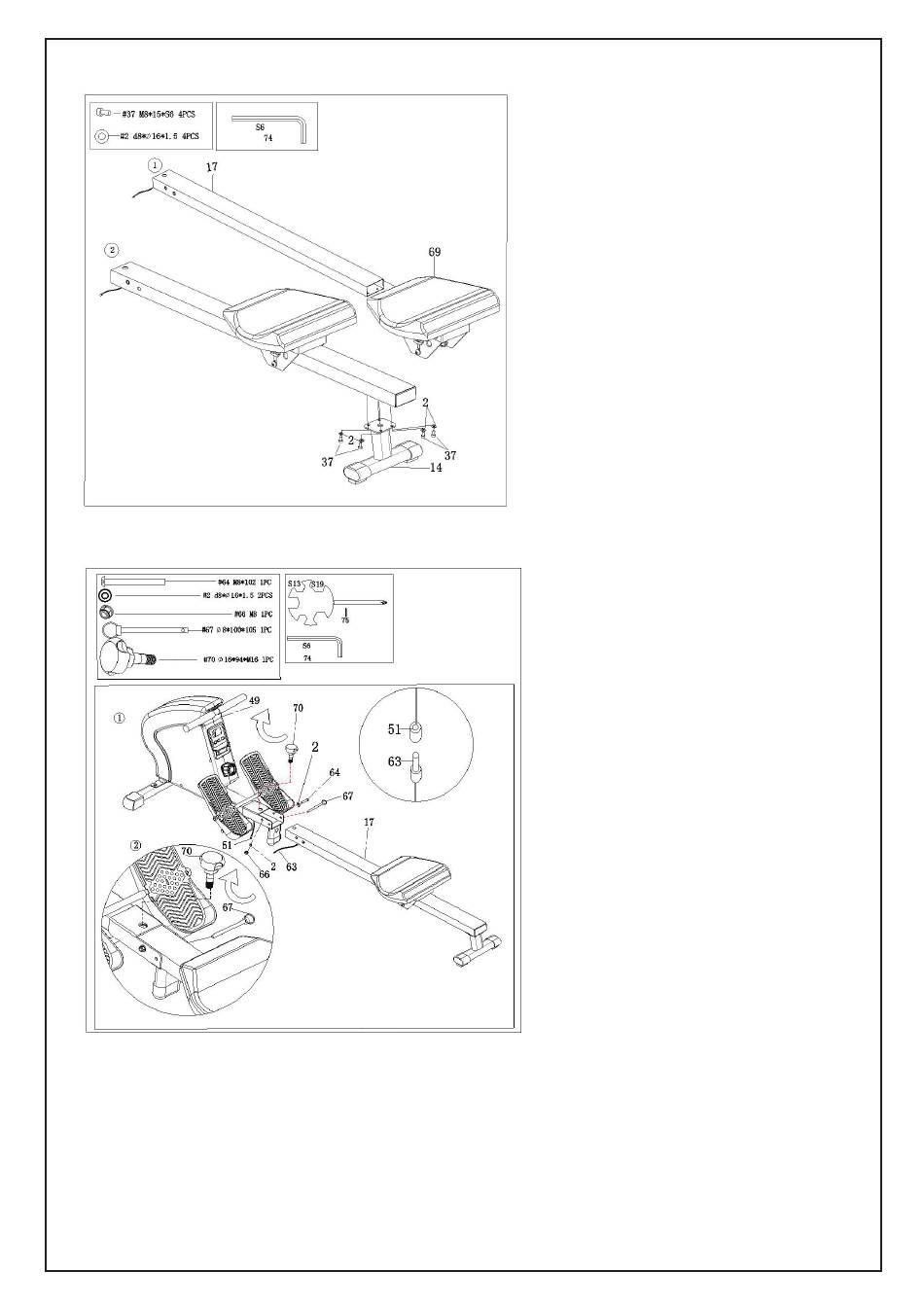

STEP 3:
Insert the Seat (No. 69) into the Slid-
ing Rail (No. 17).
Attach the Sliding Rail (No. 17) onto
the Rear Support (No. 14) using 4
Screws (No. 37) and 4 Washers (No.
2). Tighten and secure with Allen
Wrench (No. 74).
STEP 4:
Connect Trunk Wire 1 (No. 51) with
the Sensor Wire (No.63).
Attach the Sliding Rail (No. 17) to
Main Frame (No. 49) using Bolt (No.
64), 2 Washers (No. 2) and Nut (No.
66). Tighten and secure with Spanner
(No. 75) and Allen Wrench (No. 74).
Next, attach the top of the Sliding Rail
(No. 17) to the Main Frame (No. 49),
insert the Pull Pin (No. 67), then use
Knob (No. 70) to tighten.
