GRAPHITE 59G265 Benutzerhandbuch Seite 8

• Do not touch parts of the grinder that are in motion.
• A dust-proof protective mask and face-fitting safety goggles must
be worn. The dust produced when sanding gypsum surfaces is
harmful to health.
• Members of the public should not enter a room where plaster is
being ground with a sander. Nor should they eat or drink in such a
room.
• The sander must not be operated wet.
• Always keep the power cord of the machine away from moving parts
of the grinder.
If the power cord becomes damaged during operation,
disconnect the power supply immediately. DO NOT TOUCH THE
CABLE BEFORE DISCONNECTING THE POWER SUPPLY.
• WARNING. When the engine is switched off, the working disc is still
rotating.
• Keep the outstretched power cable away from the working disc.
• Do not allow children or anyone not familiar with the operating
instructions to operate the grinder.
• REMINDER. The operator or user is responsible for accidents or
hazards occurring to other persons or the environment.
Pull the plug out of the mains socket:
• every time you walk away from the device;
• before checking, cleaning or repairing the appliance;
• Repairs to the grinder should only be carried out by authorised persons.
• Only spare parts recommended by the manufacturer should be used.
MAINTENANCE AND STORAGE
• Keep all components in good condition to be sure the grinder will
work safely.
• Clean the motor cooling vents after each operation to prevent the
unit from overheating.
• Replace worn or damaged parts to maintain safety.
• Protect the grinder from moisture.
• Keep out of the reach of children.
• Use sandpaper of the correct type.
ATTENTION: The device is designed for indoor operation.
Despite the use of an inherently safe design, the use of safety
measures and additional protective measures, there is always
a residual risk of injury during work.

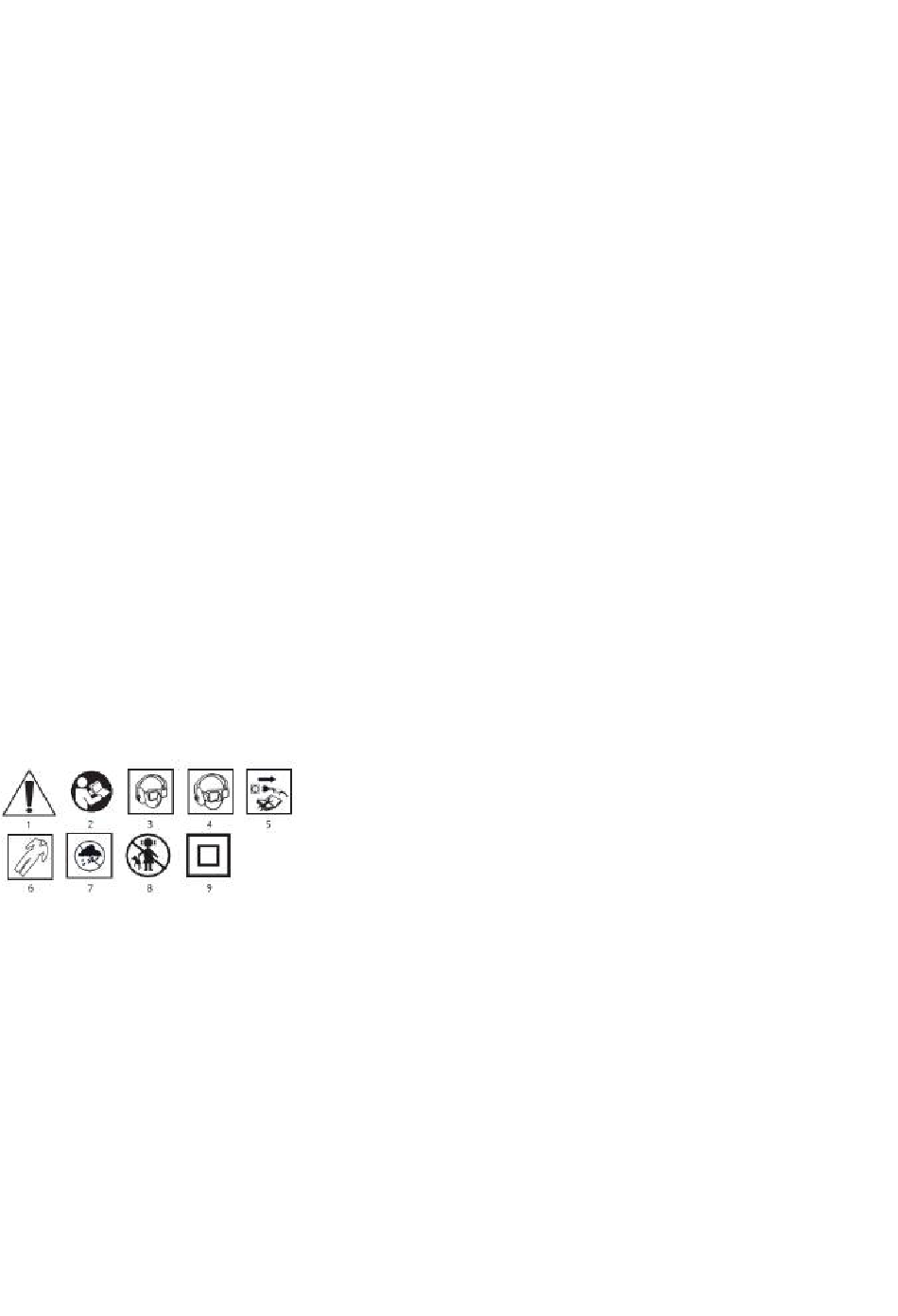

EXPLANATION OF THE PICTOGRAMS USED.
1.
Caution Take special precautions
2.
Read the operating instructions, observe the warnings and
safety conditions contained therein!
3.
Wear personal protective equipment (safety goggles, ear
protection)
4.
Wear a dust mask
5.
Disconnect the power cord before servicing or repairing.
6.
Use protective clothing
7.
Protect against moisture
8.
Keep children away from the tool
9.
Second class insulated tool
CONSTRUCTION AND APPLICATION
The plaster grinder is a hand-held power tool driven by a single-
phase commutator motor. The sander is designed for surface
dry finishing sanding of walls and other plastered surfaces.
The grinder's movable working disc guard fits perfectly to any
wall surface. The design of the sander has a system that allows
it to be connected to an external dust extraction system (e.g. dust
bag, hoover), which must be connected during operation. Its
areas of use are the execution of renovation and construction
work and any work in the field of independent amateur activity (DIY).
The sander should only be used with a dust extraction
system connected, e.g. a dust bag or a workshop
hoover suitable for extracting gypsum dust.
DESCRIPTION OF THE GRAPHIC PAGES
The numbering below refers to the components of the unit shown
on the graphic pages of this manual.
1.
Extension spigot
2.
Extension handle
3.
Grinder extension tube
4.
Power cable
5.
Extension block
6.
Main handle
7.
Switch
8.
Speed controller
9.
Grinder folding joint
10.
Additional front handle
11.
Flexible dust extraction pipe
12.
Engine
13.
Suction control knob
14.
LED lighting
15.
Grinding wheel cover
* There may be differences between the drawing and the product.
EQUIPMENT AND ACCESSORIES
1.
Grinder
2.
Flexible suction hose
3.
Rubber pads
4.
Extra length handle
5.
Sanding sheets (various gradations)
6.
Special hexagonal spanner
7.
Dust bag
8.
Technical documentation
PREPARATION FOR WORK
FITTING AN AUXILIARY HANDLE
It is recommended to use an auxiliary handle for the grinder. The auxiliary
handle is installed in the hole fig. C3 in the grinder handle fig. C1. The
extension is locked in place by locking the extension with the locking mechanism fig.
C2. Hold the sander with both hands when working (also using the auxiliary
handle) there is less risk of losing control of the machine.
SANDING PAPER ATTACHMENT
The sander has a working disc with so-called Velcro, which allows the sanding
paper to be changed easily and quickly in both sanding disc shapes.
• Bring the sandpaper close to the sanding disc so that its holes align with
those of the sanding disc Fig. E2 and press down to ensure effective
dust extraction .
• To remove the sandpaper, tilt it on one side and then pull .
Use perforated abrasive paper so that the dust can reach the
dust extraction system through the holes in the working disc.
Before changing the abrasive paper each time, clean the work
disc by removing dust and any debris from the disc with a
brush or brush, for example.
DUST EXTRACTION
• Push the end of the suction hose onto the dust extraction nozzle fig.
C3 or fig. A1 if using an extension.
• Connect the other end of the supplied suction hose to a suction
system such as a workshop hoover or dust bag (supplied).
LIFT FORCE ADJUSTMENT
The suction force is adjusted by turning the knob to the left or right,
fig. E1.
OPERATION / SETTINGS
The mains voltage must correspond to the voltage indicated
on the grinder's rating plate.
• Switching on - press the switch button fig. A7. Switching off -
release pressure on the switch button fig. A7.
Switch lock (continuous operation)
8
1 pc.
1 pc.
2 pcs.
1 pc.
6 pcs.
1 pc.
1 pc.
3 pcs.
