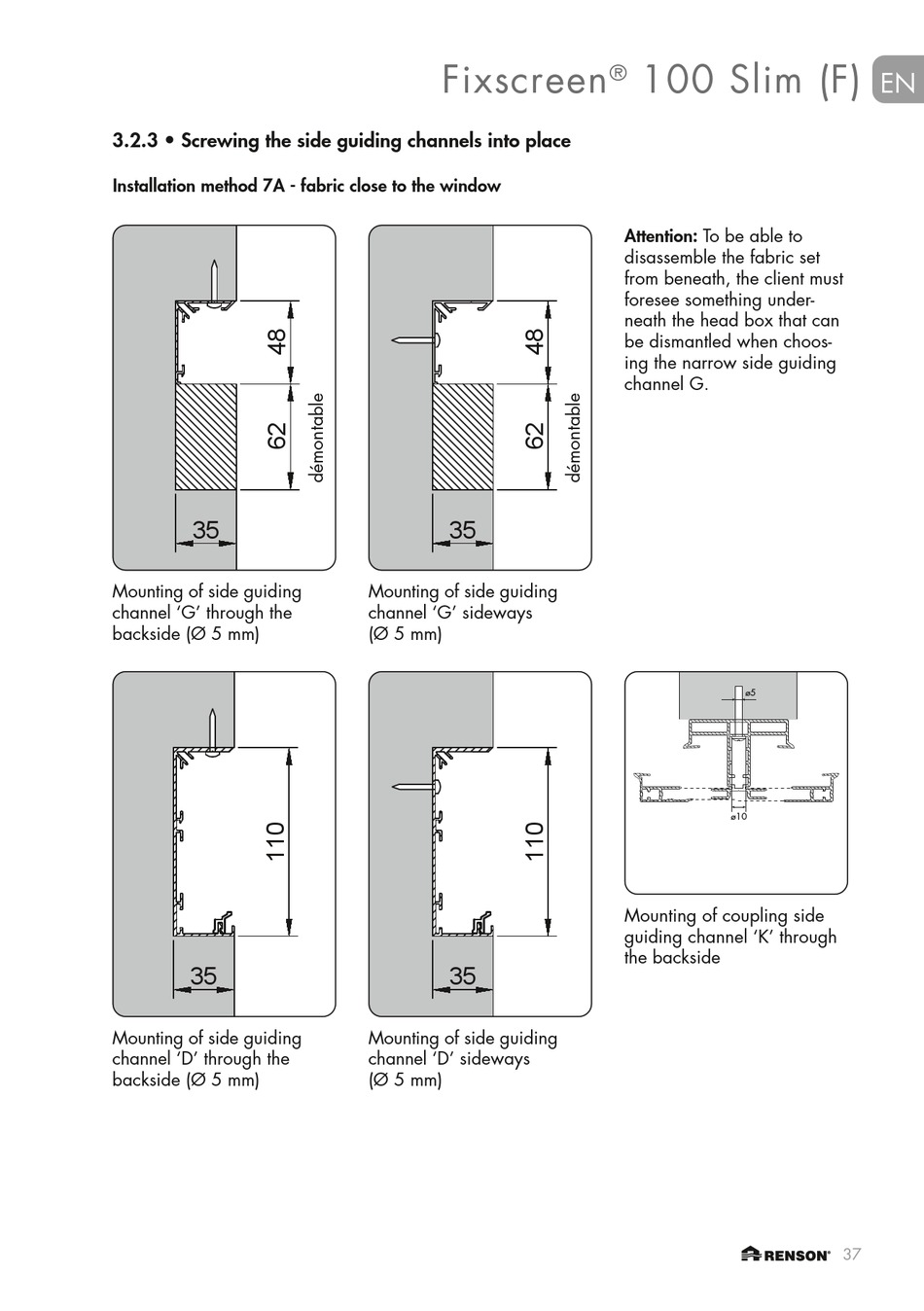

3.2.3 • Screwing the side guiding channels into place
Installation method 7A - fabric close to the window
35
Mounting of side guiding
channel 'G' through the
backside (Ø 5 mm)
35
35
Mounting of side guiding
channel 'D' through the
backside (Ø 5 mm)
35
Fixscreen
35
Mounting of side guiding
channel 'G' sideways
(Ø 5 mm)
35
Mounting of side guiding
channel 'D' sideways
(Ø 5 mm)
35
100 Slim (F)
®
Attention: To be able to
disassemble the fabric set
from beneath, the client must
foresee something under-
neath the head box that can
be dismantled when choos-
ing the narrow side guiding
channel G.
35
ø5
ø10
Mounting of coupling side
guiding channel 'K' through
the backside
35
35
en
37
