Fixscreen
en
➎
Connect&Go version 1
Thanks to the Connect&Go connection, the fabric set can be (un)installed easily and safely.
34
100 Slim (F)
®
Connect&Go version 3
Tip:
For screens wider than 4.5 m, the fabric can be clicked out of
the fabric tube during installation using the click profile.
The fabric can also easily be replaced with this method for
fabric changes.
Info:
For defective motors with a fully retracted bottom bar
and where the screen is of a height of up to 2.8 m, it
may be impossible to remove the fabric without cutting due to
the diameter of the fabric set.
However, if the fabric set can be removed, the fabric guide
profile must be removed first. For easy removal, start at the
side of the profile.

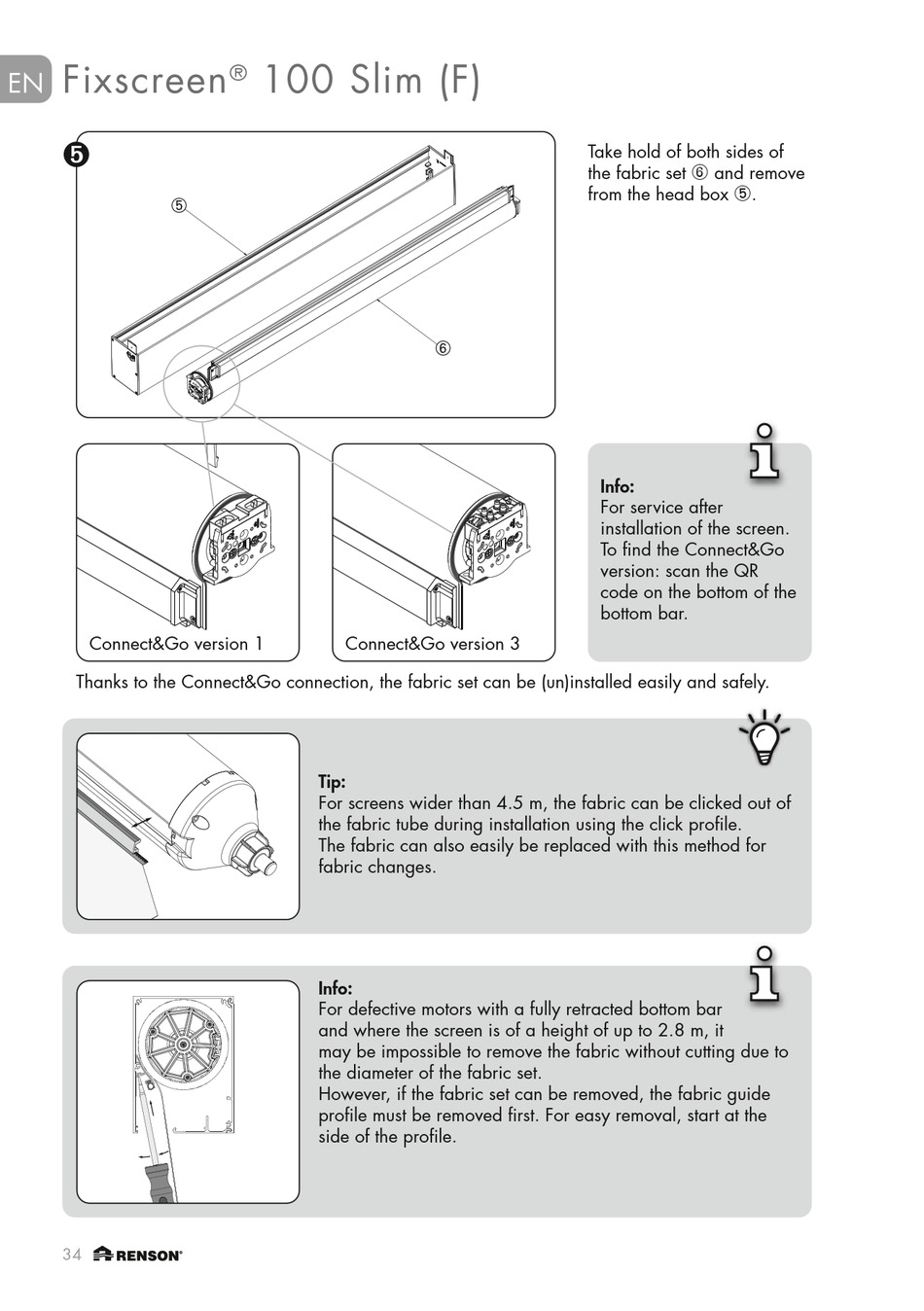

Take hold of both sides of
the fabric set and remove
➅
from the head box .
➄
Info:
For service after
installation of the screen.
To find the Connect&Go
version: scan the QR
code on the bottom of the
bottom bar.
