SoFlow SO2 ZERO Originalbetriebsanleitung Seite 17

Assemble Handle bar
1. Connect the two cable between handlebar and frontbar.
2. Place the console into the top of the frontbar. Make sure that the contact poles
between the handlebar and the frontbar are well interlocked.
3. Once the console is attached, use the Allen wrench to tighten all four screws.
4 Test the functionality of your SO2 ZERO after the assembly
Folding / Putting away your SO2 ZERO
Before folding the SO2 ZERO, make sure that it is powered off. Hold the front bar, while you pull the safety lock. At the same time open the
big safety latch completely to the front. Proceed to fold down the Steering column and fix it to the rear end of the foot rest and until the
folding hook is hooked in into the rear buckle.
The SO2 ZERO has been successfully folded once you hear a clicking sound.
copyright by www.soflow.com

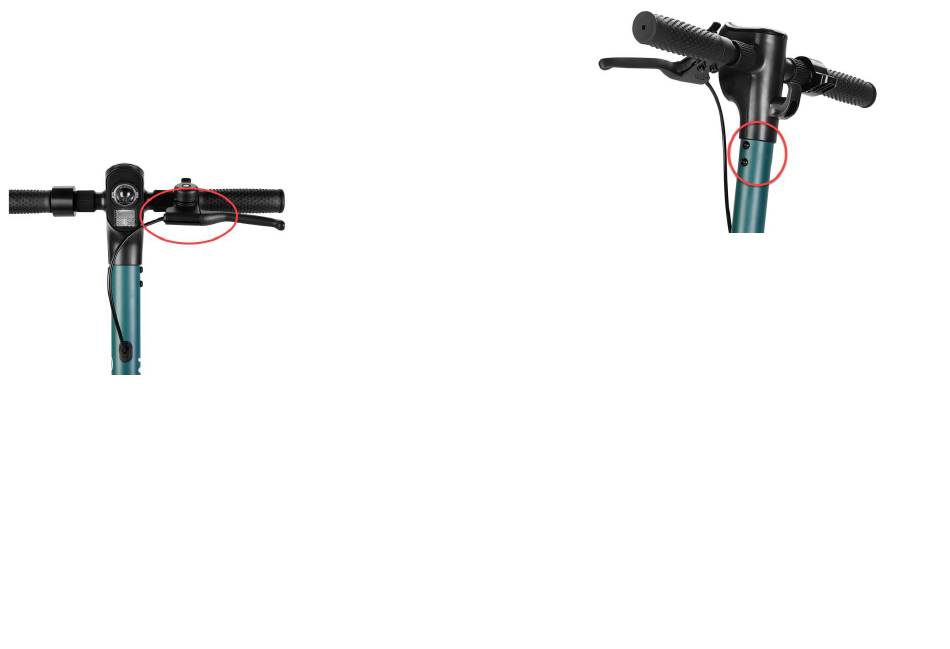

Hook in brake cable
After unfolding your SO2 ZERO
and assemble the handle bar, you
need to hook the brake cable for
the rear drum brake to the hook and to the brake lever. Now route the brake cable along
the handlebar through the guide to the brake lever. Now tighten the brake lever and fix
the end of the cable in the slot of the brake lever and push the cable forward into the
lever. If the connection has been adjusted too tightly and cannot slide to the front end
of the brake lever, then the brake mechanism must be adjusted (See Instructions on
adjusting the drum brake).
17
