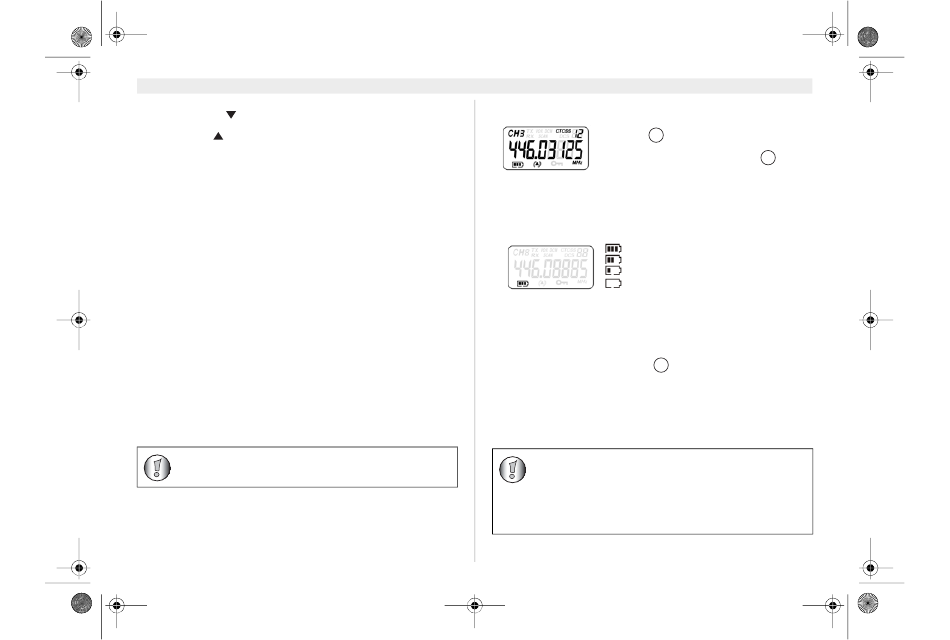

TT 9500 Airsoft Edition.book Page 6 Monday, January 14, 2013 4:28 PM
6
9. Speaker
10. Down button
– Select previous value in the menu
11. Up button
– Select next value in the menu
12. PTT-button
13. Antenna
12 LCD display information
See folded cover page - illustration 2
14. CTCSS indication
15. DCS indication
16. CTCSS/DCS value
17. Frequency indication in MHz
18. MHz indication
19. Keypad lock icon
20. Call receive type indication
21. Battery level indication
22. Channel number
23. RX icon
– Displayed when receiving
24. TX icon
– Displayed when transmitting
25. VOX indication
26. Scanning indication
27. Dual channel mode (DCM) indication
13 Using the Twintalker 9500 (RC-6406)
The display illustrations in next pages only show the
icons or display informations of the functions that are
explained in the text.
Twintalker 9500 (RC-6406) Airsoft Edition
13.1 Switching On/Off the PMR radio
• Turn the "On-Off/Volume
Knob" clockwise. A clicking sound will
1
indicate that the PMR radio is switched on.
• Turn the "On-Off/Volume Knob"
counter clockwise. The clicking sound will
indicate that the PMR radio is switched off.
13.2 Battery Charge Level/Low Battery Indication
The battery charge level is indicated by the number of squares present
inside the battery icon on the LCD Screen.
Battery Full
Battery 2/3 charged
Battery 1/3 charged
Battery empty
When the battery charge level is low, the battery icon will flash and a beep
will be heard to indicate that the batteries need to be replaced or
recharged.
13.3 Adjusting Speaker Volume
• Turn the "On-Off/Volume Knob"
1
speaker volume.
• Turn counter-clockwise to lower the volume.
13.4 Receiving a Signal
The unit is continuously in the receive mode when the unit is switched ON
and not transmitting.
In order for other people to receive your transmission,
they must also be on the same channel and have set the
same CTCSS code or DCS code.
Changing Channels" and "13.7 CTCSS (Continious Tone
Coded Squelch System) / DCS (Digital Coded Squelch)".
Either CTCSS or DCS can be used but never both at the
same time.
fully
1
clockwise to increase the
( See chapter "13.6
