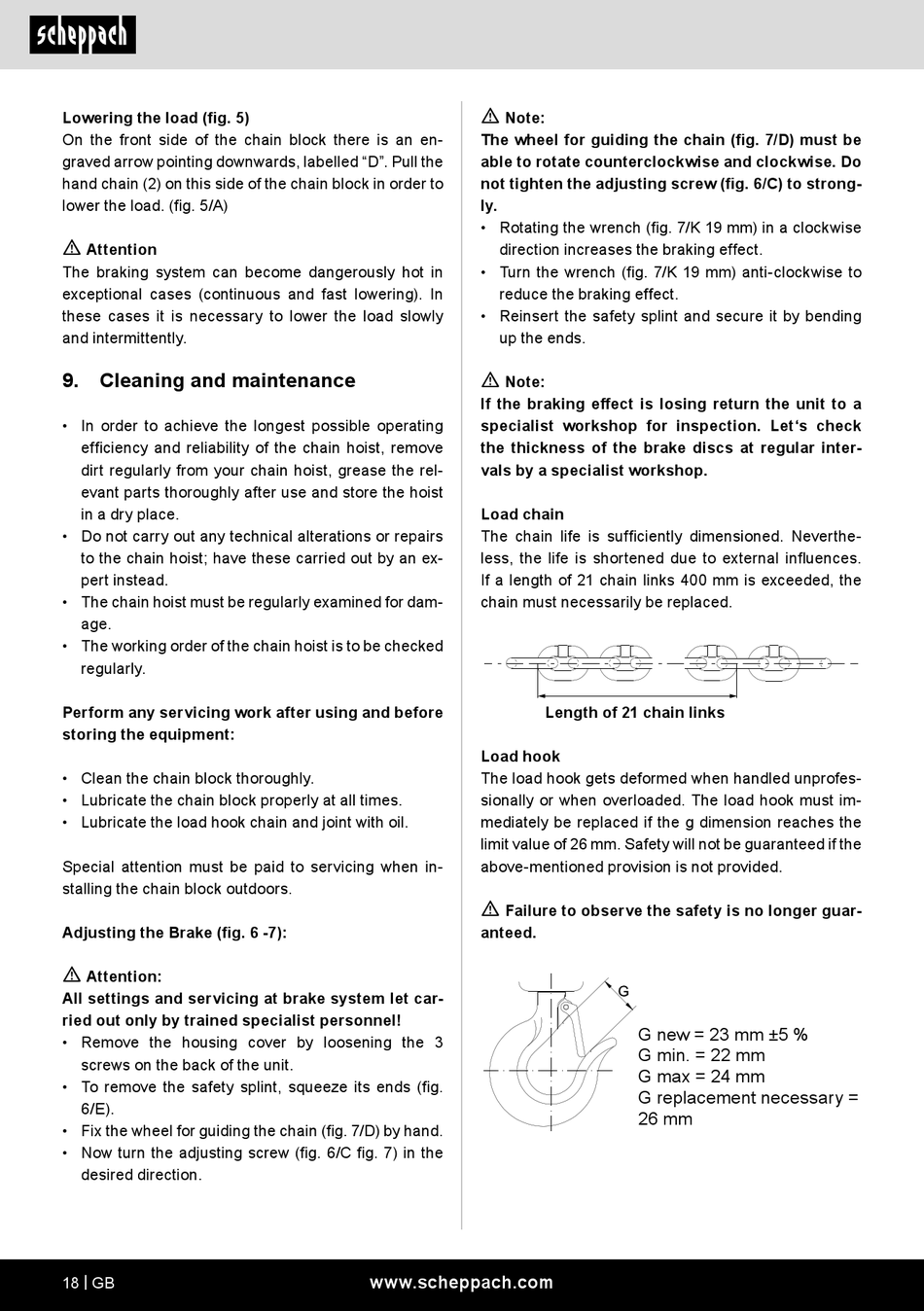

Lowering the load (fig. 5)
On the front side of the chain block there is an en-
graved arrow pointing downwards, labelled "D". Pull the
hand chain (2) on this side of the chain block in order to
lower the load. (fig. 5/A)
m
Attention
The braking system can become dangerously hot in
exceptional cases (continuous and fast lowering). In
these cases it is necessary to lower the load slowly
and intermittently.
9.

Cleaning and maintenance

• In order to achieve the longest possible operating
efficiency and reliability of the chain hoist, remove
dirt regularly from your chain hoist, grease the rel-
evant parts thoroughly after use and store the hoist
in a dry place.
• Do not carry out any technical alterations or repairs
to the chain hoist; have these carried out by an ex-
pert instead.
• The chain hoist must be regularly examined for dam-
age.
• The working order of the chain hoist is to be checked
regularly.
Perform any servicing work after using and before
storing the equipment:
• Clean the chain block thoroughly.
• Lubricate the chain block properly at all times.
• Lubricate the load hook chain and joint with oil.
Special attention must be paid to servicing when in-
stalling the chain block outdoors.
Adjusting the Brake (fig. 6 -7):
m
Attention:
All settings and servicing at brake system let car-
ried out only by trained specialist personnel!
• Remove the housing cover by loosening the 3
screws on the back of the unit.
• To remove the safety splint, squeeze its ends (fig.
6/E).
• Fix the wheel for guiding the chain (fig. 7/D) by hand.
• Now turn the adjusting screw (fig. 6/C fig. 7) in the
desired direction.
18 | GB
m
Note:
The wheel for guiding the chain (fig. 7/D) must be
able to rotate counterclockwise and clockwise. Do
not tighten the adjusting screw (fig. 6/C) to strong-
ly.
• Rotating the wrench (fig. 7/K 19 mm) in a clockwise
direction increases the braking effect.
• Turn the wrench (fig. 7/K 19 mm) anti-clockwise to
reduce the braking effect.
• Reinsert the safety splint and secure it by bending
up the ends.
m
Note:
If the braking effect is losing return the unit to a
specialist workshop for inspection. Let's check
the thickness of the brake discs at regular inter-
vals by a specialist workshop.
Load chain
The chain life is sufficiently dimensioned. Neverthe-
less, the life is shortened due to external influences.
If a length of 21 chain links 400 mm is exceeded, the
chain must necessarily be replaced.
Load hook
The load hook gets deformed when handled unprofes-
sionally or when overloaded. The load hook must im-
mediately be replaced if the g dimension reaches the
limit value of 26 mm. Safety will not be guaranteed if the
above-mentioned provision is not provided.
m
Failure to observe the safety is no longer guar-
anteed.
