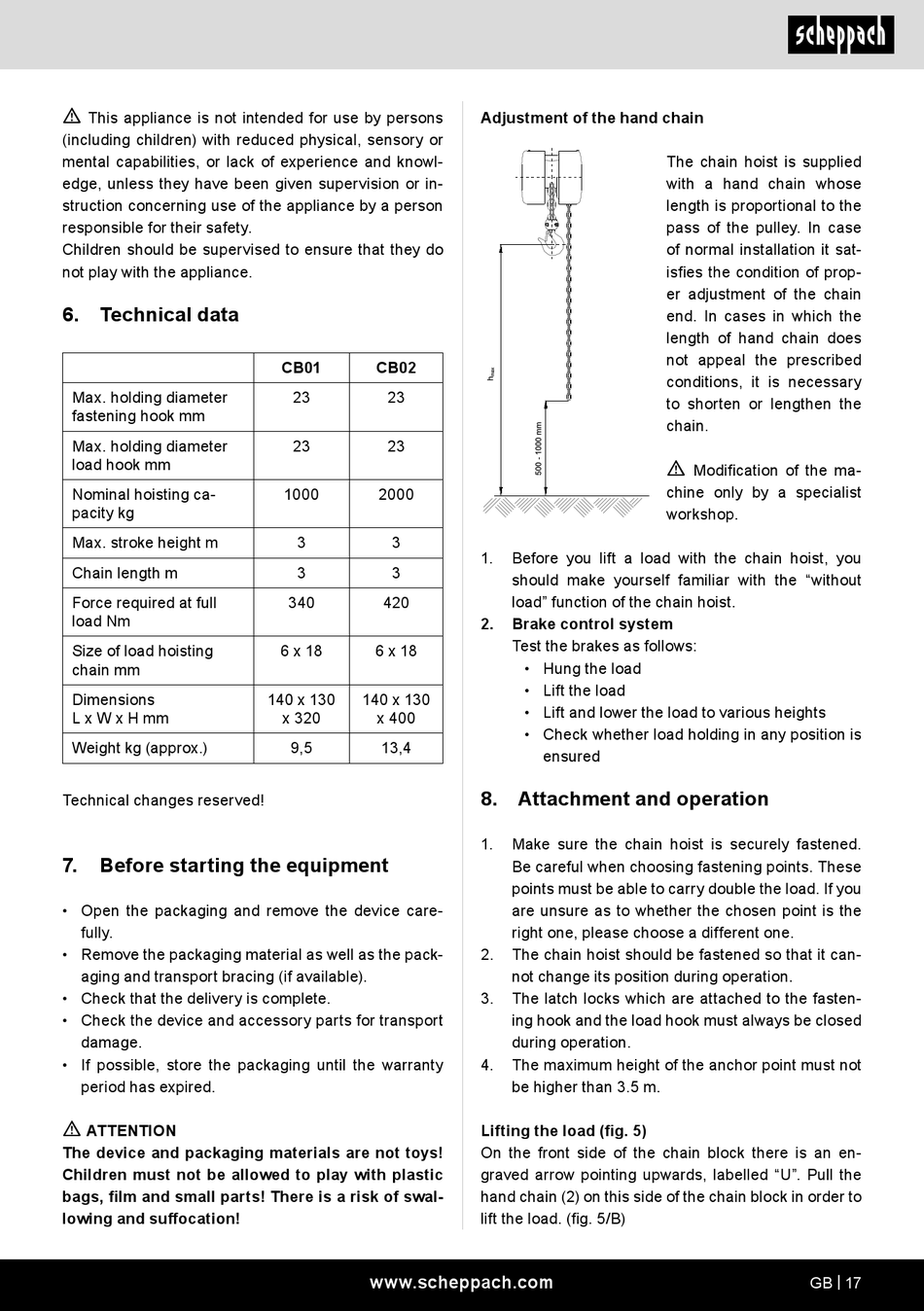

This appliance is not intended for use by persons
(including children) with reduced physical, sensory or
mental capabilities, or lack of experience and knowl-
edge, unless they have been given supervision or in-
struction concerning use of the appliance by a person
responsible for their safety.
Children should be supervised to ensure that they do
not play with the appliance.

6. Technical data

Max. holding diameter
fastening hook mm
Max. holding diameter
load hook mm
Nominal hoisting ca-
pacity kg
Max. stroke height m
Chain length m
Force required at full
load Nm
Size of load hoisting
chain mm
Dimensions
L x W x H mm
Weight kg (approx.)
Technical changes reserved!
7.

Before starting the equipment

• Open the packaging and remove the device care-
fully.
• Remove the packaging material as well as the pack-
aging and transport bracing (if available).
• Check that the delivery is complete.
• Check the device and accessory parts for transport
damage.
• If possible, store the packaging until the warranty
period has expired.
m
ATTENTION
The device and packaging materials are not toys!
Children must not be allowed to play with plastic
bags, film and small parts! There is a risk of swal-
lowing and suffocation!
CB01 CB02
23 23
23 23
1000 2000
3 3
3 3
340 420
6 x 18 6 x 18
140 x 130 140 x 130
x 320 x 400
9,5 13,4
www.scheppach.com
Adjustment of the hand chain
1. Before you lift a load with the chain hoist, you
should make yourself familiar with the "without
load" function of the chain hoist.
2. Brake control system
Test the brakes as follows:
• Hung the load
• Lift the load
• Lift and lower the load to various heights
• Check whether load holding in any position is
ensured

8. Attachment and operation

1. Make sure the chain hoist is securely fastened.
Be careful when choosing fastening points. These
points must be able to carry double the load. If you
are unsure as to whether the chosen point is the
right one, please choose a different one.
2. The chain hoist should be fastened so that it can-
not change its position during operation.
3. The latch locks which are attached to the fasten-
ing hook and the load hook must always be closed
during operation.
4. The maximum height of the anchor point must not
be higher than 3.5 m.
Lifting the load (fig. 5)
On the front side of the chain block there is an en-
graved arrow pointing upwards, labelled "U". Pull the
hand chain (2) on this side of the chain block in order to
lift the load. (fig. 5/B)
The chain hoist is supplied
with a hand chain whose
length is proportional to the
pass of the pulley. In case
of normal installation it sat-
isfies the condition of prop-
er adjustment of the chain
end. In cases in which the
length of hand chain does
not appeal the prescribed
conditions, it is necessary
to shorten or lengthen the
chain.
m
Modification of the ma-
chine only by a specialist
workshop.
