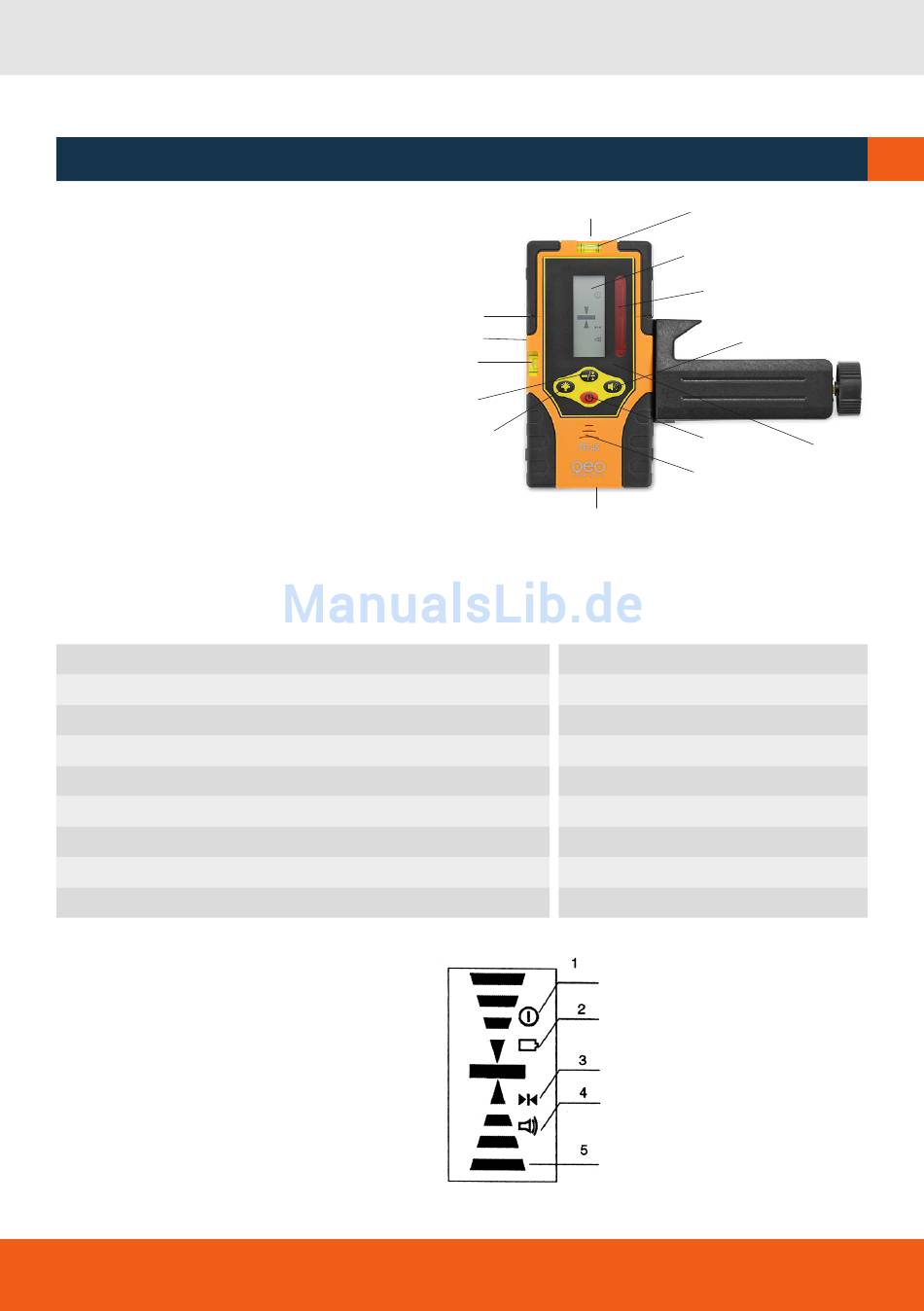

RECEIVER FR 45 / FRG 45-GREEN
FEATURES
1. Vial (2)
2. Display
3. Reference mark
4. Receiving window
5. ON / OFF switch
6. Loudspeaker
7 . Battery compartment (reverse side)
8. Sound on / off
9. Accuracy coarse / normal / fine
10. Light on / off
11. Magnets (2)
12. 1/4"-mounting hole for clamp (reverse side)
SUPPLIED WITH
Receiver FR 45 / FRG 45-Green, battery, clamp, user manual
Technical Data
Indication
Accuracy coarse
Accuracy normal
Accuracy fine
Tones
Operating time
Power supply
Wave length red diode
Wave length green diode
SYMBOLS
1. Power indicator
2. Low battery indicator
3. Detection indicator
4. Sound indicator
5. Detected position indicator
11
3
11
1
9
10
7
Front display
± 10 mm
± 4 mm
± 2 mm
3
400h
1 x 9V
635 nm
532 nm
1
2
4
8
5
12
6
