PRODUCT IDENTIFICATION

A.
B.
C.
D.
E.
F.
G.
Figur 3
L.
M.
Figur 4

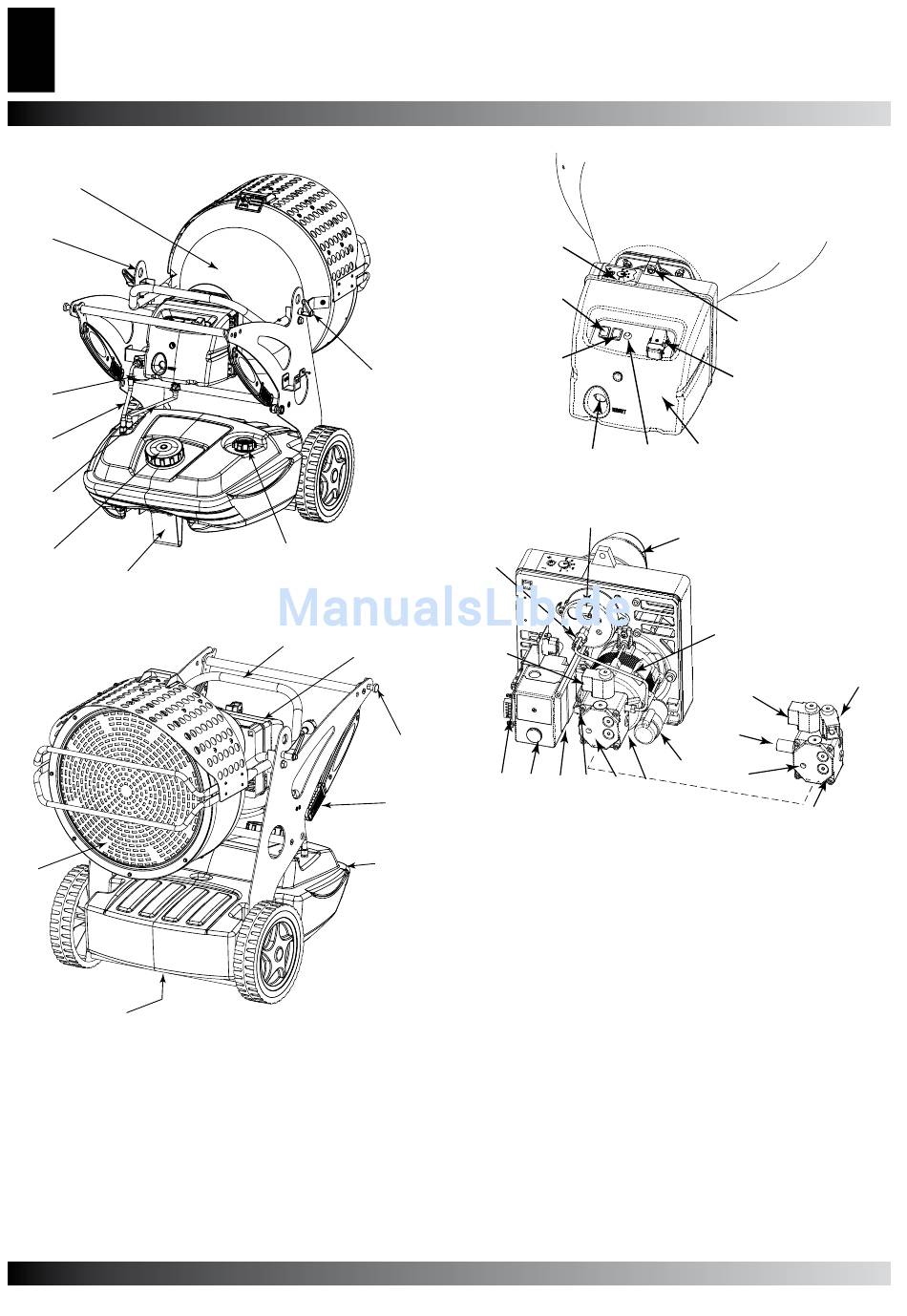

A. Combustion chamber, B. Hole for raising generator, C. Fuel
filter or pre-heated filter (optional), D. Fuel supply, E. Fuel Re-
turn, F. Fuel tank cap, G. Foot or wheel (optional), H. Fuel level
indicator, I. Block of the group combustion, L. Radiant deflector,
M. Fuel drain plug, N. Fuel tank, O. Handle to move the genera-
tor, P. Hinge block, Q. Burner, R. Inclination regulator
I.
H.
R.
Q.
P.
O.
N.
A.
B.
C.
E.
D.
Figur 5 - Function controls
S.
T.
U1.
I.
D.
L. M. N1. O1.
Figur 6 - Components burner
A. Air vent regulator, B. Lighted ON/OFF button, C. ON/OFF
switch depending on power option (XL 9SR), D. RESET But-
ton, E. Power indicator, F. Burner coffer, G. Thermostat plug, H.
Screw for burner block, I. Post-ventilation device, L. Flame con-
trol device, M. Transformer, N1. Pressure regulator (XL 9ER) of
the pump, N2. Pressure regulator (XL 9SR) of the pump, O1.
(XL 9ER) fuel pump, O2. (XL 9SR) fuel pump, P. Condenser, Q.
Motor, R. Burner tube, S. Combustion head regulator , T. Photo-
resistance, U1. Electrovalve 1° flame step (XL 9ER-SR), U2.
Electrovalve 2° flame step (XL 9SR)
H.
G.
F.
R.
Q.
U1.
U2.
N2.
P.
N2.
O2.
